Hardware |
|
|
5G Modem |
Qualcomm Snapdragon X62 5G modem |
|
Main Chipset |
Cortex-A53@1.0GHz, Quad-core IPQ5018 |
|
Communication Standard |
3GPP Release 16 |
|
Access mode |
5G SA/NSA 4G LTE TDD/FDD |
|
Celluar Data rate |
5G SA: 2.4Gbps DL, 900Mbps UL 5G NSA: 3.2Gbps DL, 600Mbps UL 4G DL Cat19 / UL Cat18: 1600Mbps DL, 200Mbps UL |
|
MIMO |
4*4 |
|
Led Indicator |
1pcs |
|

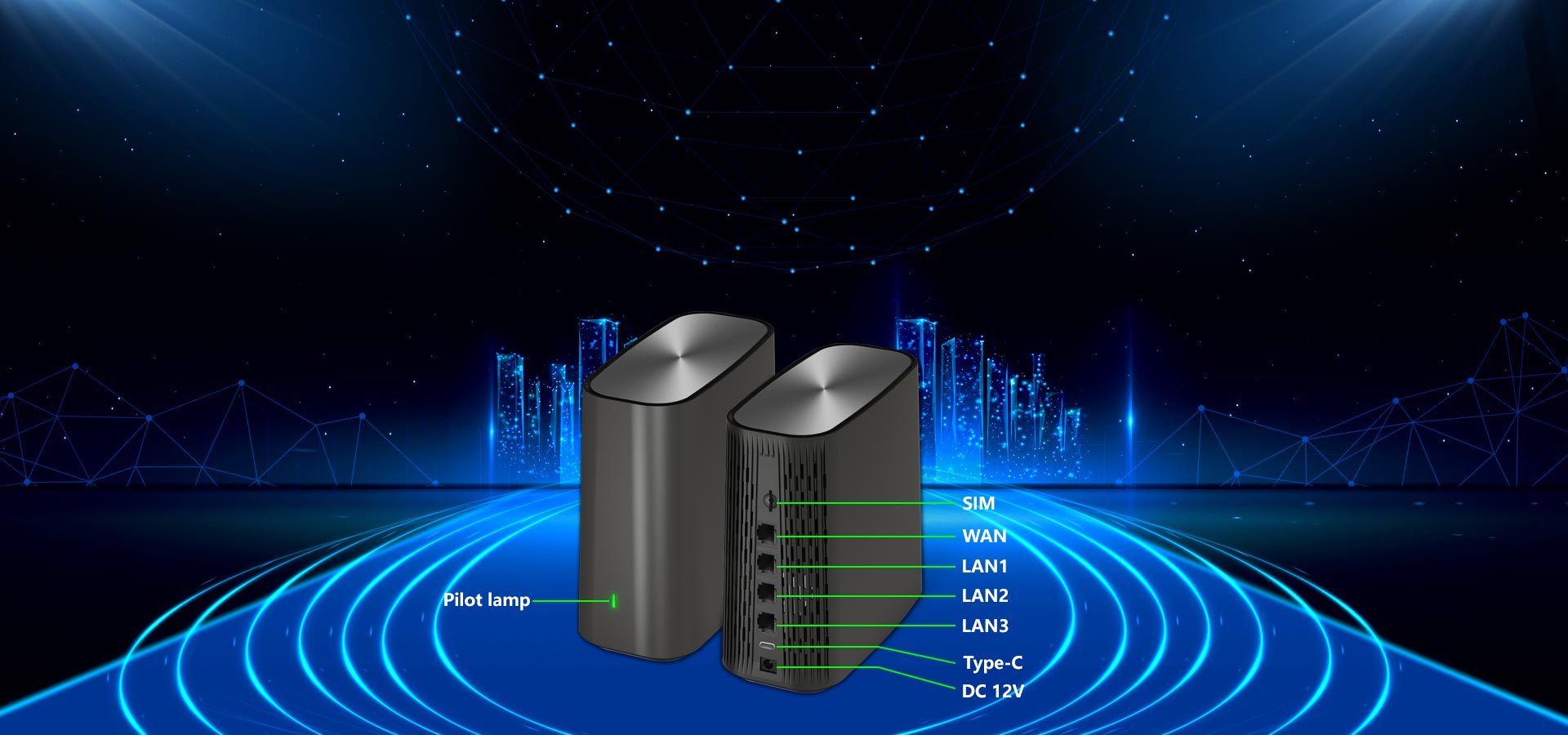

Ports |

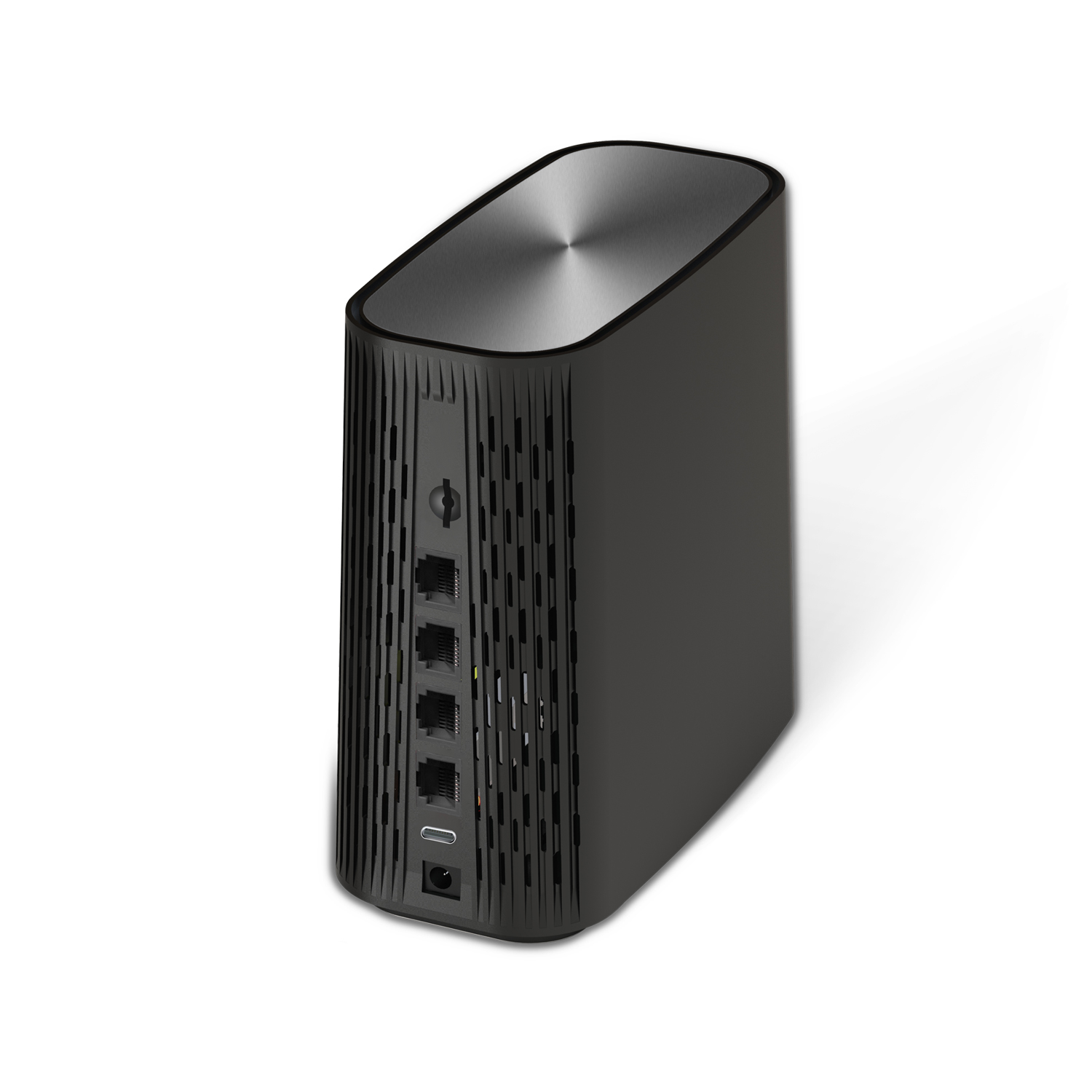

1*SIM card slot, 4*Gigabit Ethernet ports 1* Reset |
|
Reset button |
x 1 |
|
WPS button |
x 1 |
|
Power Supply |
12VDC / 2A |
|
Environment |
Operating temperature: 0℃ ~ 40℃ Storage temperature: -20℃ ~ 70℃ Humidity: 5% ~ 95% (non-condensing) |
|
Wi-Fi Specification |
|
|
Wi-Fi CPU |
QCN6102 |
|
WLAN standard |
IEEE 802.11a/n/ac/ax |
|
2.4GHz Wi-Fi |
2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps) |
|
5GHz Wi-Fi |
2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps) |
|
Dual-band |
2.4GHz, 5GHz |
|

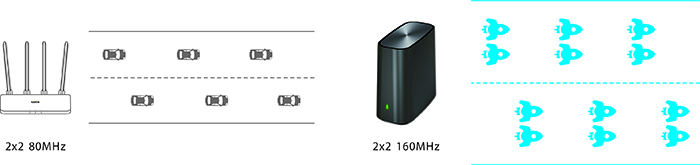

Channel Bandwidth |
20MHz, 40MHz, 80MHz, 160MHz |
|
Modulation |
11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 4QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM. 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM. 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM |
|
Antenna Gain |
2*5dBi |
|
Physical Properties |
|
|
Product color |
Black |
|

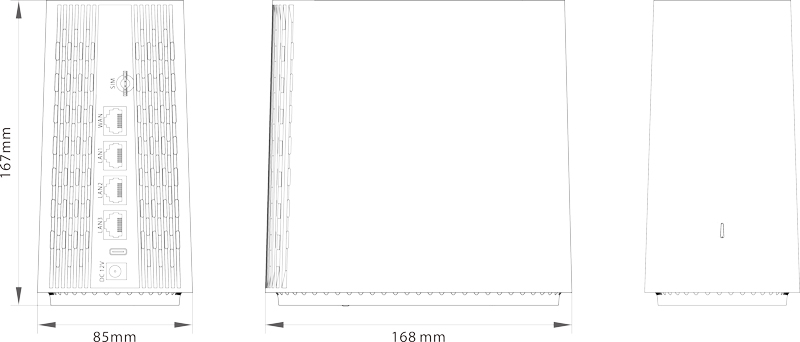

Dimensions |
167x168x85mm |
|
Weight |
500g |
|
Operating Temperature |
0~+40℃ |
|
Storage Temperature |
-20~+70℃ |
|
Humidity |
95% (No-condensing) |
|
Software |
|
|
Language |
Chinese, English,Spanish,Korean,Russian,Portuguese,Hebrew |
|
Network settings |
Dynamic IP mode, PPPoE mode, static IP mode, default dynamic IP |
|
Mobile connection |
5G/4G/3G Mode, search operator, |
|
local area network |
DHCP settings, the default LAN address is 192.168.1.1/24 |
|
WiFi settings |
WiFi switch, name, password, protocol, bandwidth, channel, hidden |
|
Black and white list |
Add (can be imported from user list), delete, move black and white list |
|
WPS |
PIN code access, PBC access |
|
Band Lock |
Lock 5G/LTE connect band |
|
PCI Lock |
Lock 5G/LTE connect cell |
|
APN |
The relevant information of APN will be automatically adapted according to the inserted SIM card |
|
AT Command |
WebGui integrated AT Command interface, you can query and configure module parameters by input AT Command |
|
VPN client |
There are two main types of VPN client configuration: PPTP and L2TP |
|
SMS |
Plug in a usable SIM card, you can realize the functions of sending short messages and receiving short messages |
|
Port Mapping |
Open the local port service so that users can access the internal private network from the Internet |
|
MAC filtering |
Set access and forwarding rules based on MAC |
|
IP filtering |
Set access and forwarding rules based on IP |
|
DDNS |
DDNS maps a user's dynamic IP address to a fixed domain name resolution service, so that users can directly access it through the domain name |
|
SMNP |
Managed device through SNMP. Support SNMPV1,SNMPV2 |
|
TR069 |
The management server in the network management model defined by the TR069 protocol is called an automatic configuration server (ACS), and is responsible for the management of user terminal equipment (CPE). The ACS server can restart, reset, and upgrade CPE according to the TR069 protocol, which can realize the function of managing multiple routers |
|
change Password |
Change the login Password |
|
Backup, upgrade |
Download the backed up configuration, upload the backed up configuration, upgrade firmware |
|
Reboot, Reset |
Contains immediate reboot and reset to factory |
