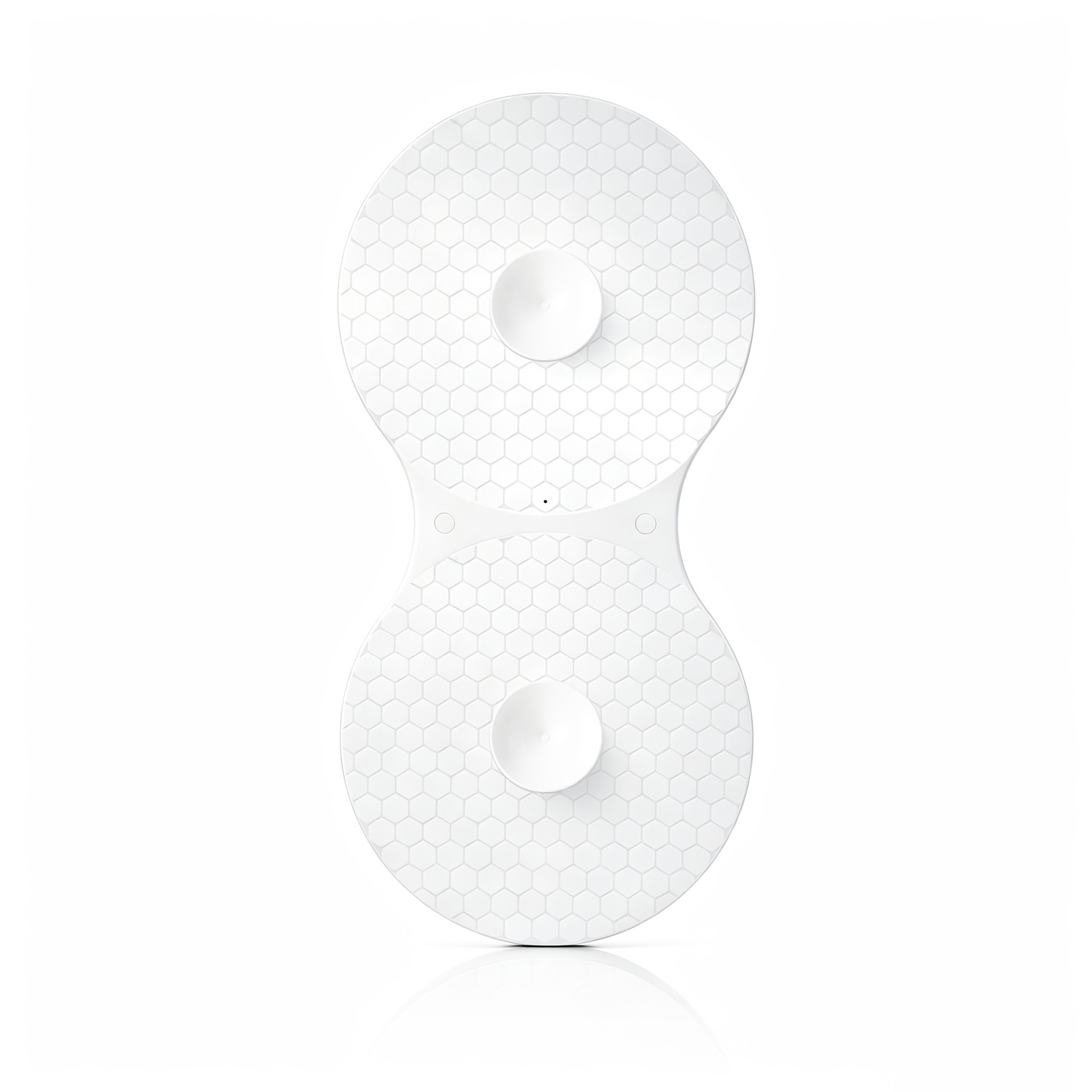

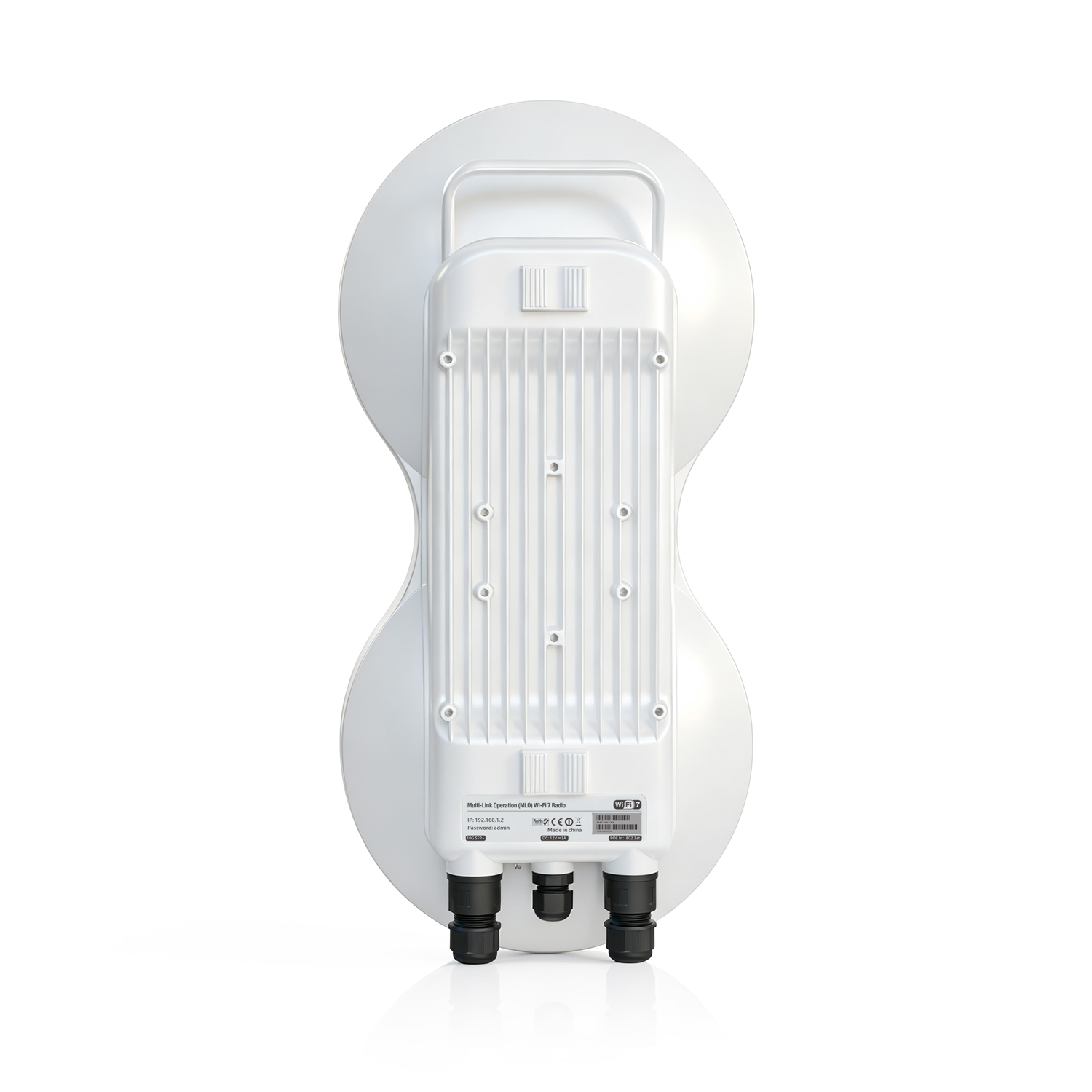

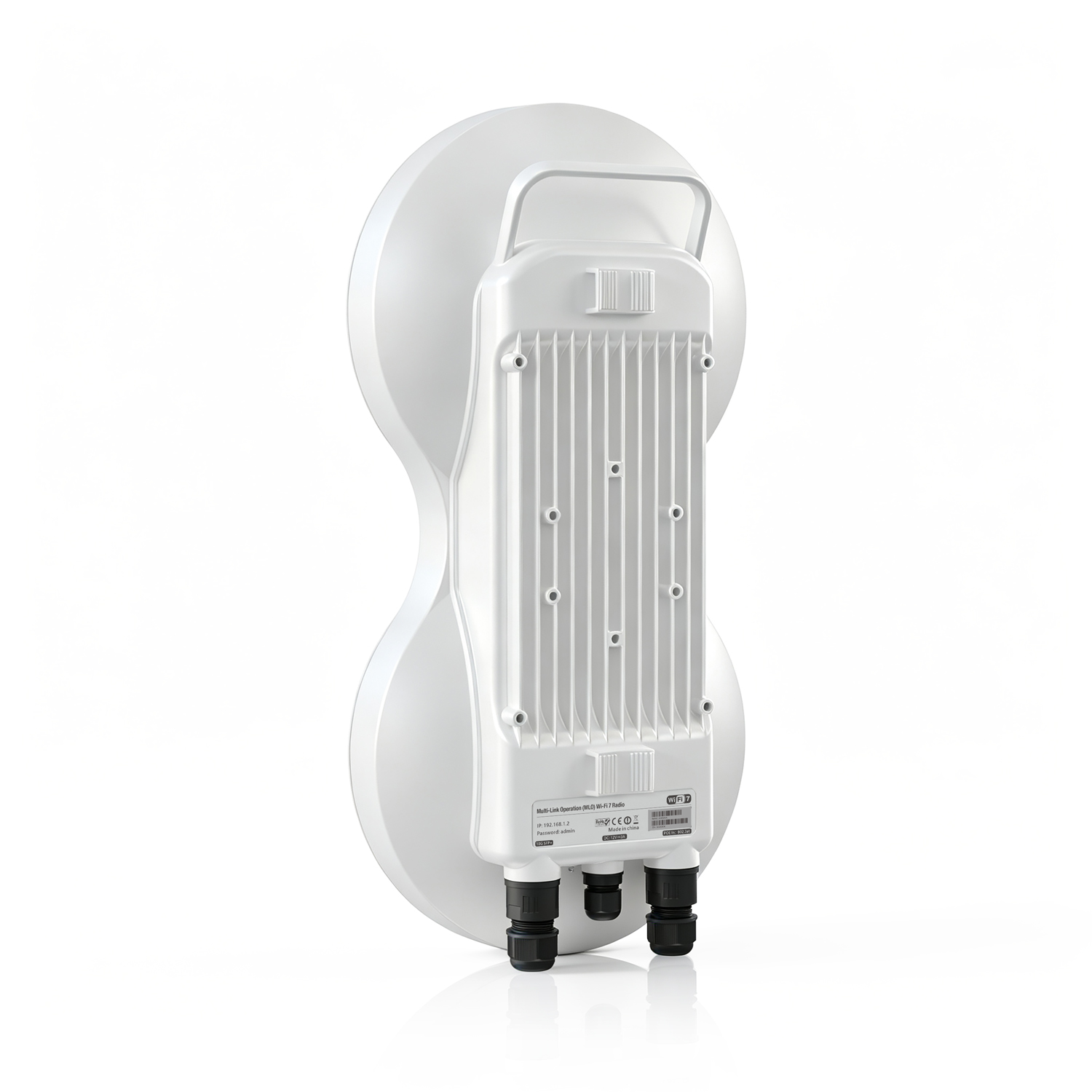

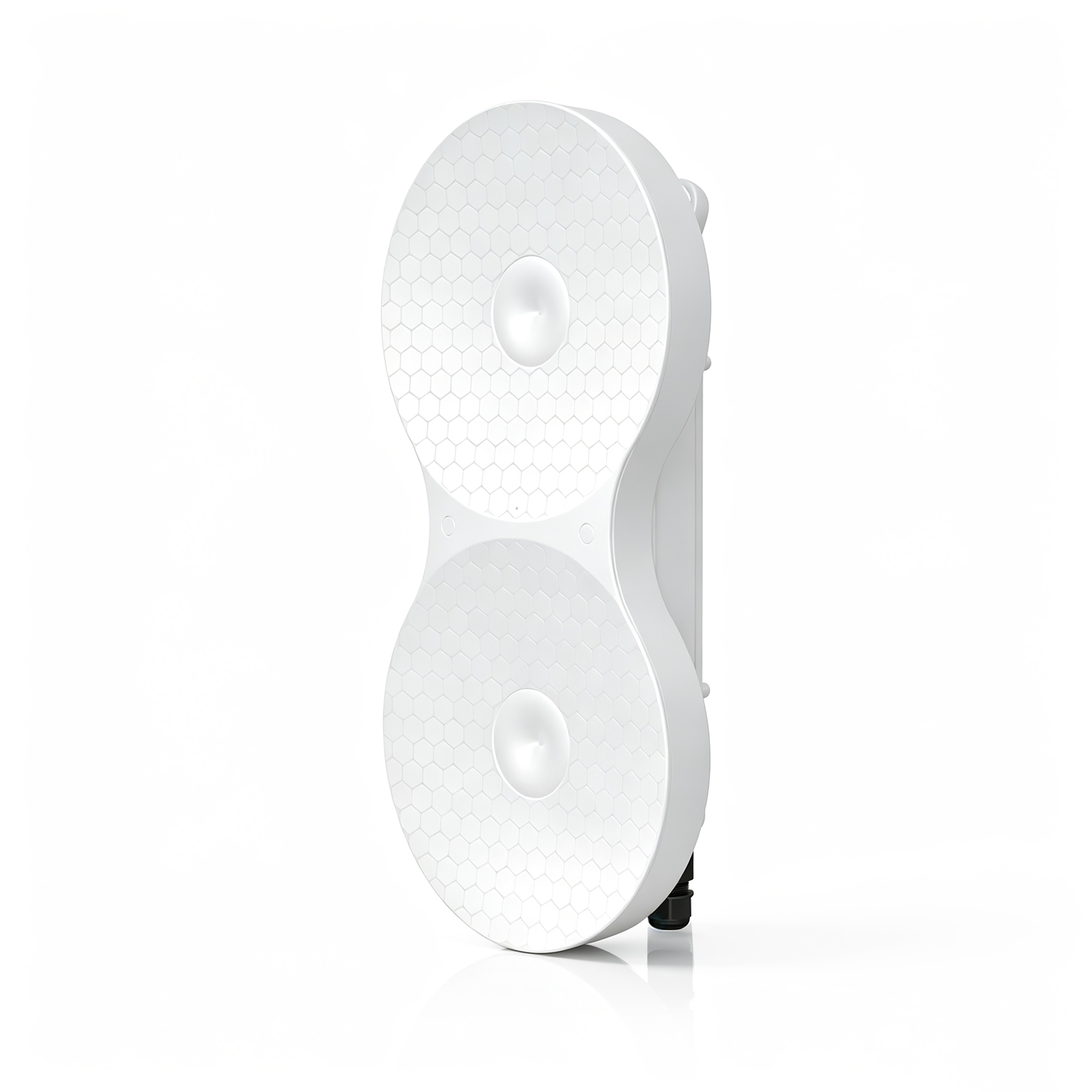

M20

Mechanical

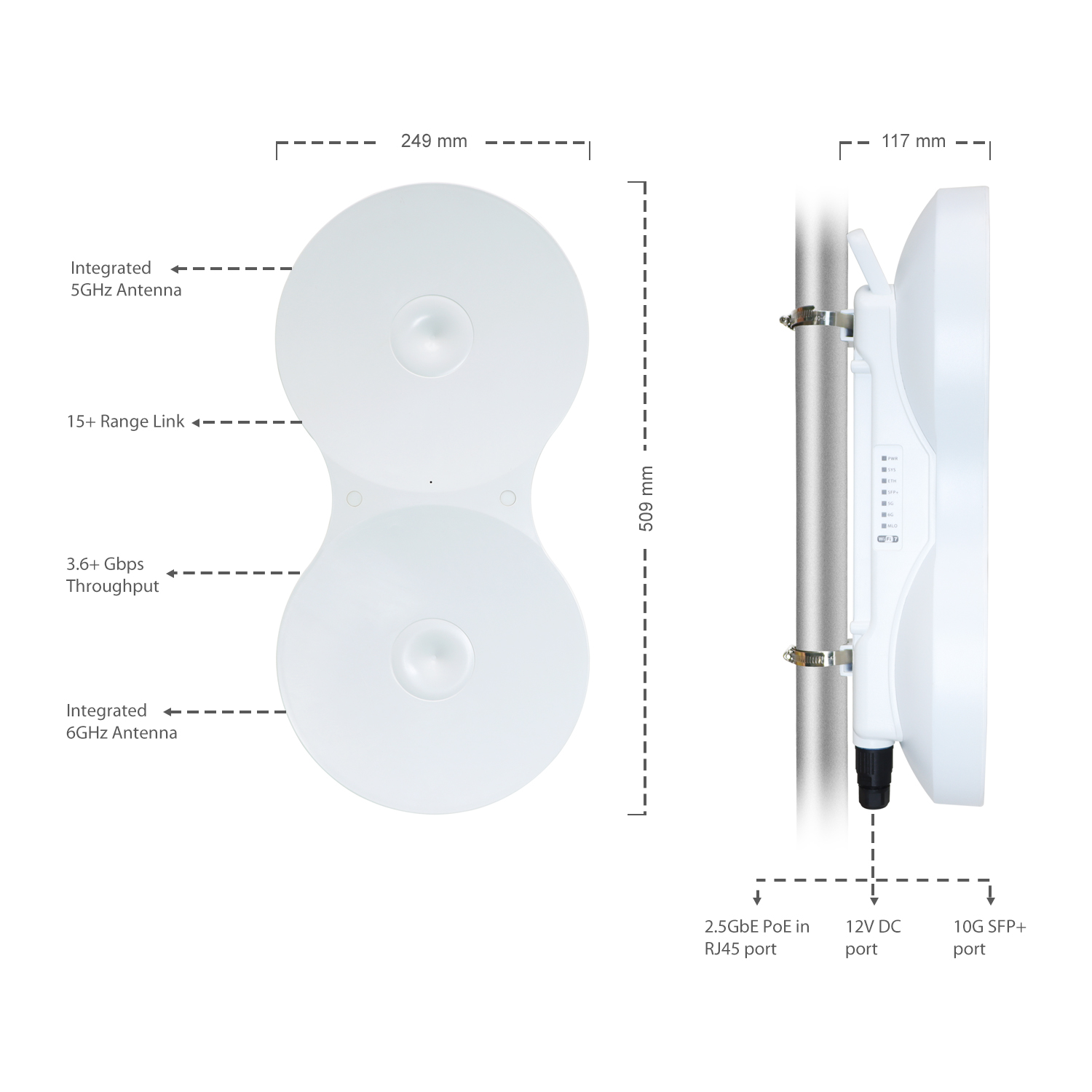

Dimensions

508x248x118mm

Weight

3.8kg

Enclosure materials

Die-cast aluminum

Mount

Requires two standard pole straps formounting to 30 mm (1.2") to 90mm

Wind loading

422 N at 200 km/h (94.86 lbf at 125 mph)

Outdoor Ingress Protection Rating

IP67

Hardware

Processor

Qualcomm Quad A53 @ 1.5GHz

Memory

512MB DDR4

Networking interfaces

1*2.5xGigabit Ethernet

1*10G SFP+ port

Button

Factory reset

RF connections

Internal

Max. power consumption

25W

Power method

802.3af/at

Power supply

48VDC, 1A 2.5 Gigabit PoE adapter (included)

Supported voltage range

48VDC ± 10%

Operating temperature

-40 to 55° C (-40 to 131° F)

Operating Humidity

5 to 100% condensing

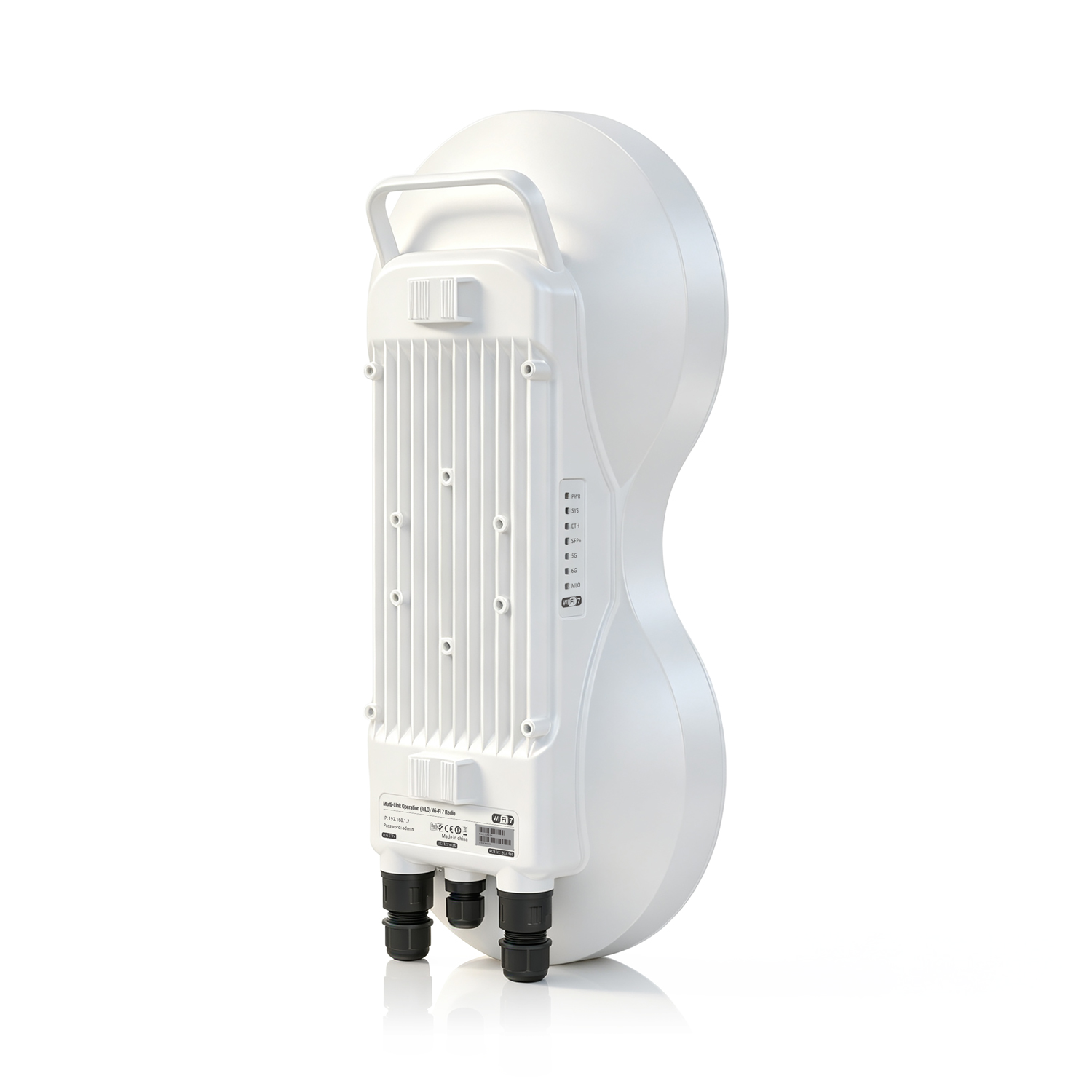

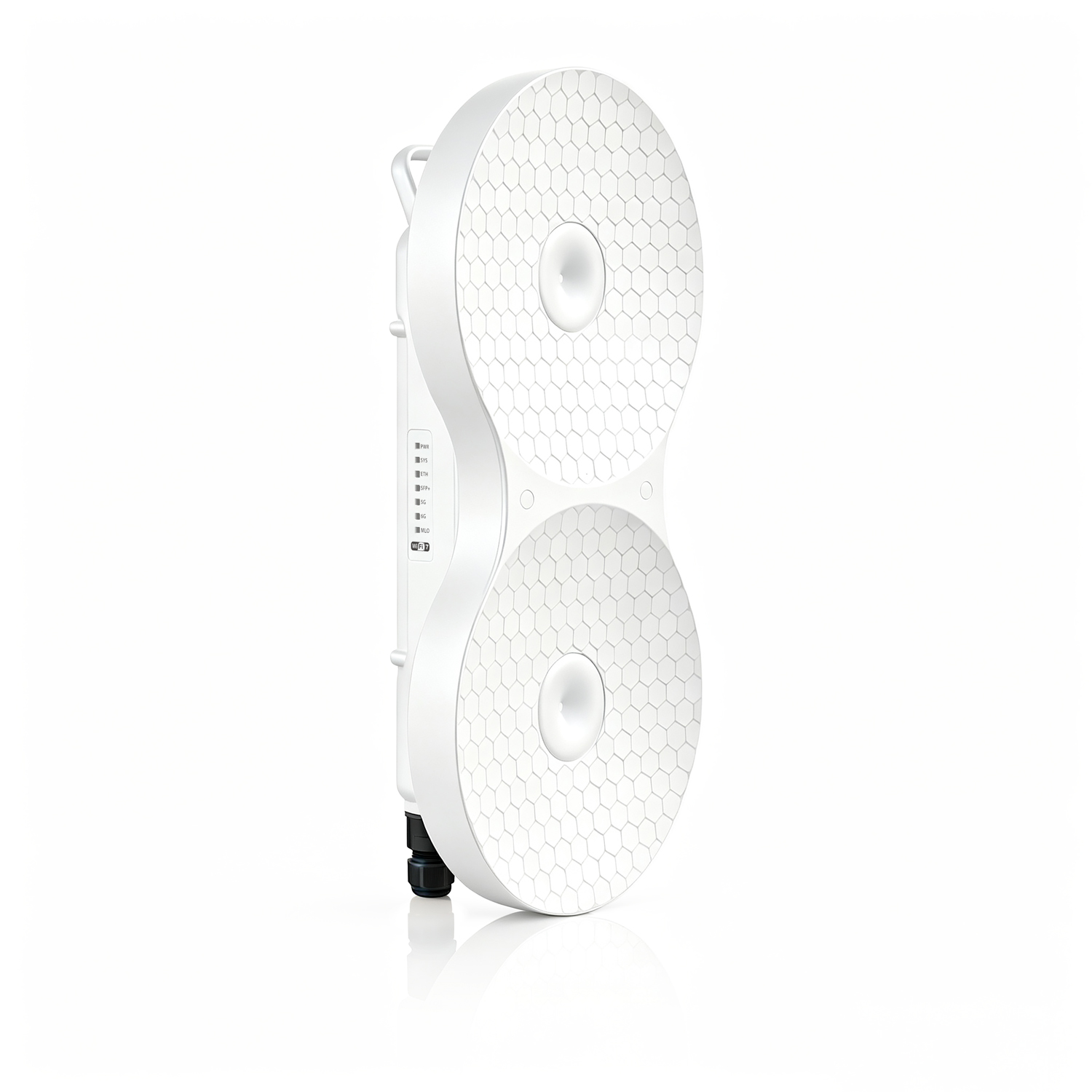

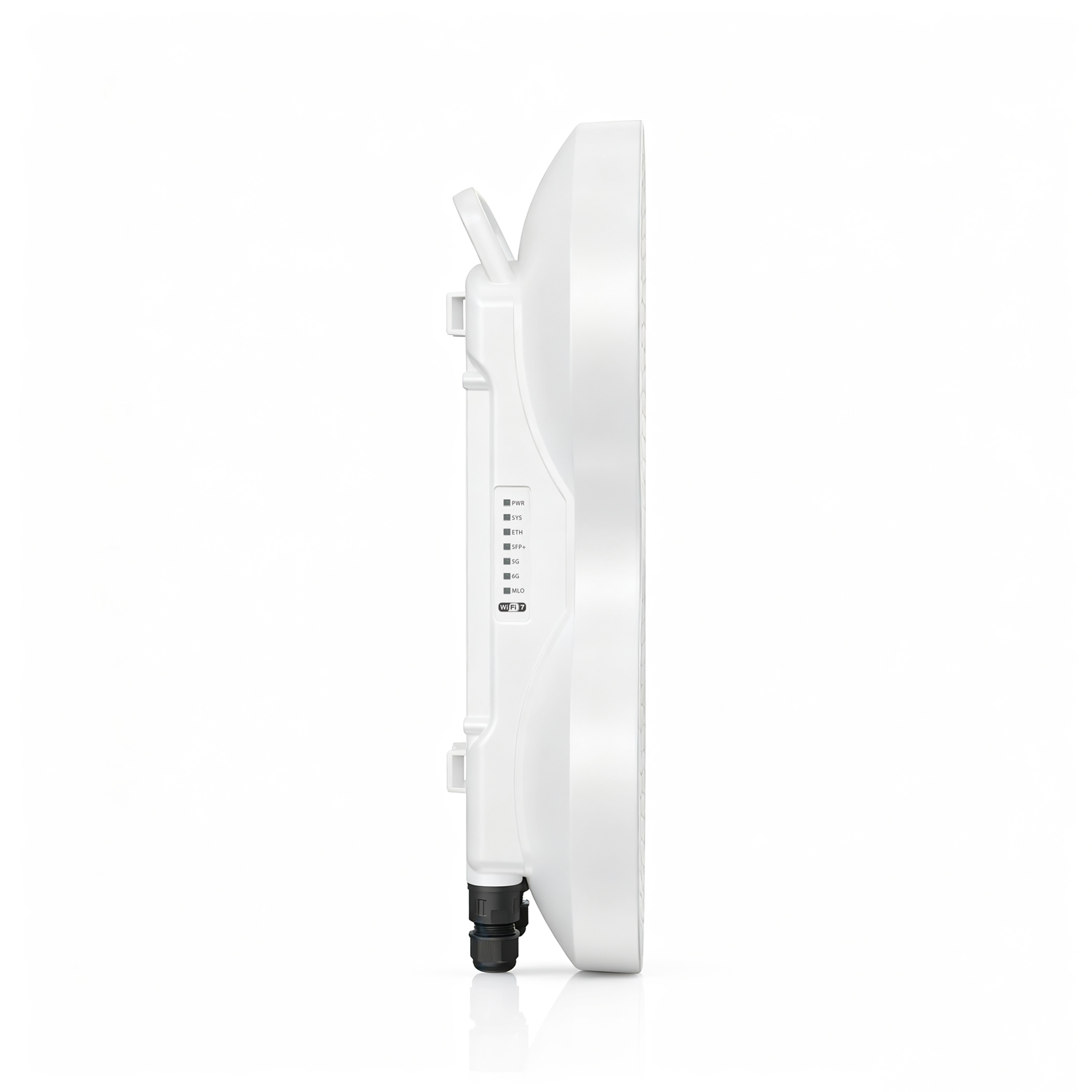

LEDs

Power

Green: Radio Power on

SYS

Flashing Green: bootup in progress

Green: Working

Ethernet

Flashing Green: Ethernet traffic detected

SFP+

Flashing Green: optical port traffic detected

5G

Green: 5GHz link

6G

Green: 6GHz link

MLO

Green：MLO Working

System

Maximum throughput

6 GHz: 2.882 Gbps

5GHz: 2.882 Gbps

Maximum range

15km

Encryption

WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE

Software

Modes

PtP only

Working mode

AP WDS、Client WDS

Network Mode

Bridge/Router

Services

ping watchdog,NTP server,NTP client, system log

Utilities

discovery utility, ping, trace route，spectral analysis，nslookup，distance

VLAN

802.1Q with 802.1p priority

DHCP

DHCP Server、DHCP Client

Network Management

HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069

6G RF

Operating frequency*

5.925-7.125GHz

Wireless Standards

802.11ax/be

Channel bandwidth

20|40|80|160MHz

Max RF Power

26dBm

Antenna Gain

20dBi

Antenna Beam width

E:20°/ H20°

5G RF

Operating frequency*

5180-5825MHz

Wireless Standards

802.11n/ac/ax/be

Max RF Power

26dBm

Channel bandwidth

20|40|80|160 MHz

Antenna Gain

20dBi

Antenna Beam width

E:20°/ H20°
