Product Overview

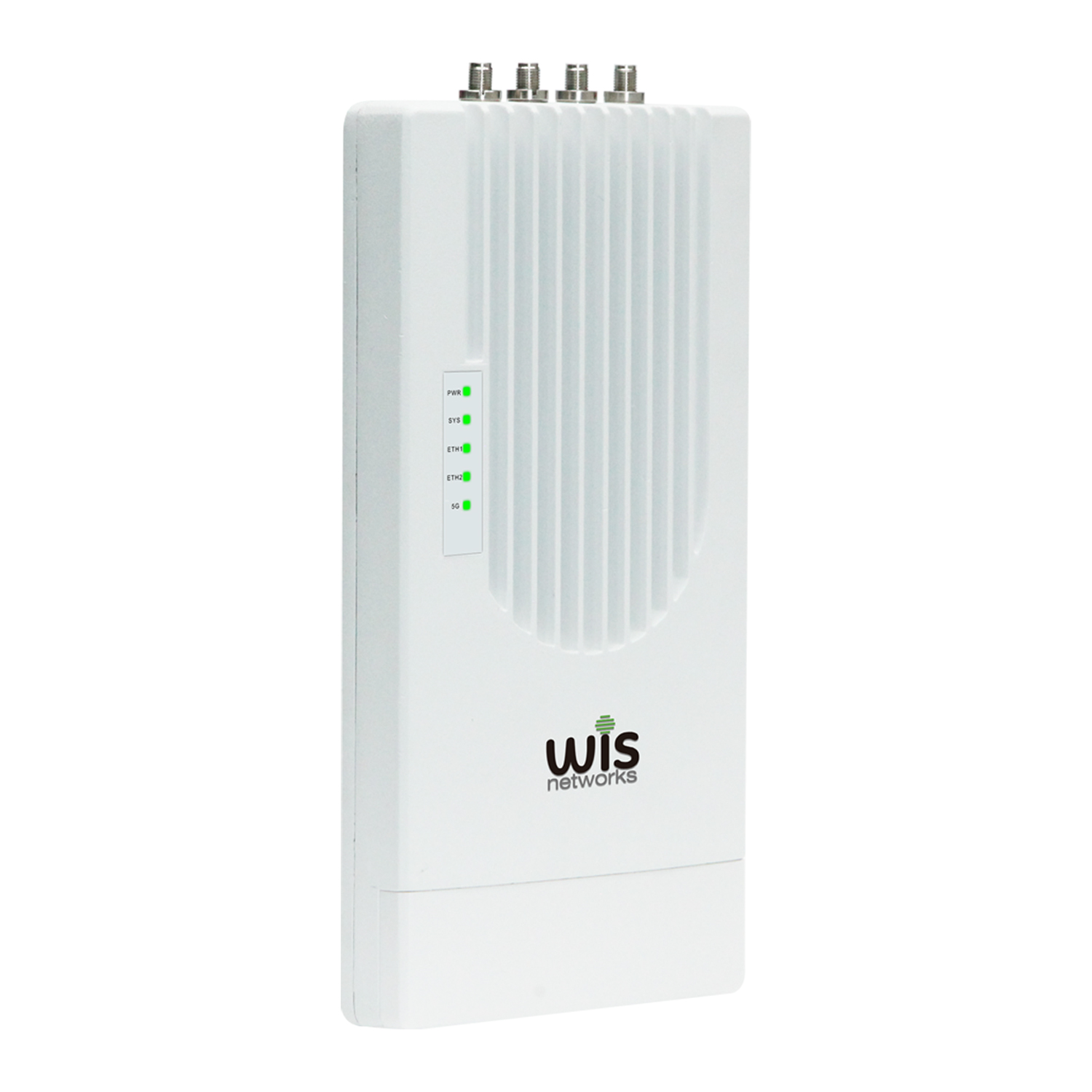

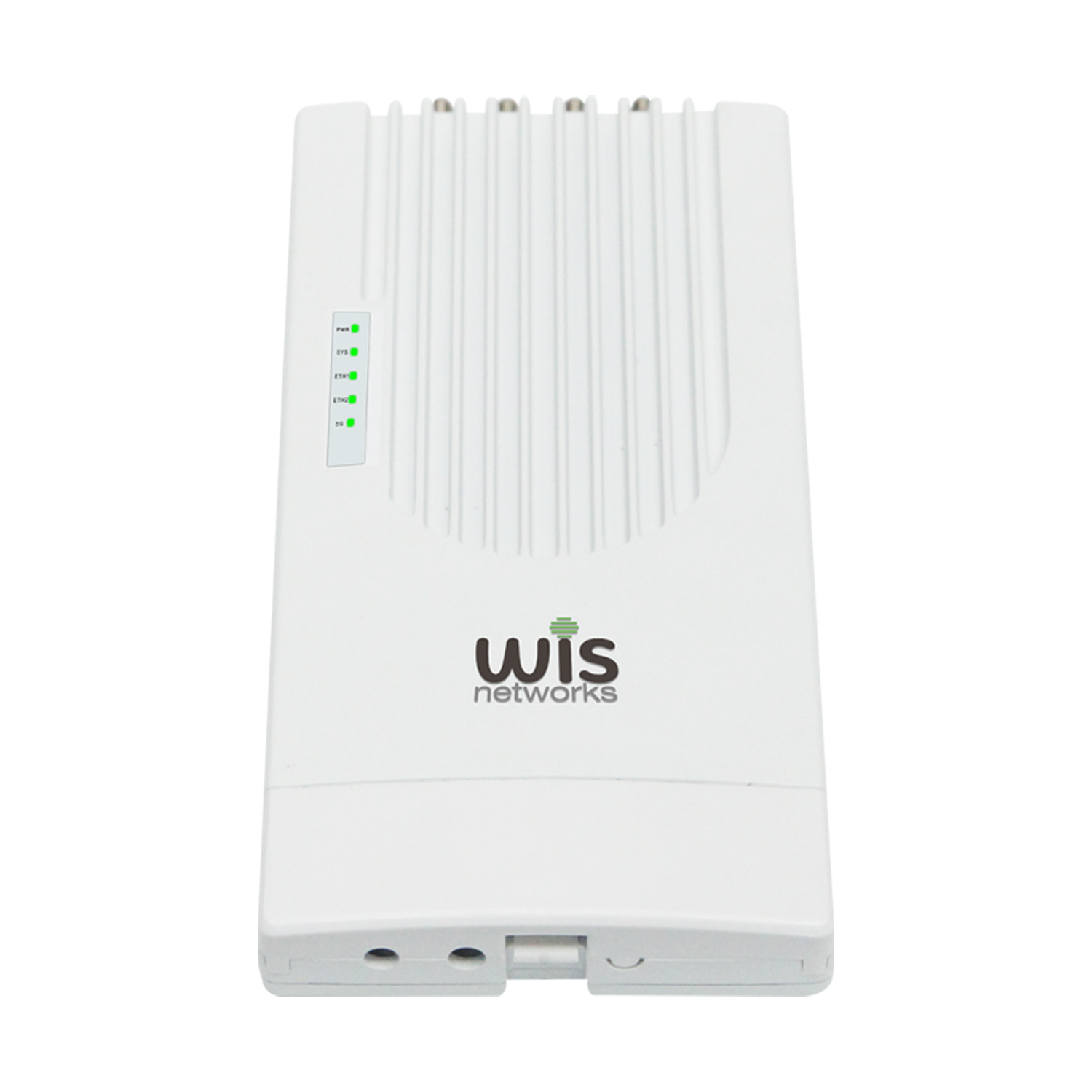

The X4600 is a 4X4 MU-MIMO access point,MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
With the efficient WIS Networks MAC protocol and advanced air-fairness scheduler up to 128
simultaneously active subscriber modules can be served without performance degradation.

Extremely High Speed Connectivity

● Ultra-Fast Wi-Fi 6 Speeds

● 5x speed than 802.11ac devices

● Wireless Speed up to 4804Mbps

● 2.5Gigabit LAN port

Amazing Outdoor Performanc

● 5km+ availability backhaul

● Up to 30dBm tx power

● 4x4 MU-MIMO

● Fully work with WIS antenna

Hardware

●  Qualcomm chip
●  512MB DDR
●  128MB NAND Flash
●  48V Gigabit poe

Model	X4500	X4600
CPU	Qualcomm Dual A53 @1.0 GHz
Operating Frequency	5180-5825MHz (restricted by country of operation)	5.925-7.125GHz
Wireless Standards	Wi-Fi 6	Wi-Fi 6e
Channel Width	20\|40\|80\|160 MHz
Proprietary Physical Layer	4x4 MU-MIMO/OFDMA based on 802.11ax underlying technology

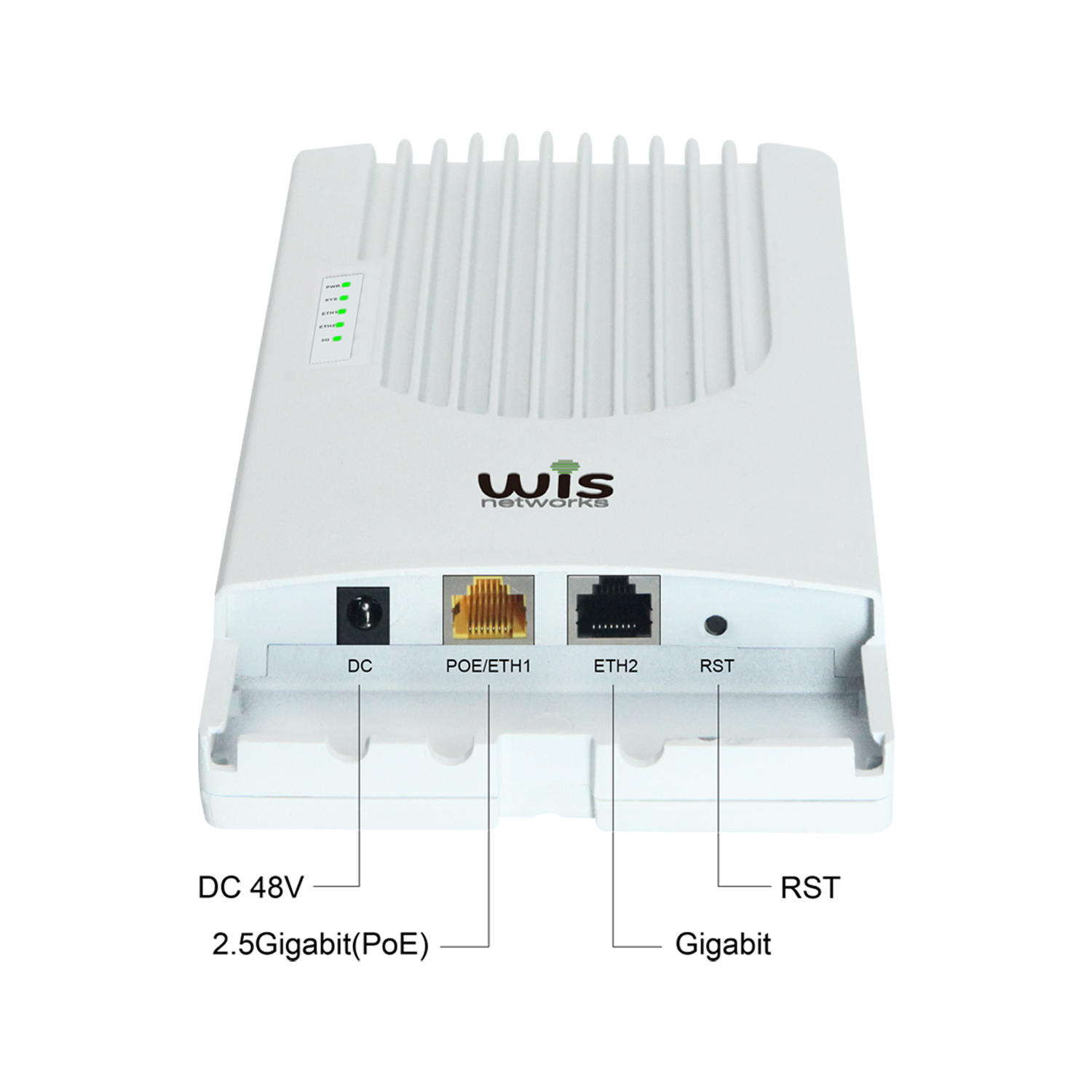

Networking interface	12.5Gigabit Ethernet + 1Gigabit
Transmit Power Range	+3 to +26dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Connector	4*RPSMA (External antenna)
LEDs	1Power, 1SYS, 1*Wi-Fi
Power Supply	802.3af/at, or DC 12-48V
Power Consumption	<15W
Surge suppression	8KV
Weatherproof Enclosure	IP65
Size	23611728mm
Weight	1.5 kg
Temperature	-30°C to 60°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE
VLAN	802.1Q with 802.1p priority
DHCP	DHCP Server、DHCP Client
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069
QoS (Quality of Service)	Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority
ARQ	yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain)	MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain)	MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @160 MHz Channel	MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain)	MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)

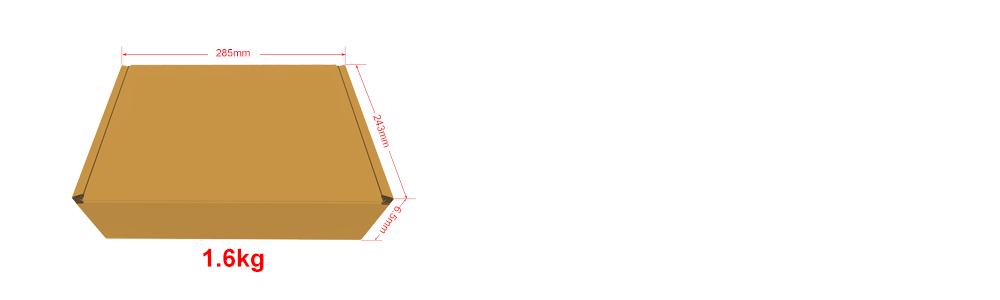

Package Size & Weight

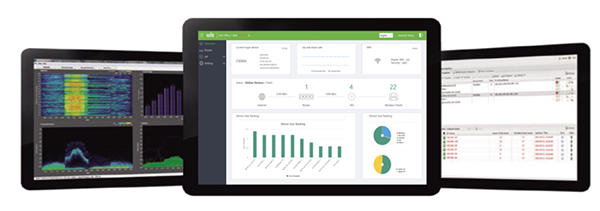

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
