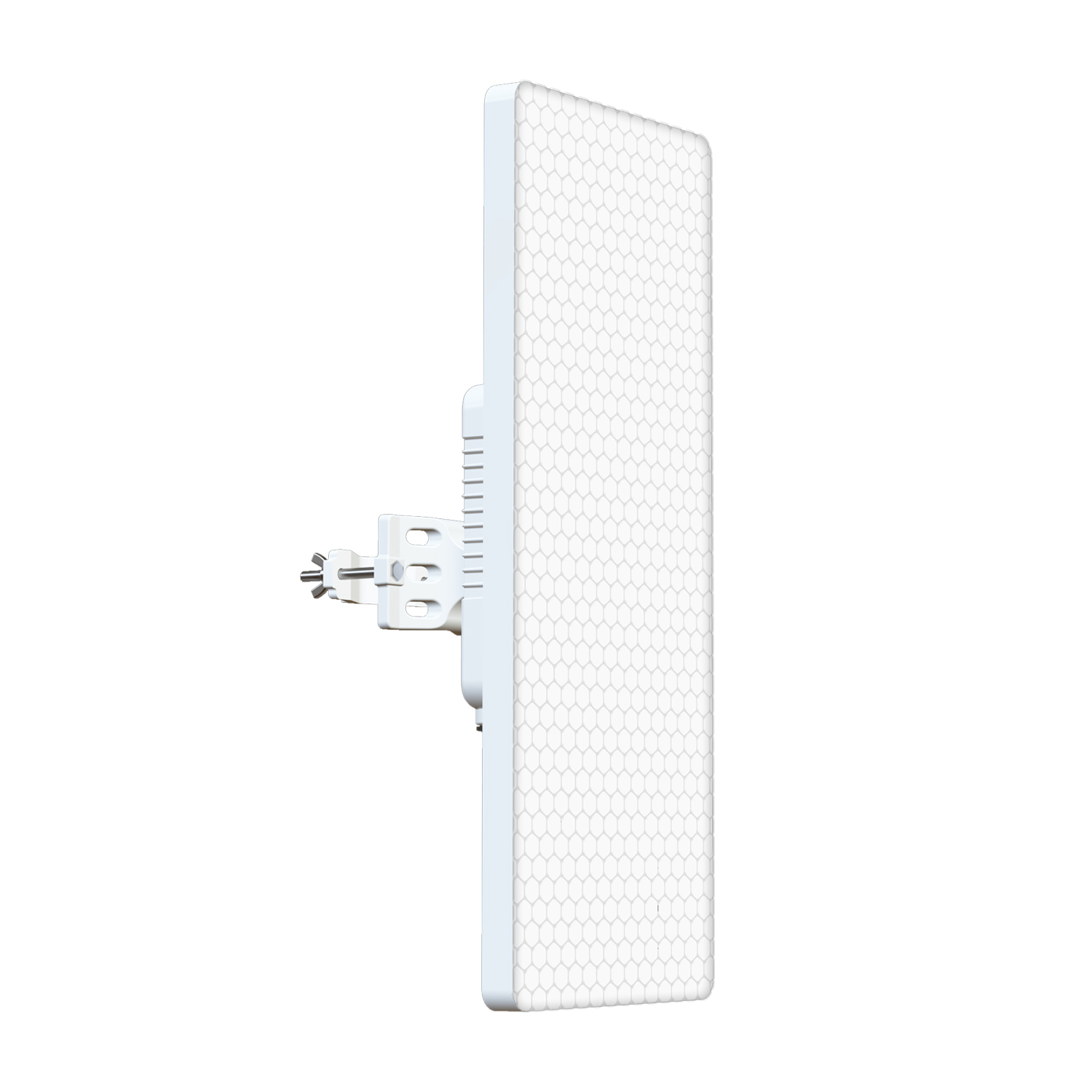

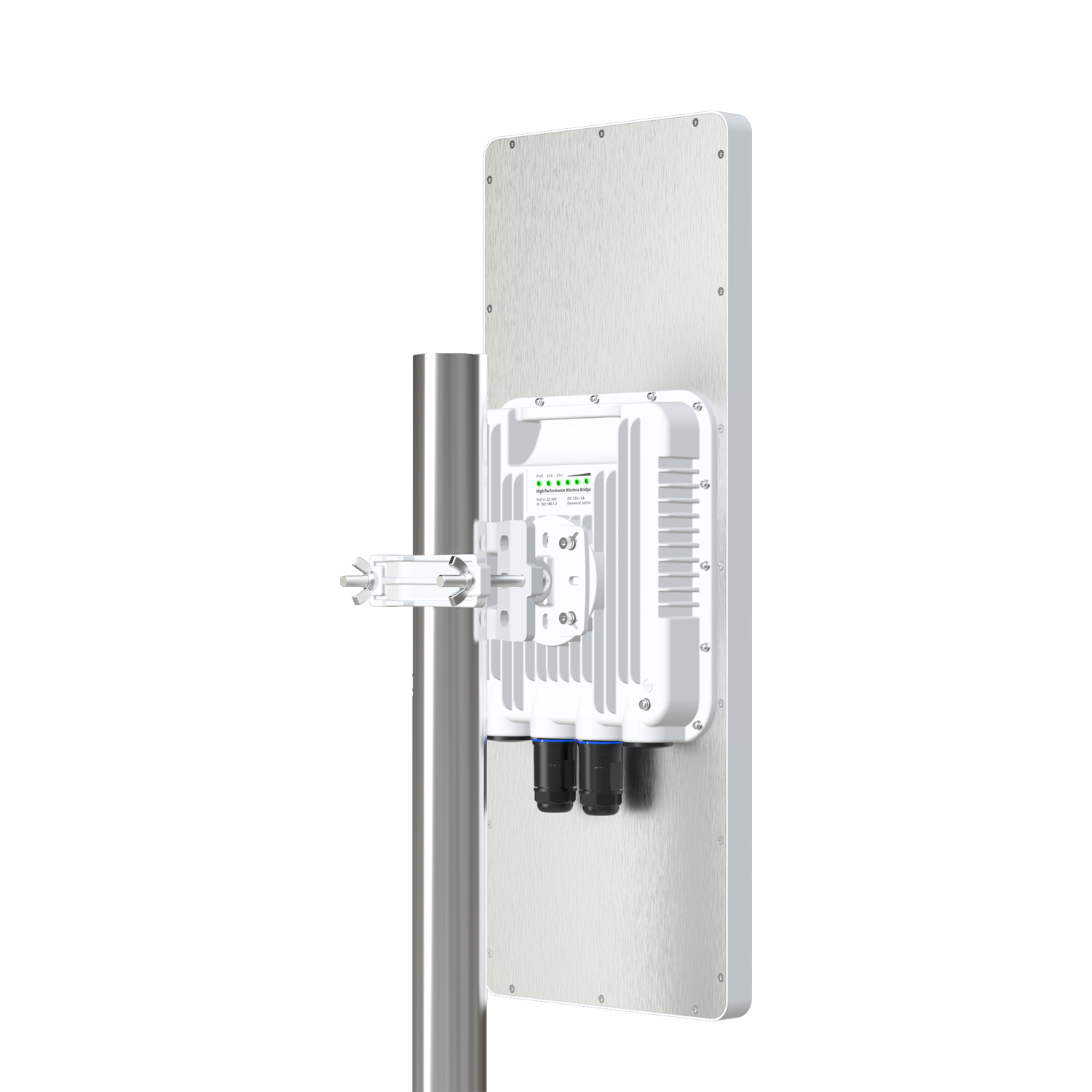

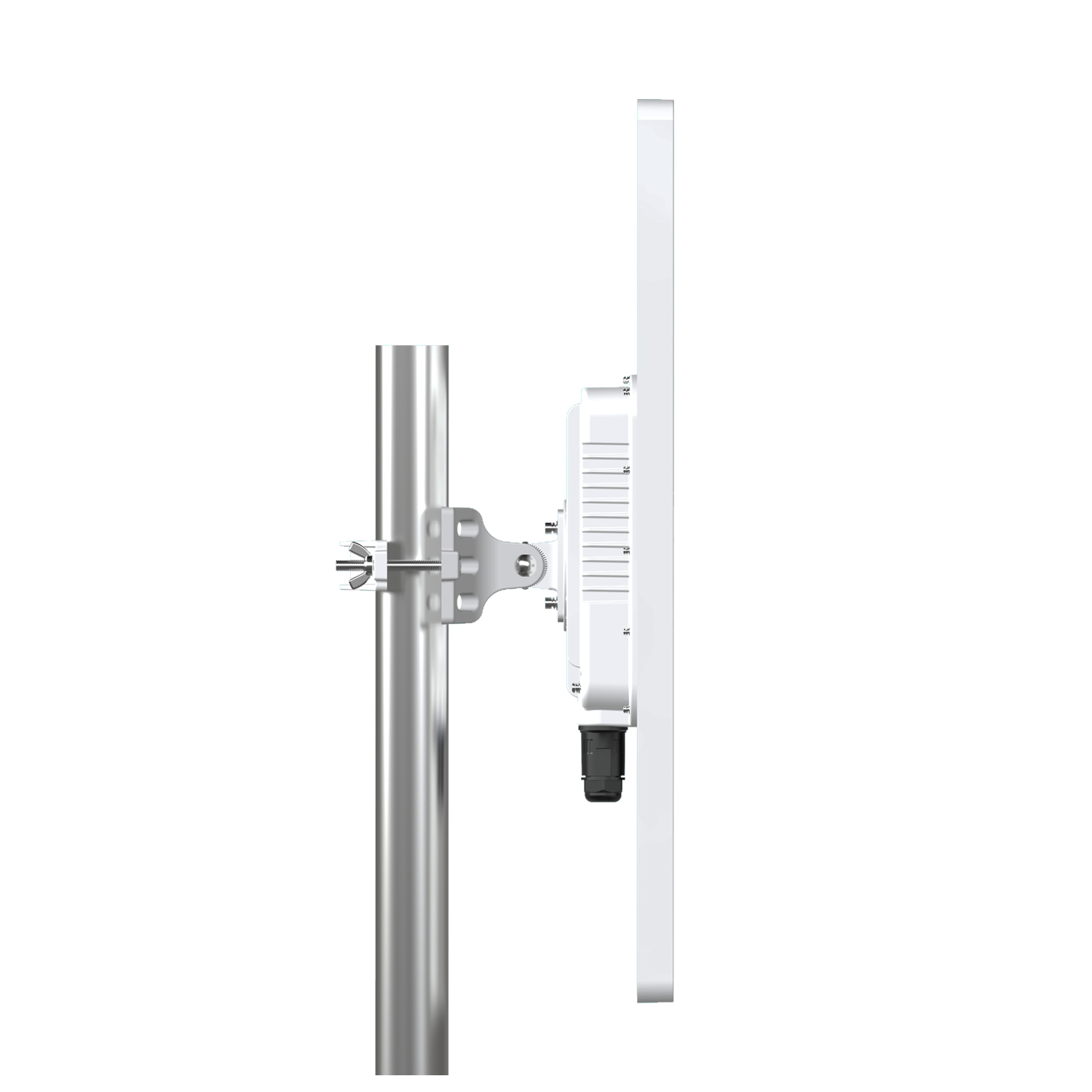

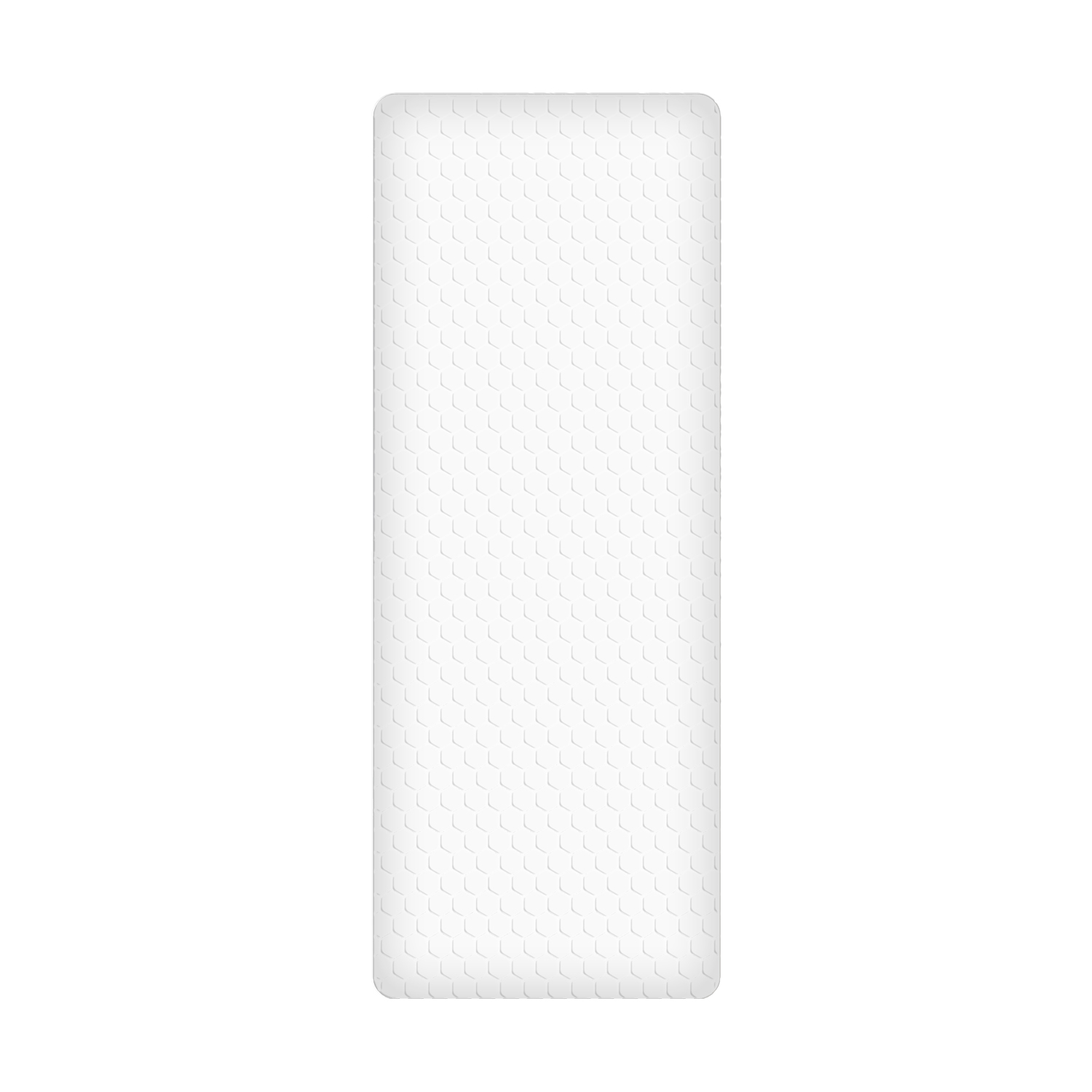

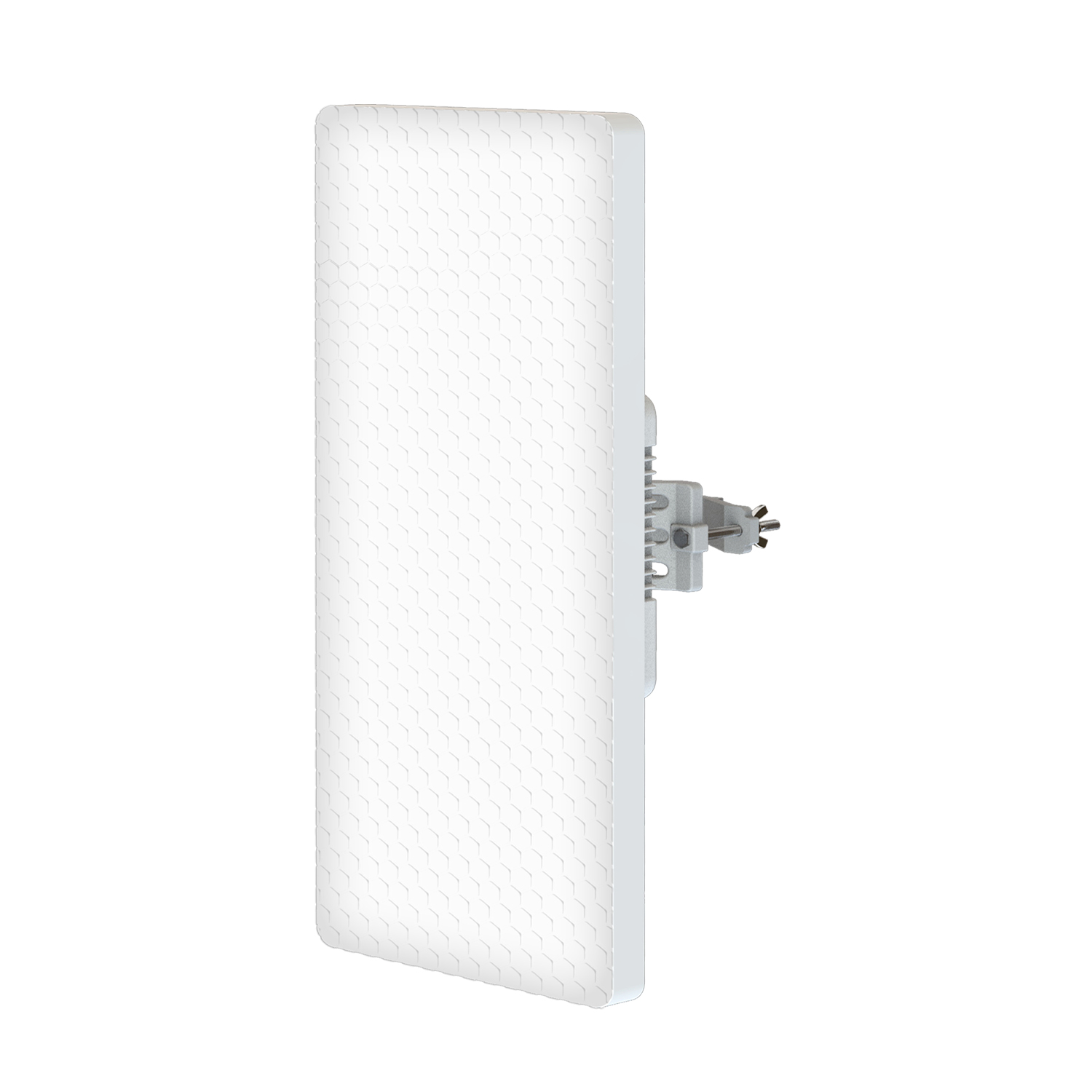

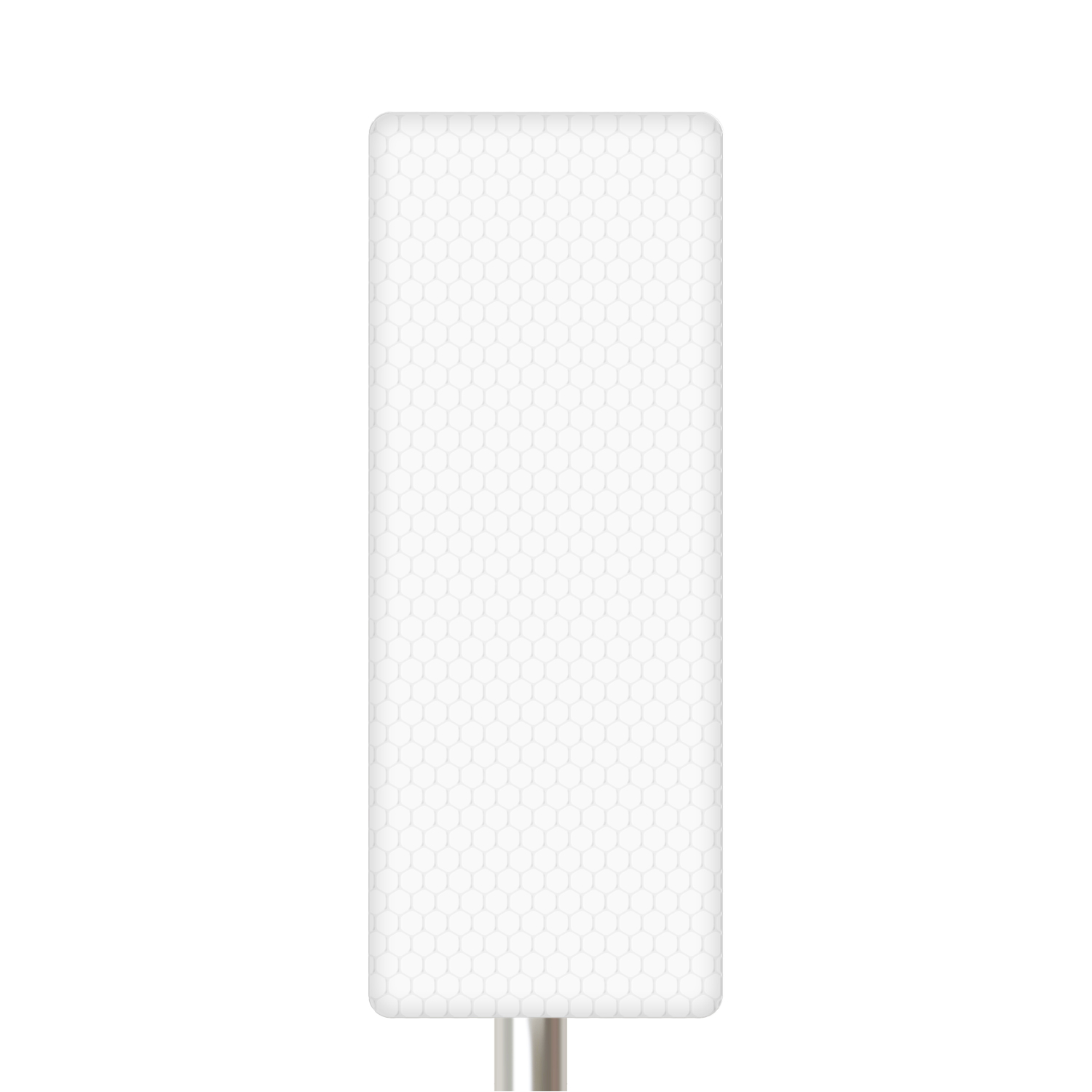

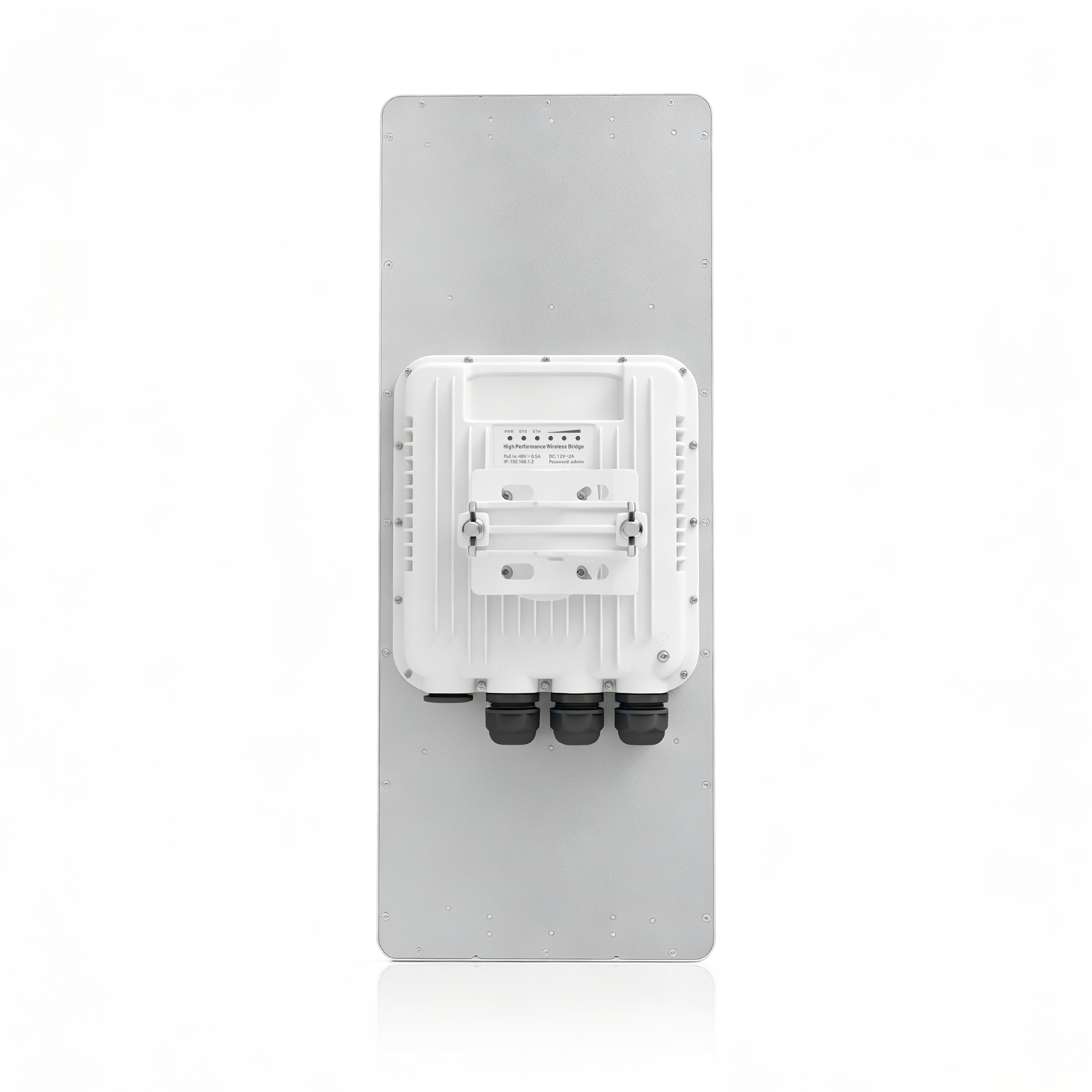

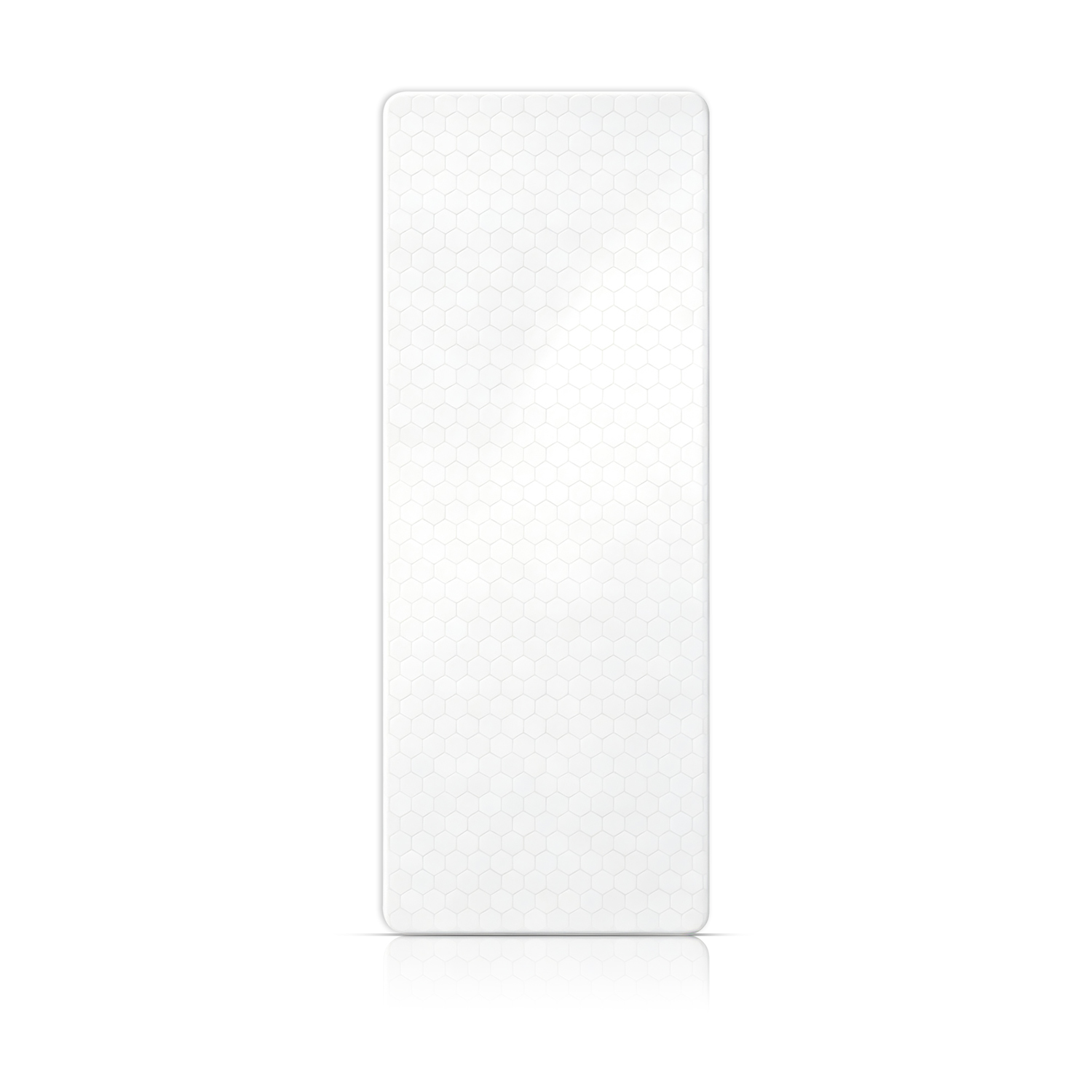

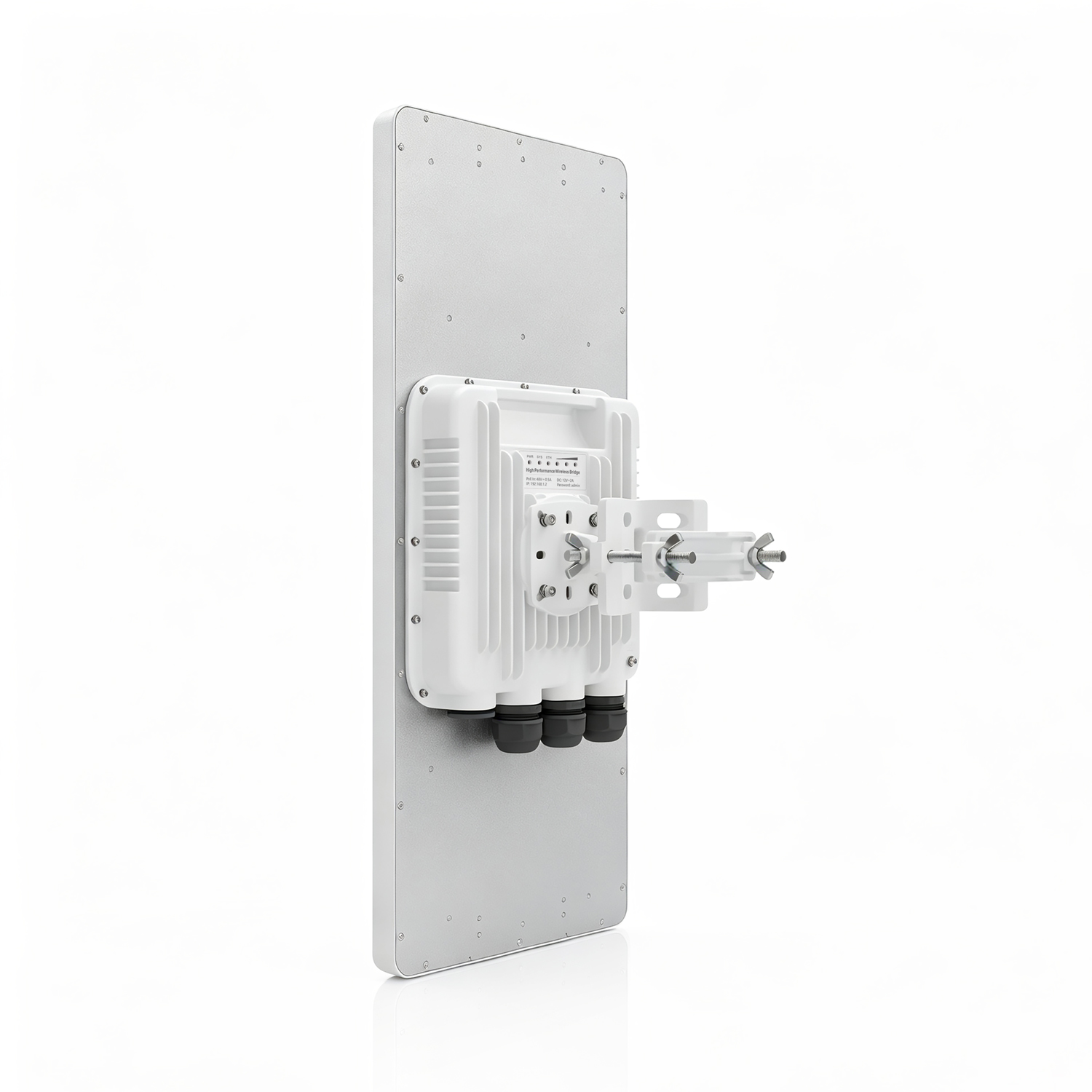

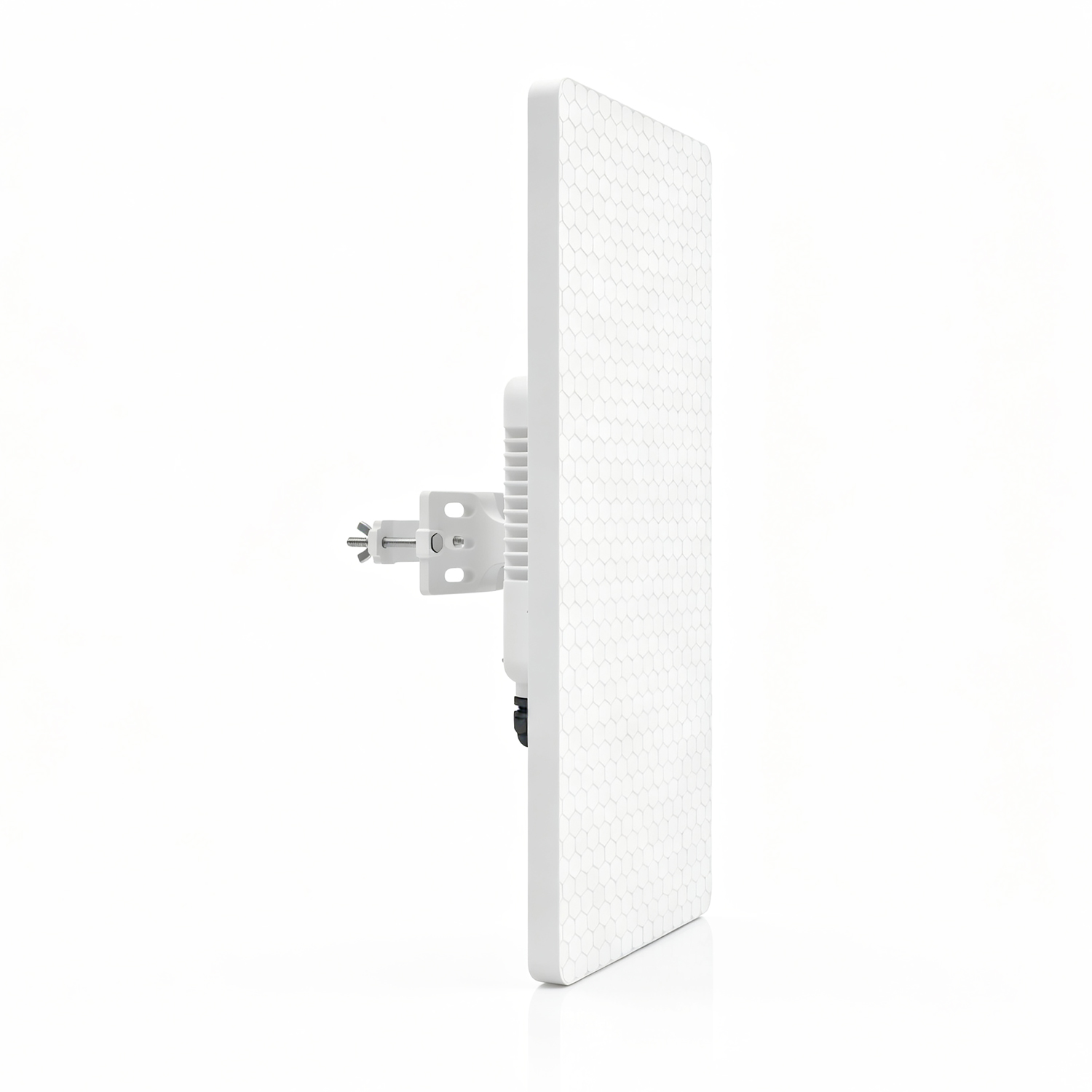

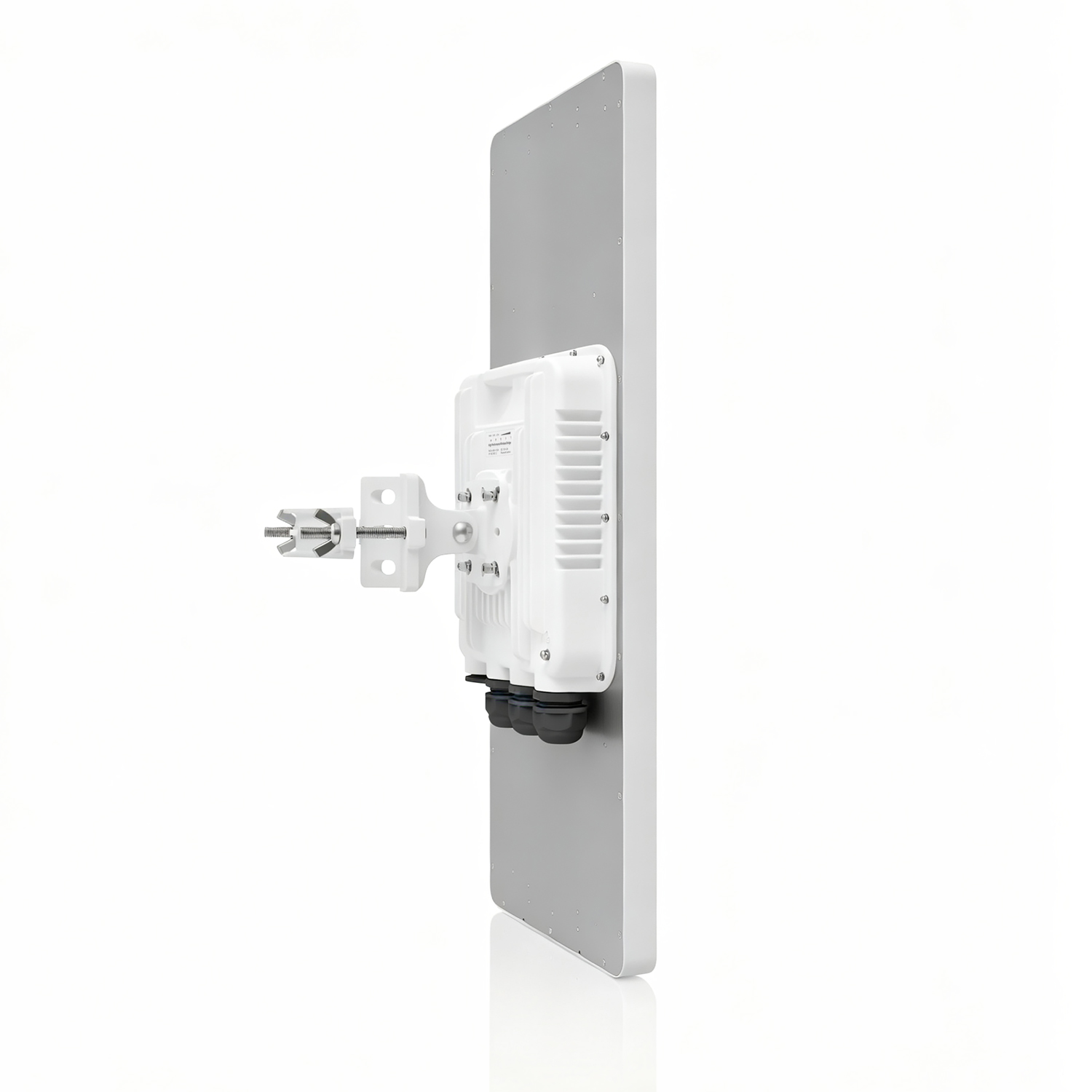

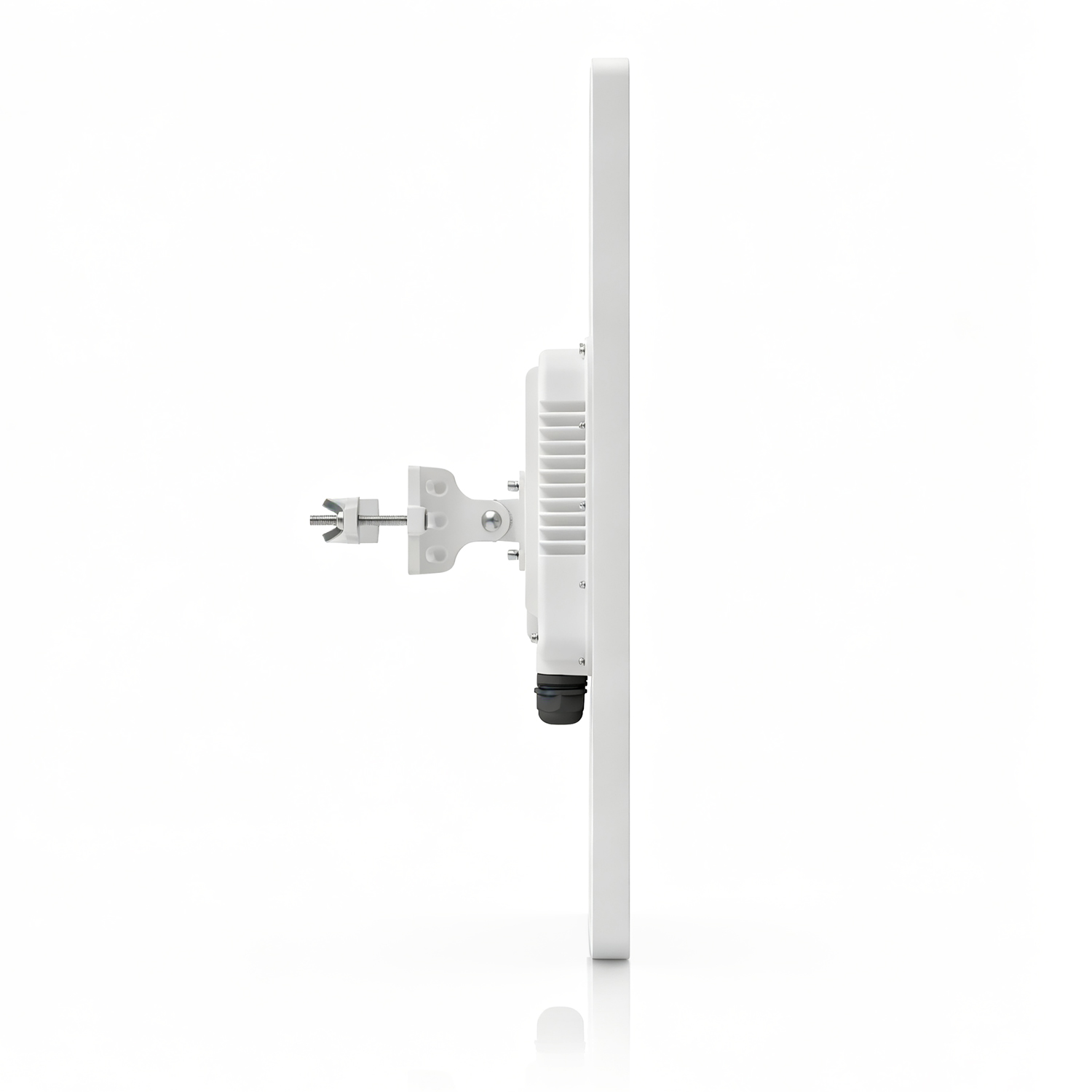

X4619S

WIS OS

The full-featured operating system makes the devices ideal for WISPs and operators, enabling low latency and high packets-per-second performance.

The QoS (Quality of Service) mechanism prioritizes mission-critical data and ensures efficient transmission of real-time traffic, such as voice and video.

Essential tools-such as a spectrum analyzer, device discovery, and antenna alignment-are included.

WIS OS

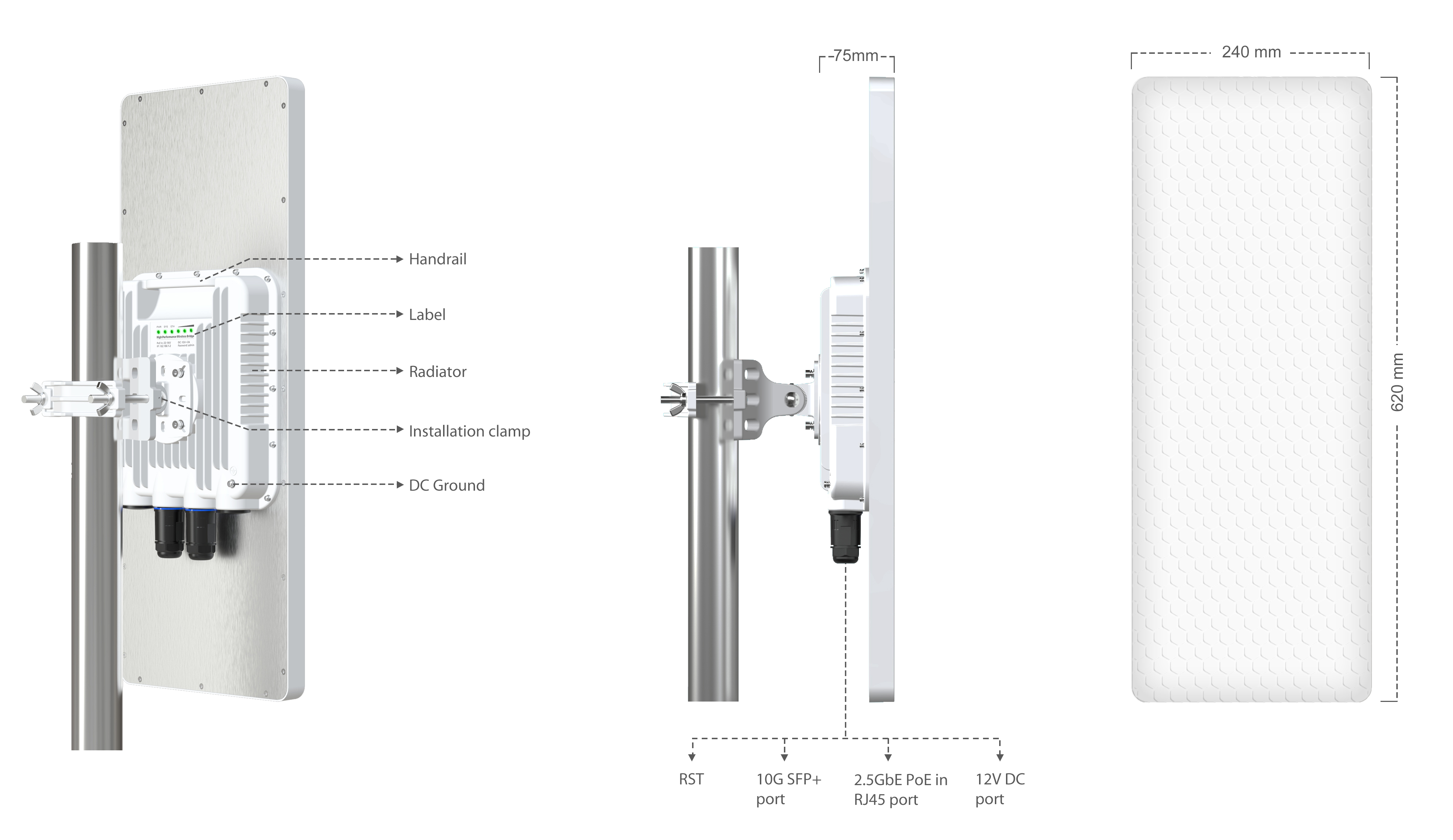

Hardware Overview

Radio Specifications

Model	X4619S
Wireless Standards	Wi-Fi 6/802.11axe
CPU	Dual-core ARM Cortex-A53@1.0GHz
Channel Width	20|40|80|160MHz
WiFi Speeds	4804Mbps
Size of RAM	512MB
Size of Flash	128MB
Networking interface	2.5Gb+1Gb Port
Operating Frequency	5.955-7.125GHz
Max Power	30dBm
Proprietary Physical Layer	4x4 MIMO
Antenna Gain	4*19dBi
Antenna Beam width	120 Degree
LEDs	1*Power, 1*SYS, 3*Wi-Fi
Power Supply	PoE  22-56V, or DC 12V
Power Consumption	<16W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Size	620*240*75mm
Weight	3.5kg
Temperature	-40°C to 70°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Wireless Security	WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP）
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069,SSH,
VLAN	802.1Q
DHCP	DHCP Server、DHCP Client



LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
