Model |
X516 |
X616 |
E516 |
E616 |
|
Standards |
Wi-Fi 6 |
Wi-Fi 6e |
Wi-Fi 7 |
Wi-Fi 7 |
|
Frequency |
5.1-5.8GHz |
5.9-7.1GHz |
5.1-6.425GHz |
5.9-7.125GHz |
|
Ethernet |
1Gbps |
1Gbps |
2*2.5Gbps |
2*2.5Gbps |
|
Antenna Gain |
2*16dBi |
|||
|
PoE in |
24-48V Passive |
|||
|
DC |
12-48V |
|||
Specifications
|
Model |
X516 |
X616 |
E516 |
E616 |
|
|
CPU |
Qualcomm Dual A53 @1.0 GHz |
Qualcomm Quad A53 @ 1.1GHz |
|||
|
Operating Frequency |
5180-5825MHz |
5.925-7.125GHz |
5.18-6.415GHz |
5.925-7.125GHz |
|
|
Wireless Standards |
WIFI 6 |
WIFI 6e |
WIFI 7 |
WIFI 7 |
|
|
Channel Width |
20|40|80|160 MHz |
20|40|80|160|320 MHz |
|||
|
Networking interface |
1*Gigabit |
2*2.5Gigabit Ethernet |
|||
|
TX Power |
Max 29dBm |
|
|||
|
Proprietary Physical Layer |
2x2MU-MIMO |
||||
|
Antenna Frequency Range |
5.15-7.125GHz |
||||
|
Antenna Gain |
16dBi Dual Linear |
||||
|
Antenna Beam width |
E:40°/ H:18° |
||||
|

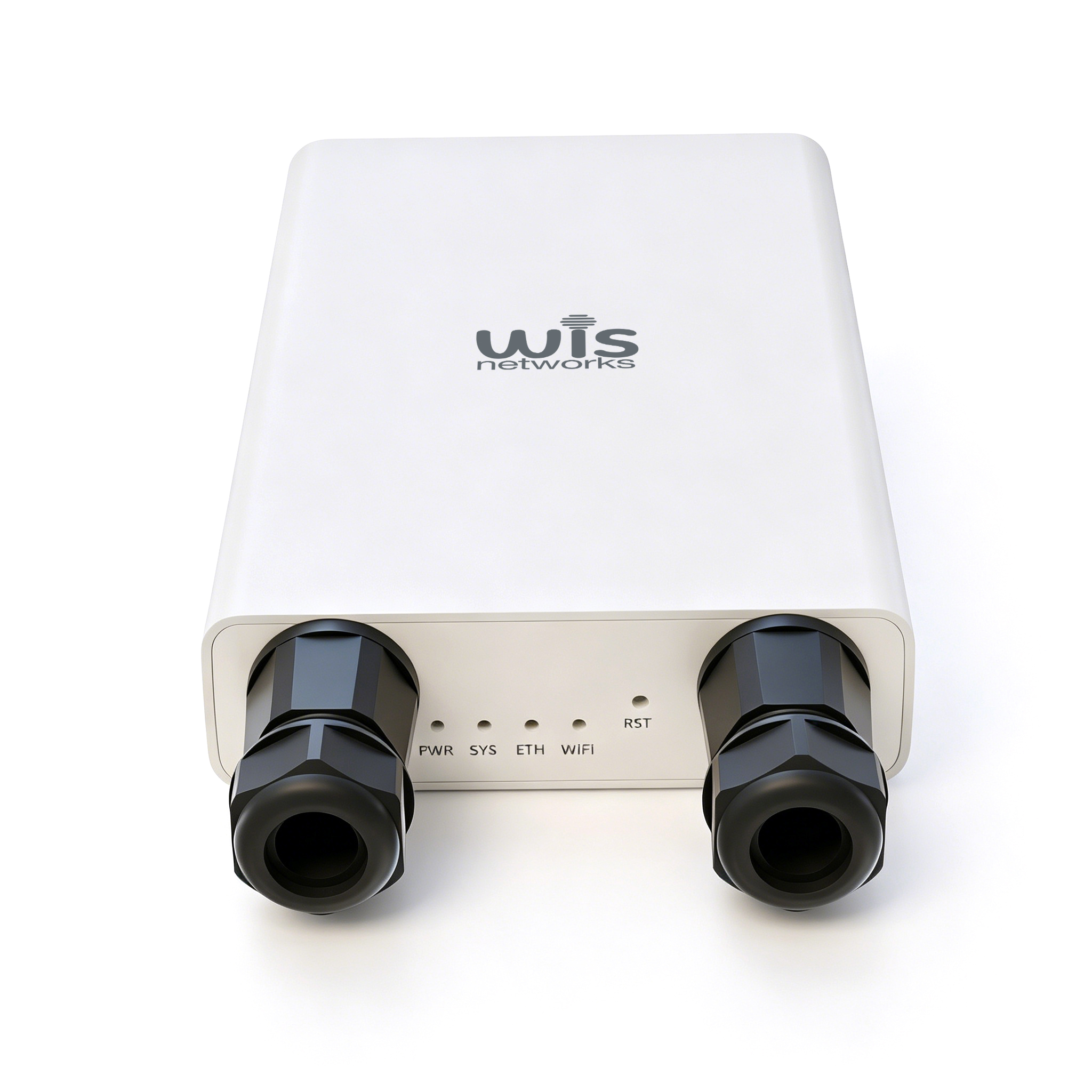

LEDs |
1*Power, 1*SYS, 1*LAN, 1*Wi-Fi |
||||
|
Power Supply |
PoE 22-56V |
||||
|
Power Supply |
DC12-48V |
||||
|
Power Consumption |
<15W |
||||
|
Surge suppression |
8KV |
||||
|
Weatherproof Enclosure |
IP67 |
||||
|

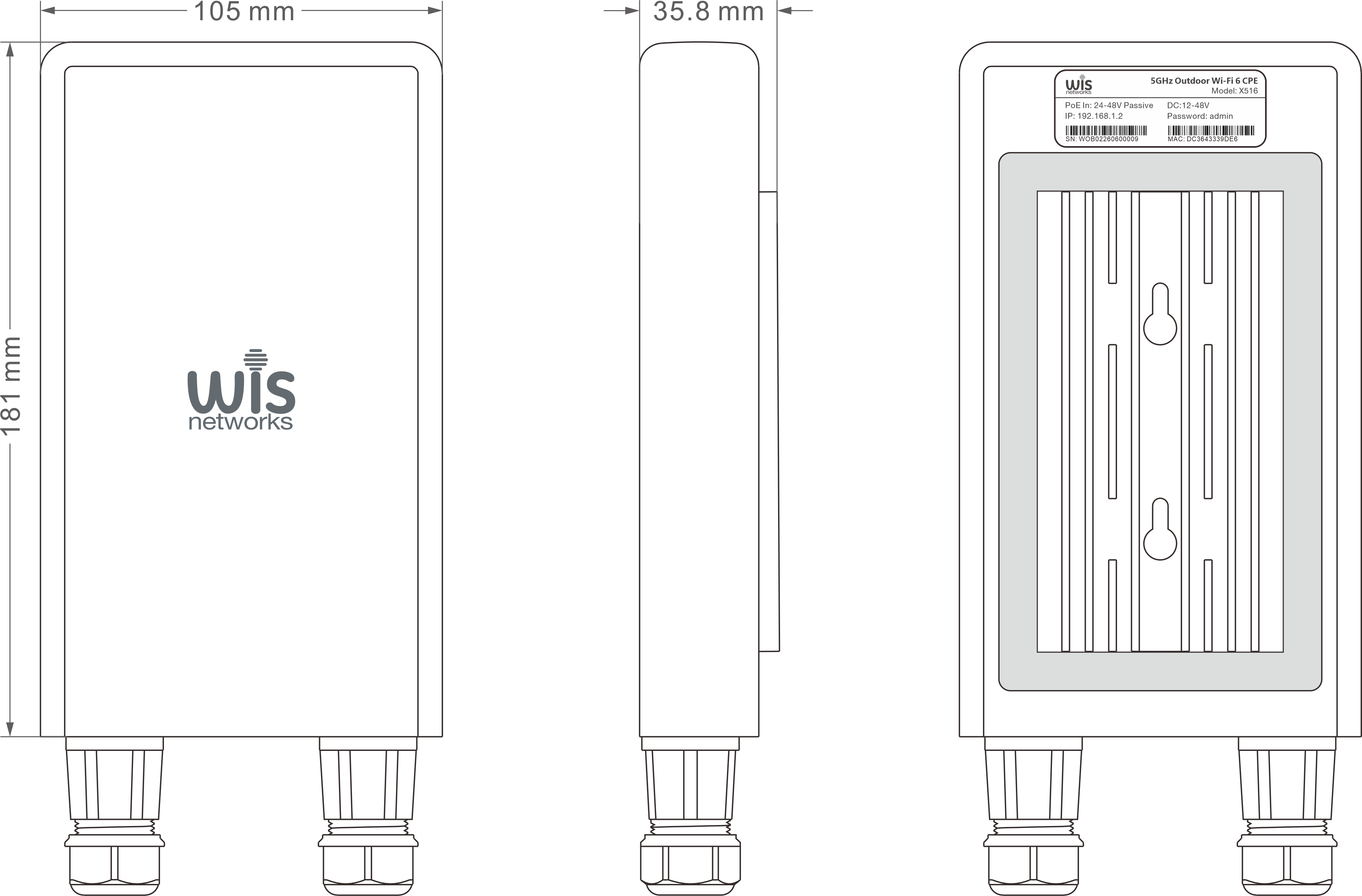

Size |
180*105*31mm |
||||
|
Weight |
0.8kg |
||||
|
Temperature |
-35°C to 50°C |
||||
|
Working mode |
AP WDS、Client WDS |
||||
|
Network Mode |
Bridge/Router |
||||
|
Firewall |
Port Forwarding ,DMZ,ACL Filtering |
||||
|
Wireless Security |
WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE |
||||
|
VLAN |
802.1Q with 802.1p priority |
||||
|
DHCP |
DHCP Server、DHCP Client |
||||
|
Network Management |
HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069 |
||||
|
QoS (Quality of Service) |
Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority |
||||
|
ARQ |
yes |
||||

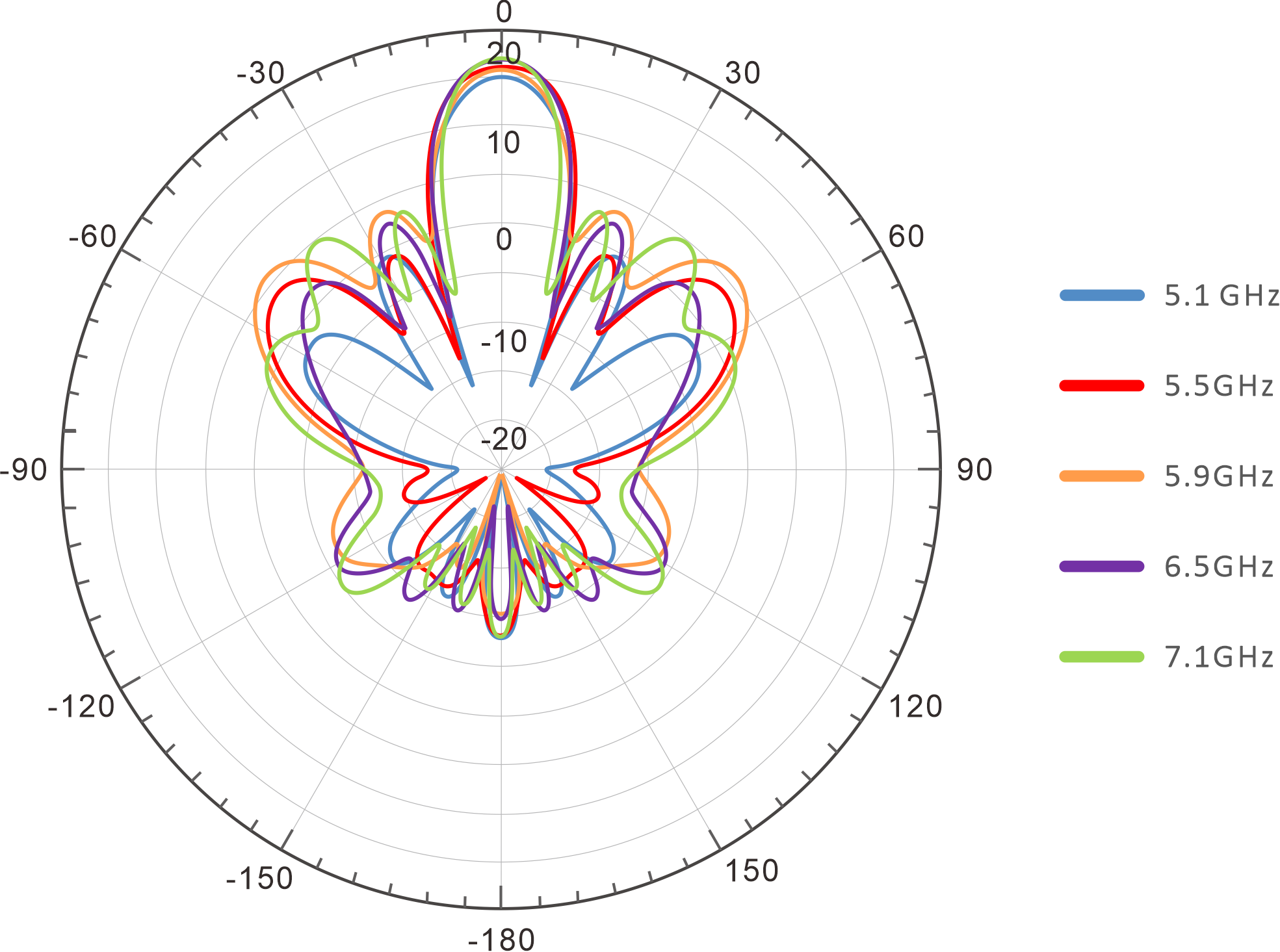

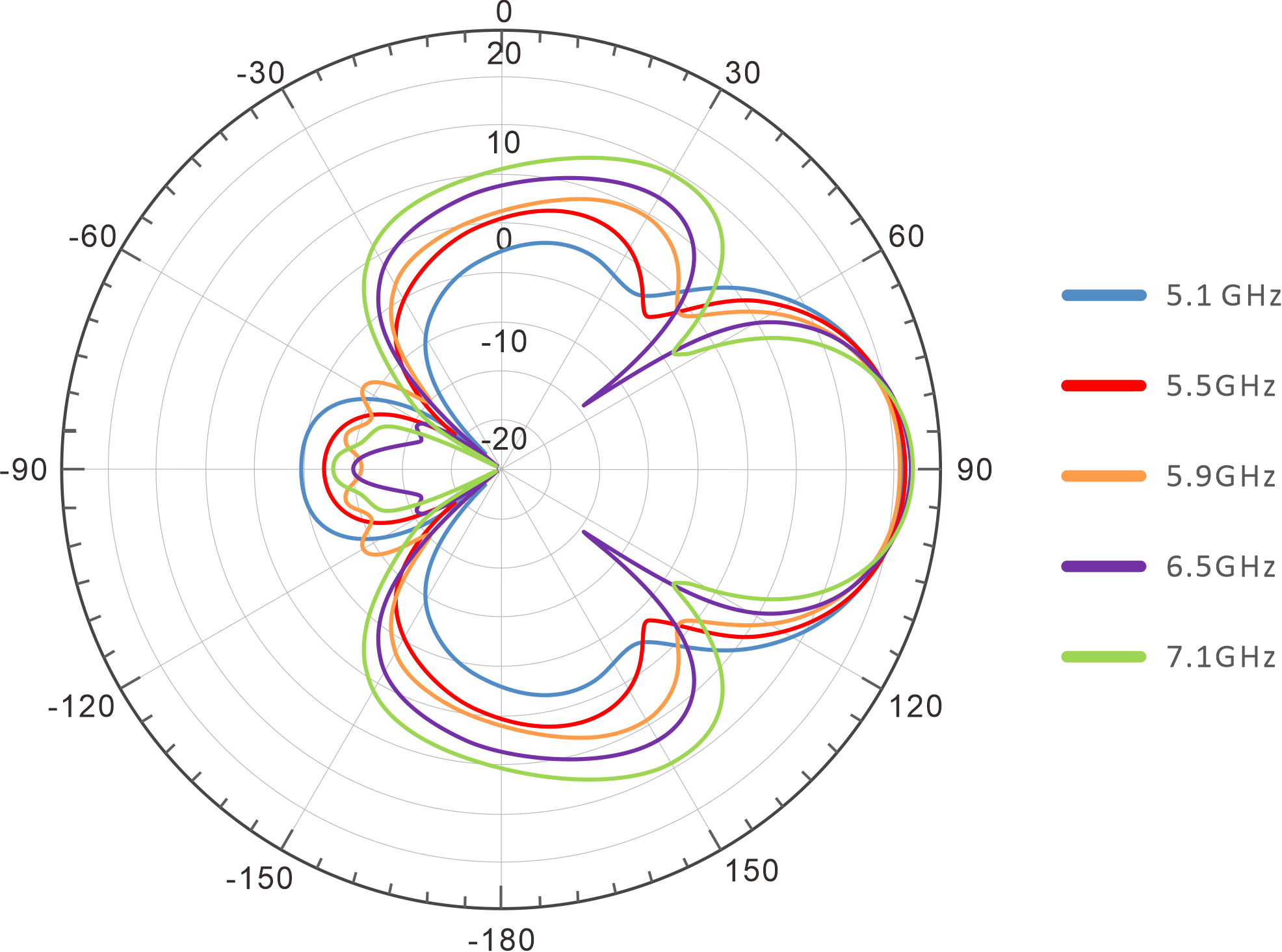

ANTENNA PATTERNS
|

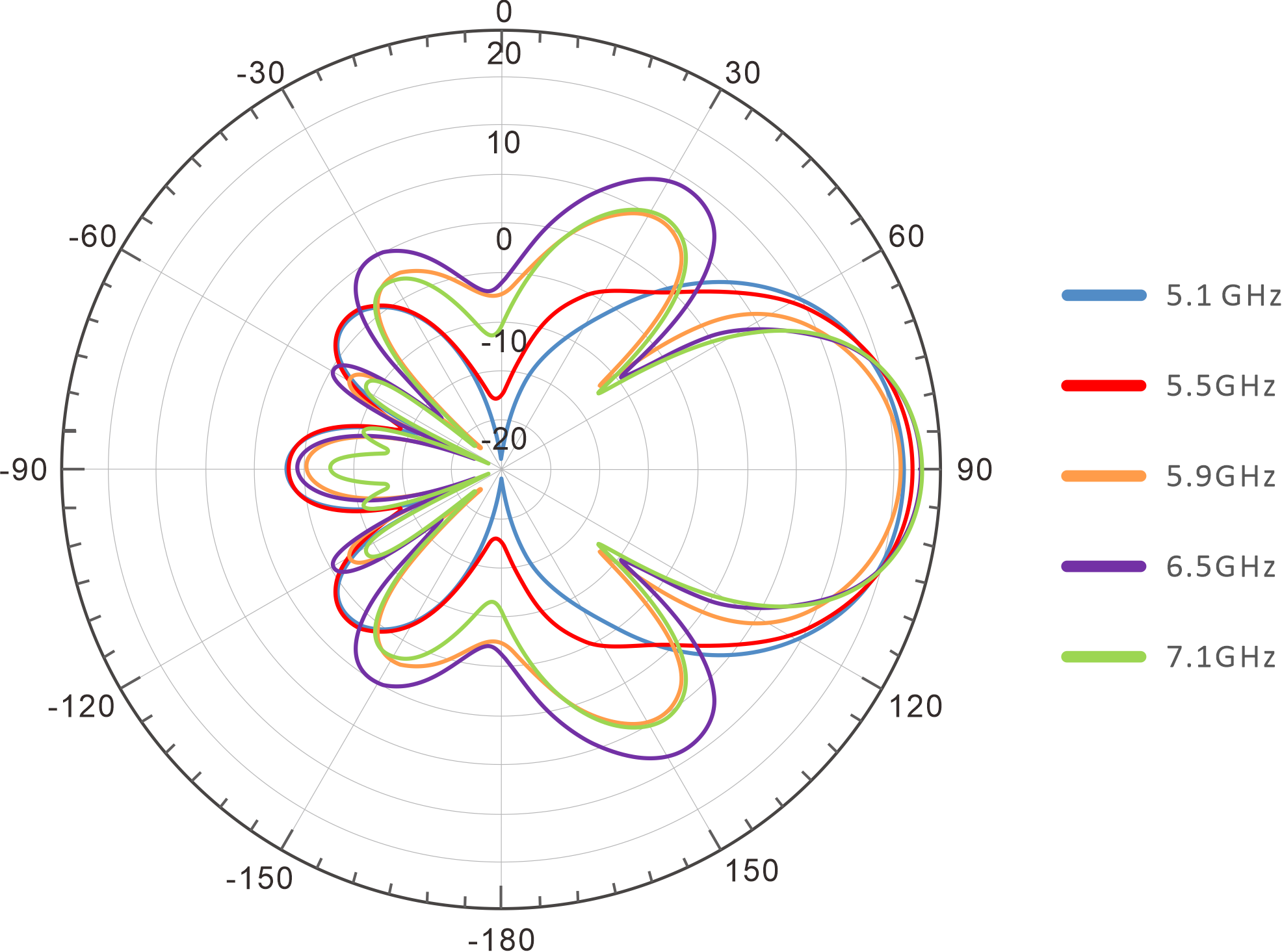

HPOL-H |

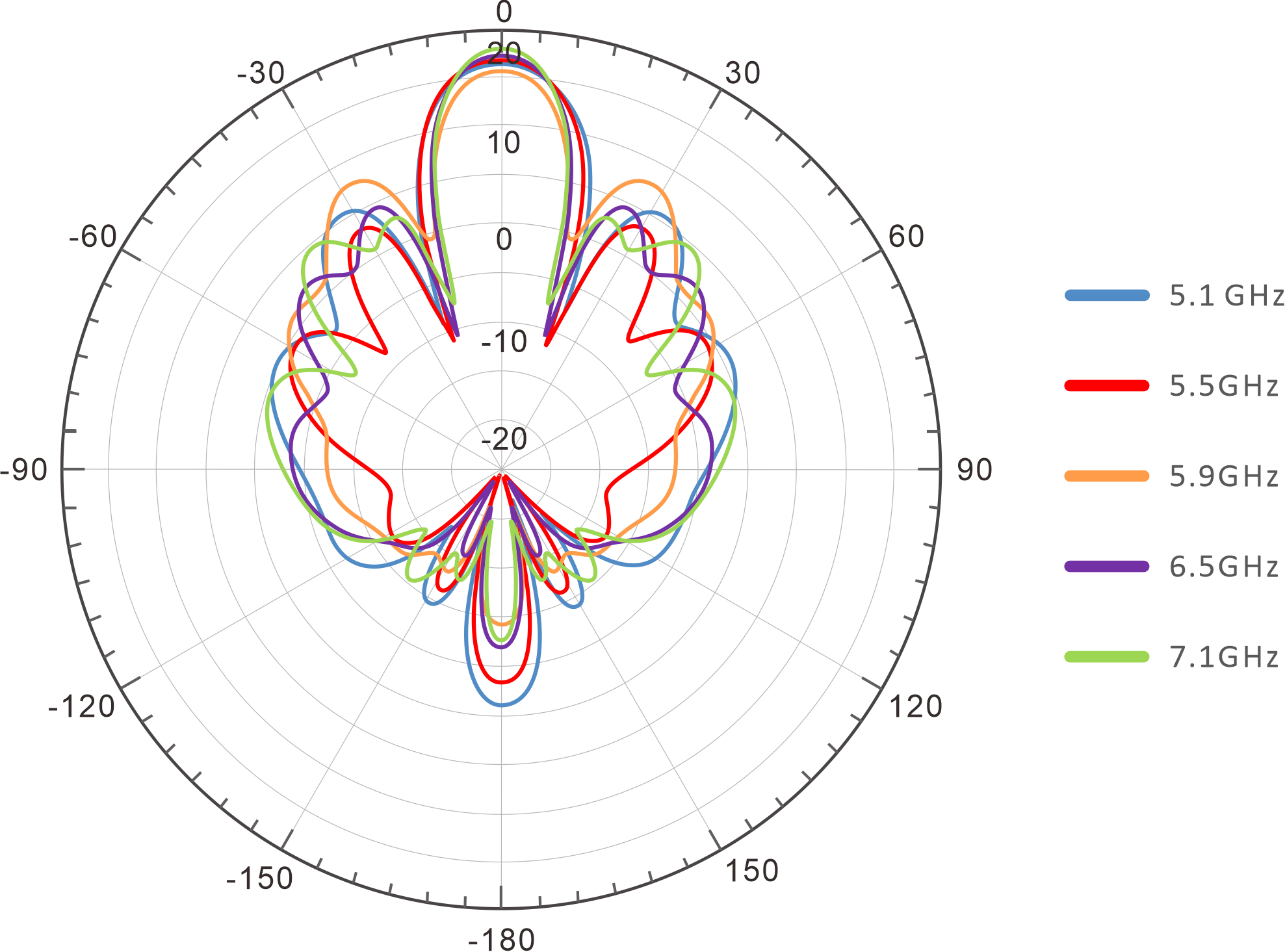

HPOL-E |
|
VPOL-H |
VPOL-E |

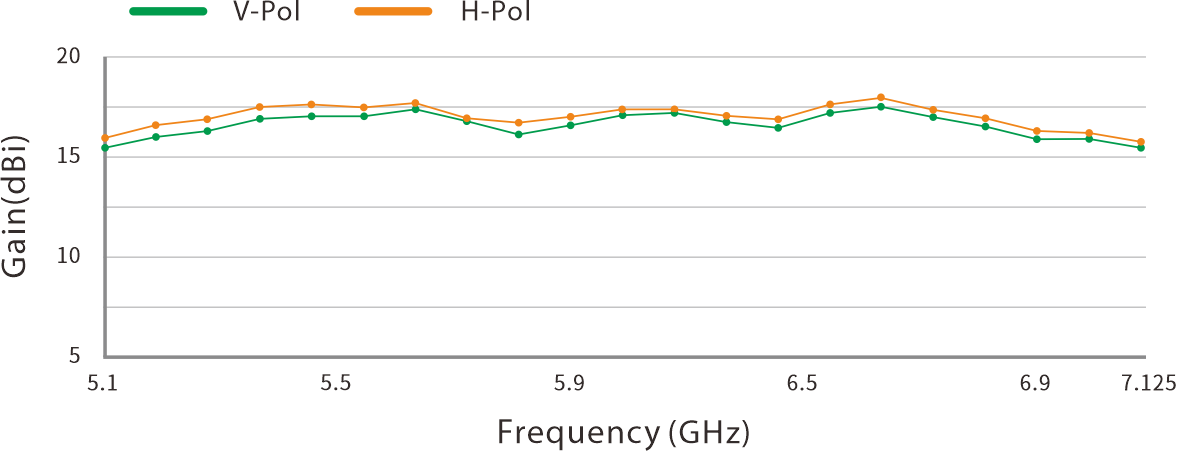

ANTENNA GAIN
