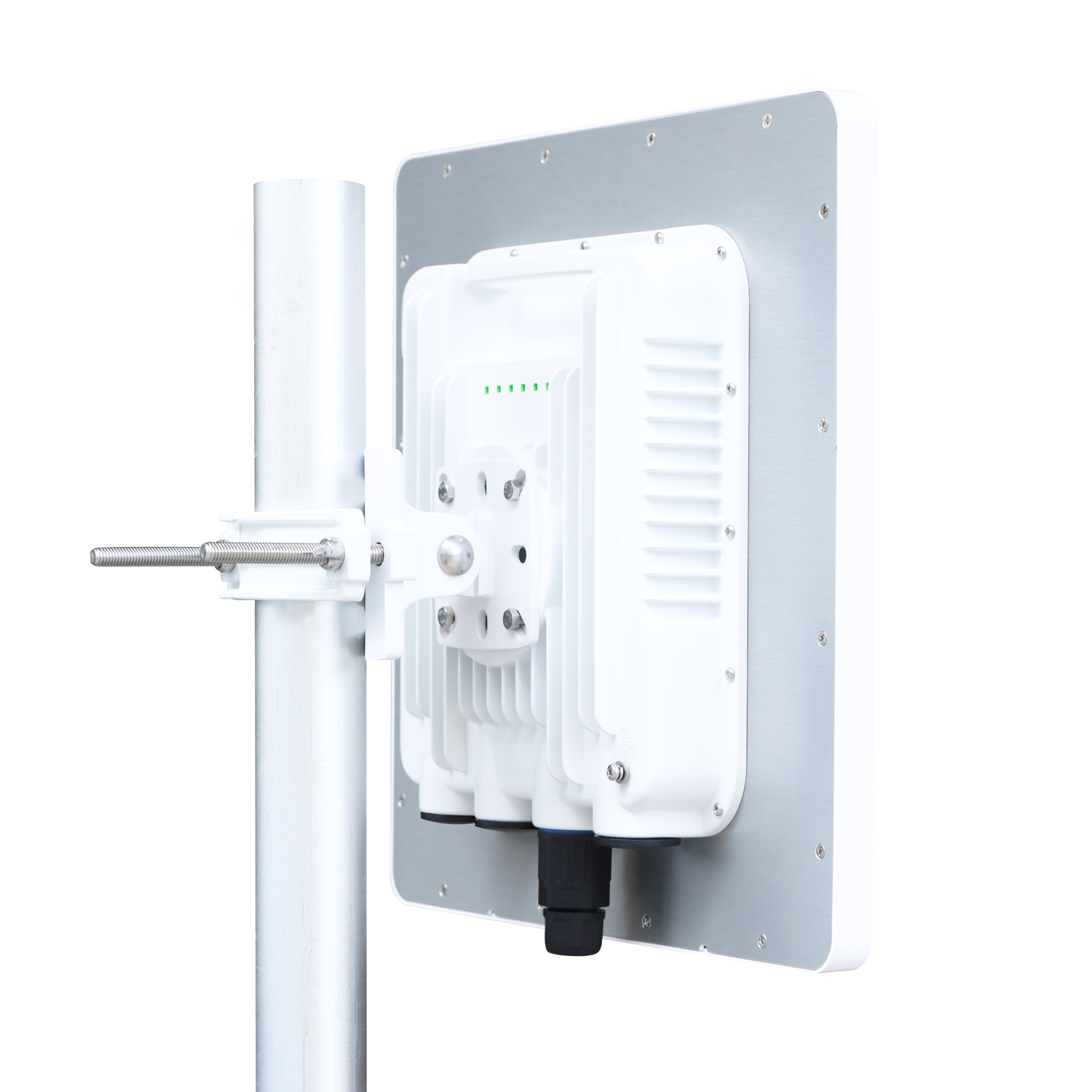

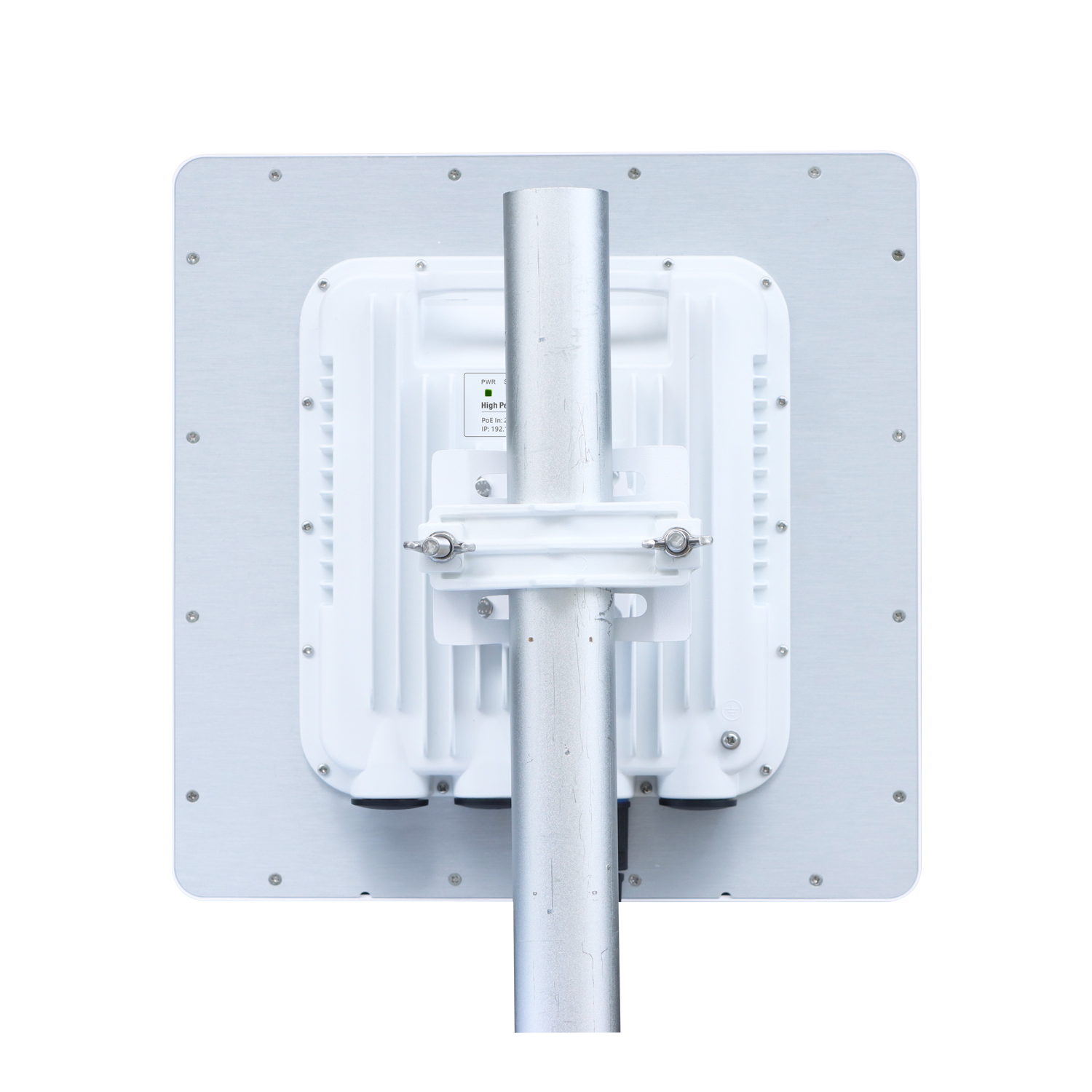

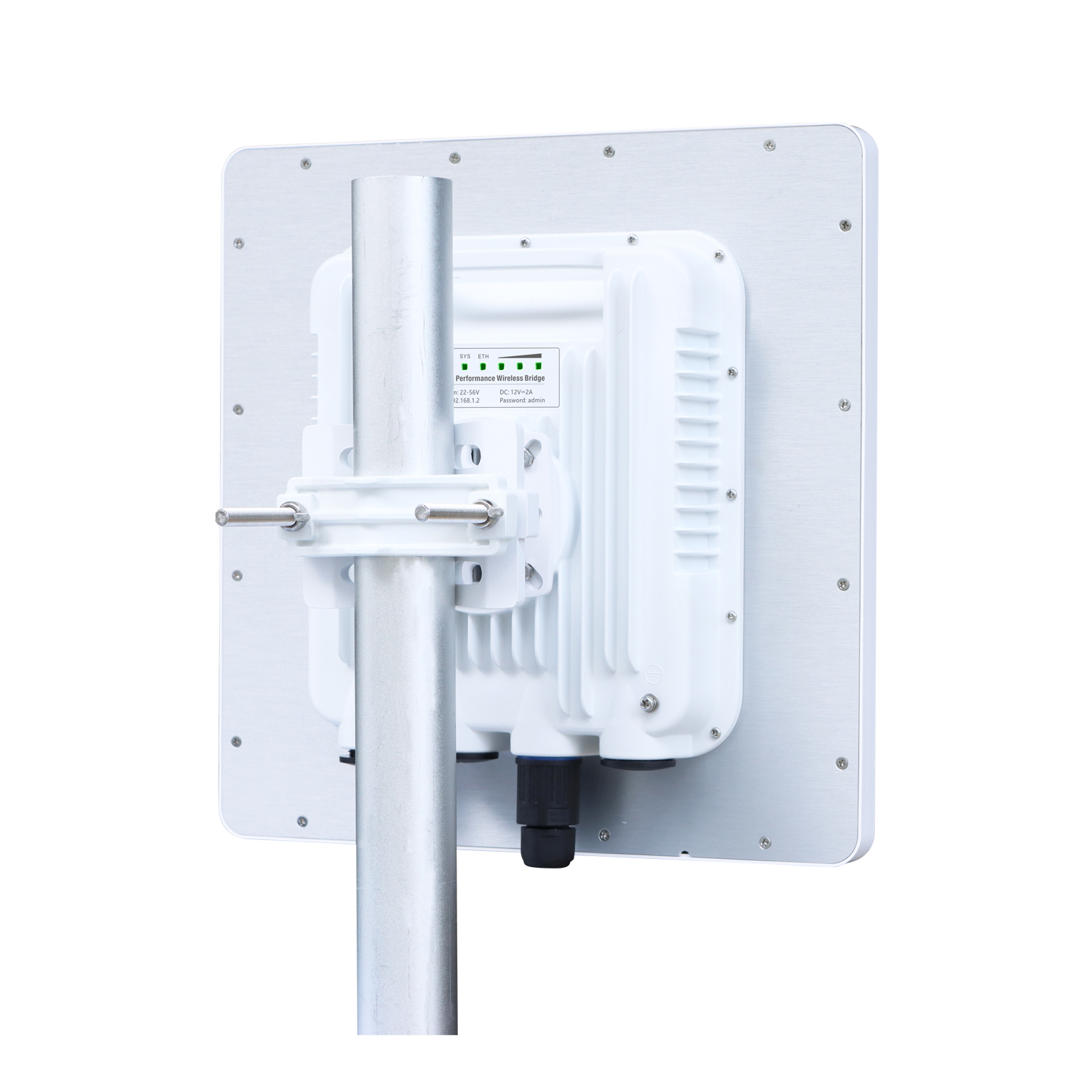

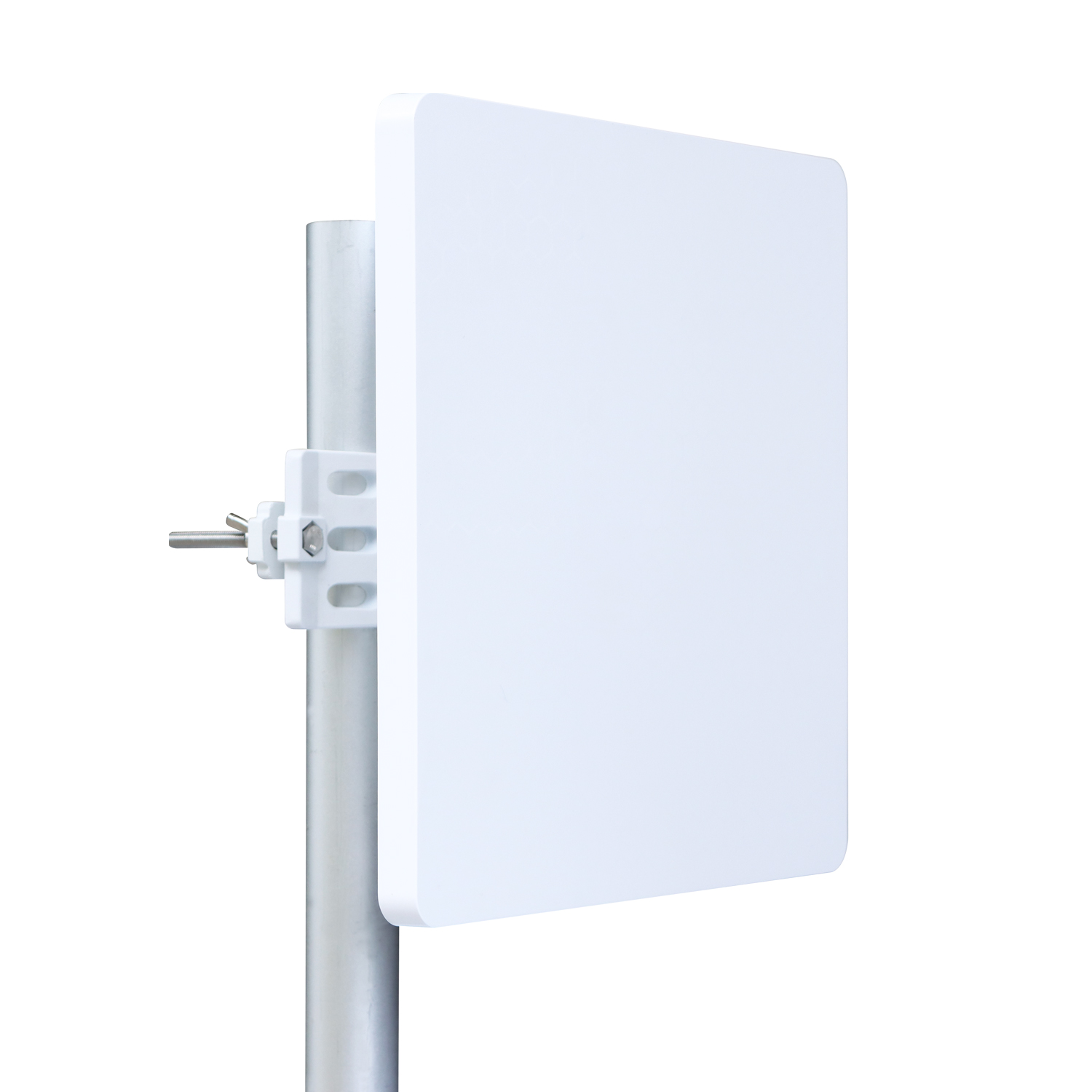

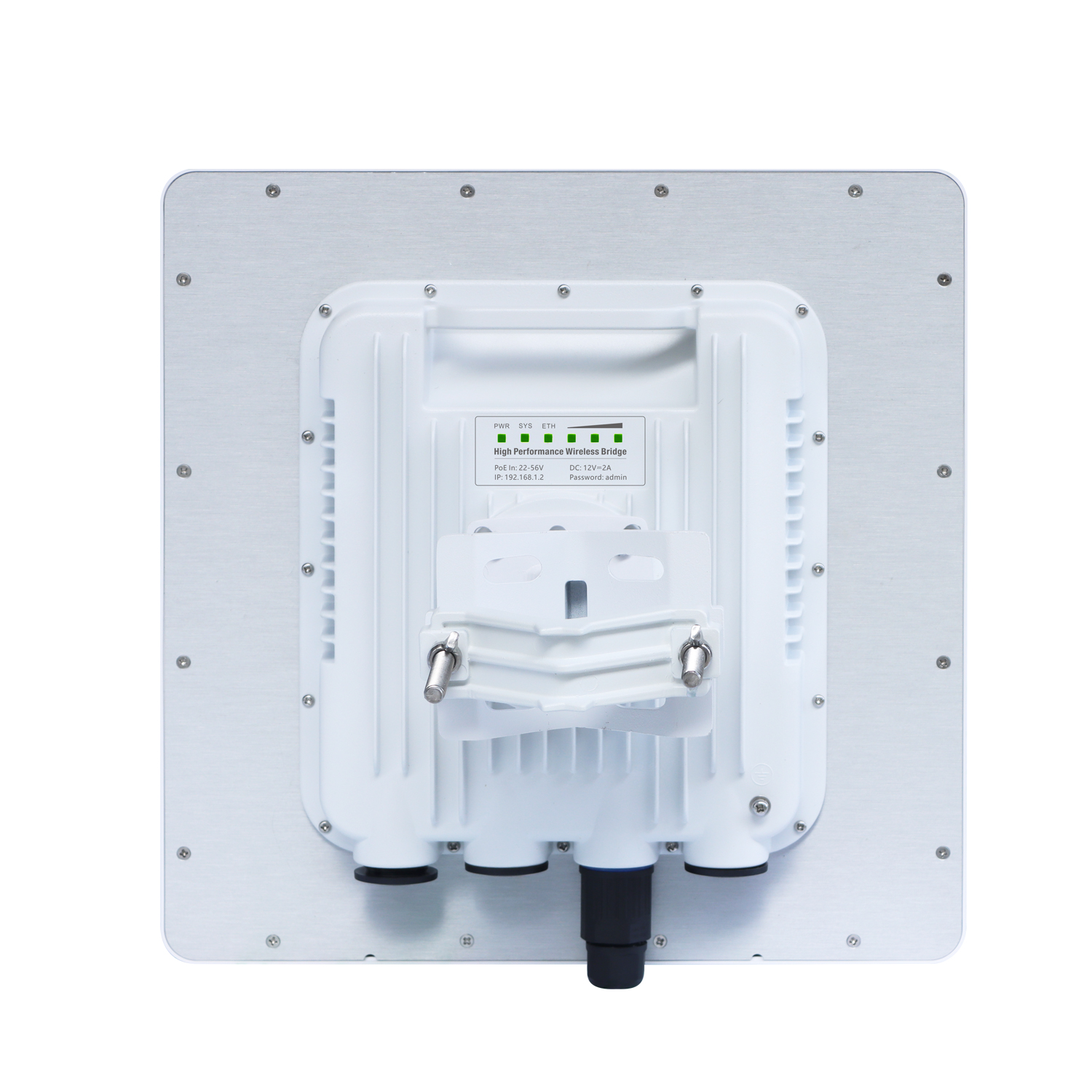

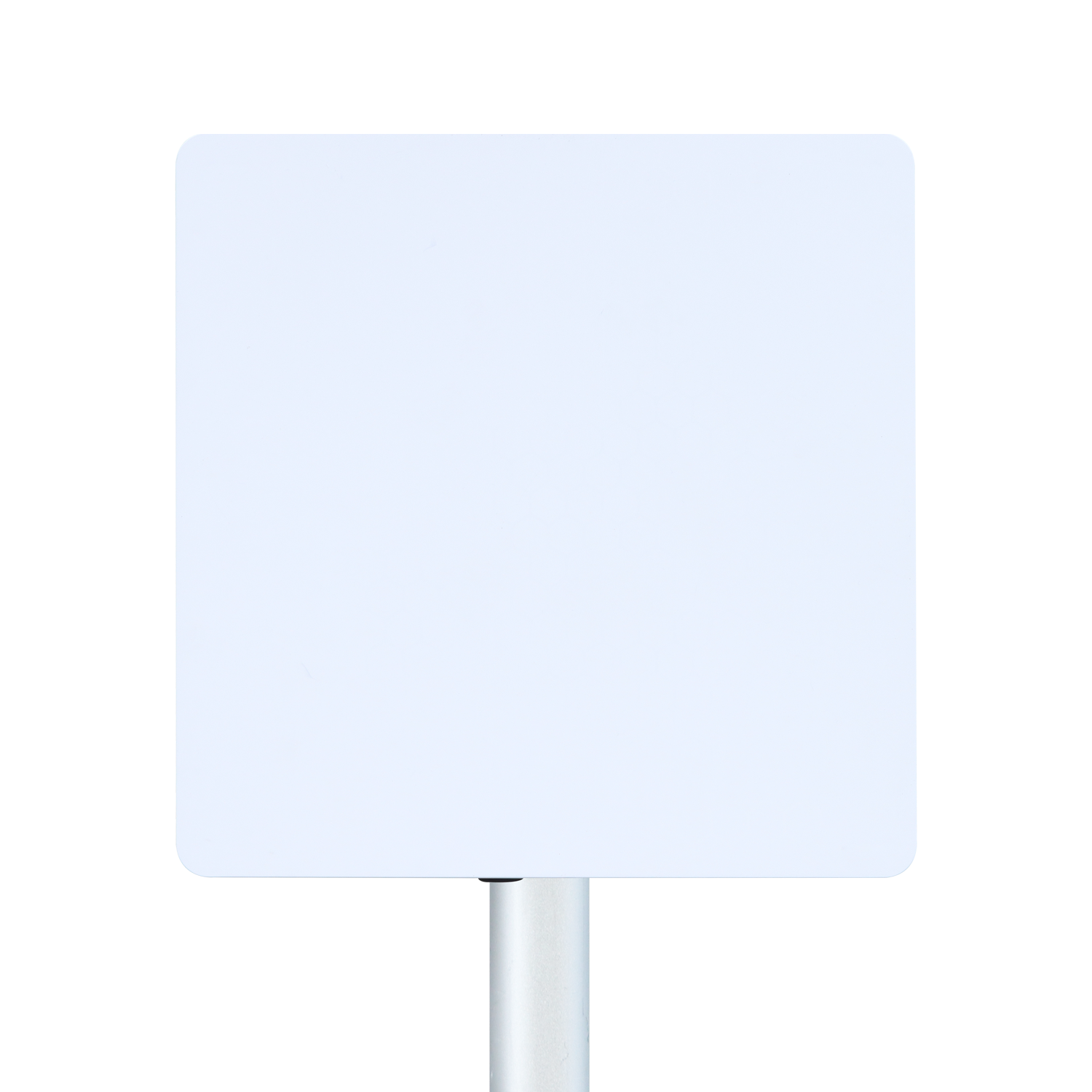

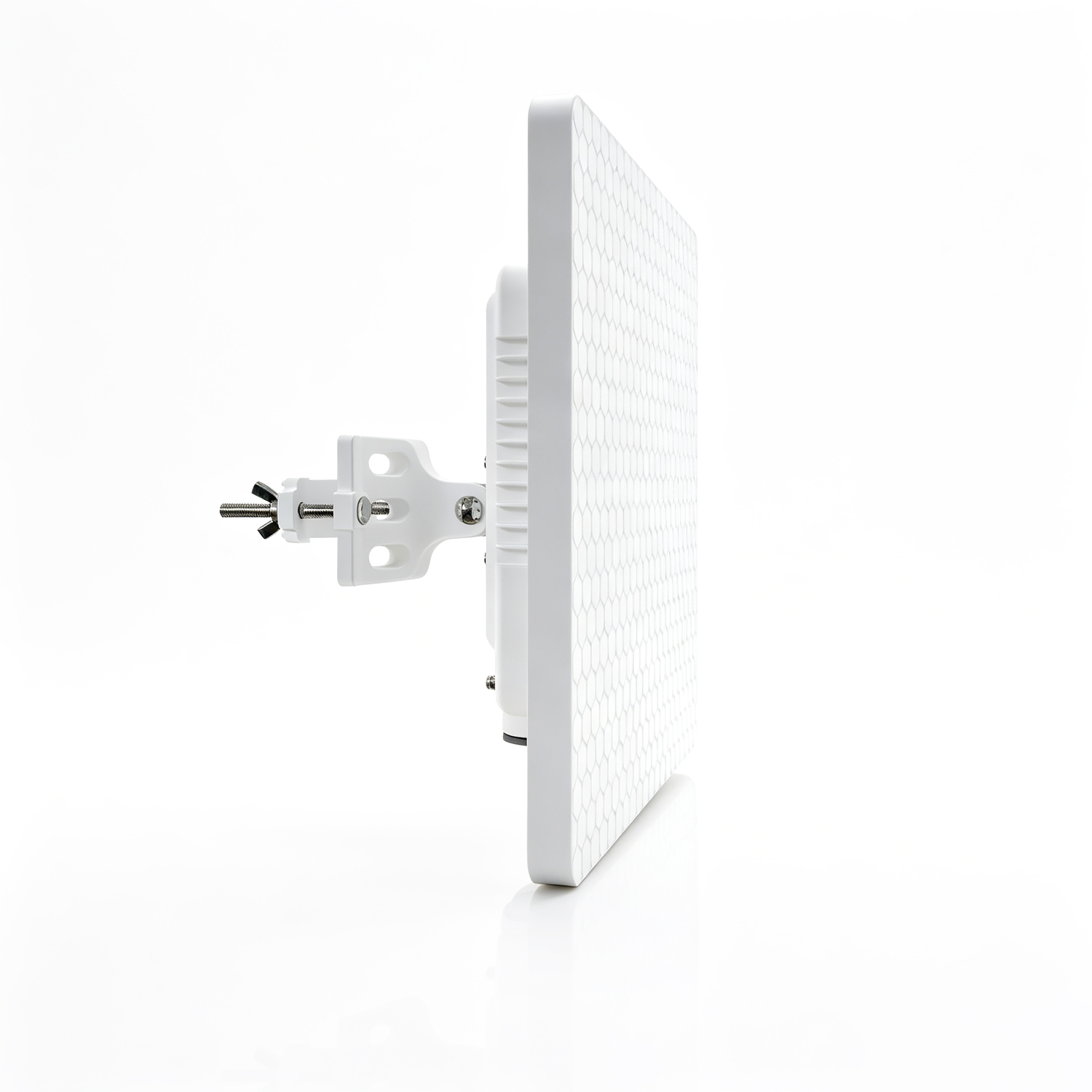

Product Overview

The PanelBridge is one of the industry’s fastest unlicensed backhaul solutions. It’s ideal for short to mediumrange relay and tower links, custom-engineered collocation, and unlicensed 5.15-5.85 GHz spectrum. the PanelBridge achieves low latency and speeds up to 1.7 Gbps, with advanced interference mitigation ensuring high reliability.

WIS OS

The full-featured operating system makes the devices ideal for WISPs and operators, enabling low latency and high packets-per-second performance.

The QoS (Quality of Service) mechanism prioritizes mission-critical data and ensures efficient transmission of real-time traffic, such as voice and video.

Essential tools-such as a spectrum analyzer, device discovery, and antenna alignment-are included.

WIS OS

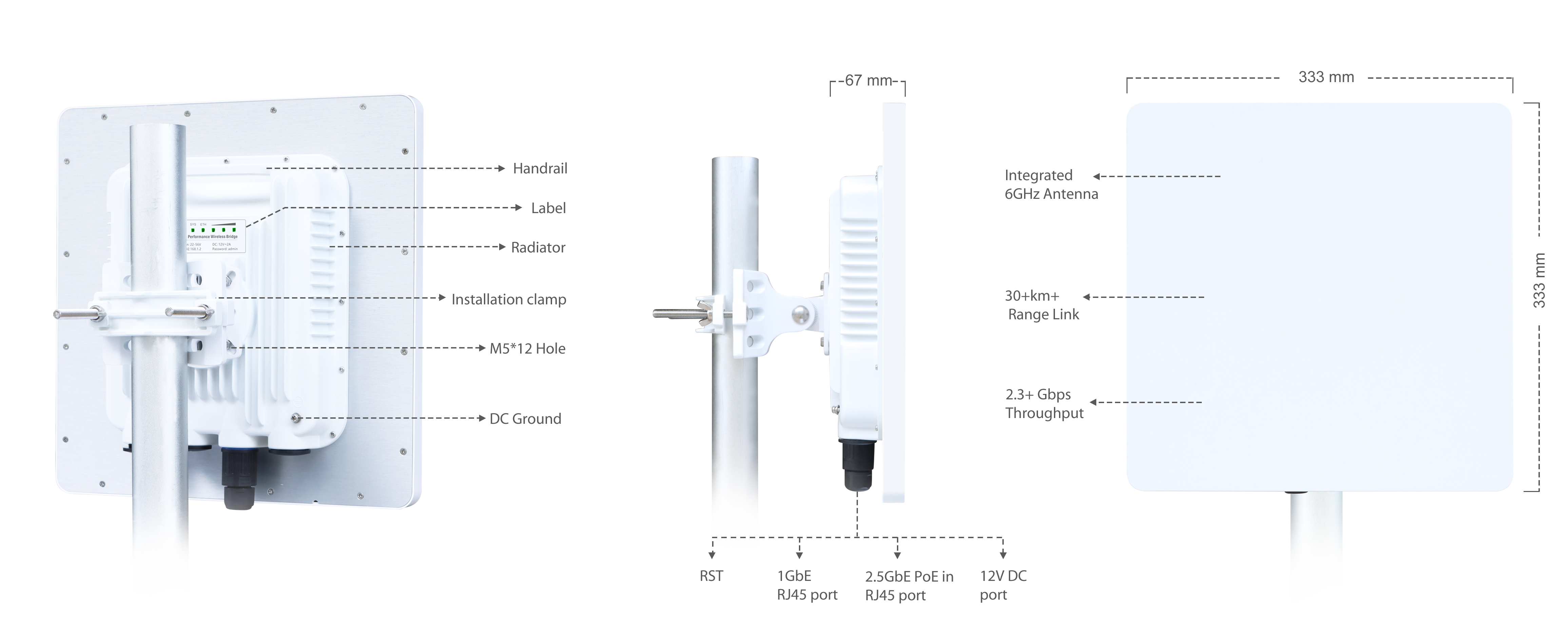

Hardware Overview

Technical Specifications

Performance	Environmental
• Max Throughput:	• Outdoor Ingress Protection Rating: IP67
Up to 1.7Gbps	• Operating Temperature: -40°C to +65°C
• Wireless Protocols:	• Operating Humidity: 5 to 100% condensing
PTP. PTMP TDMA	• Operating Altitude: 4,420 m (14,500’) maximum
• Low Latency:	• Shock and Vibration: ETS 300-019-2-4 class 4M5
<1 ms in auto mode

Radio	Features
• Modulation: 2x2 MU-MIMO; OFDMA;1096QAM	• Gigabit Ethernet: 10/100/1000/2500 BASE-T(Support POE IN 802.3af/at)
• Bandwidth: 160MHz aggregate channel capacity	• DC: 12V
• Max Output Power: 27 dBm	• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels;
• Frequency Range: 5150–5850 MHz Restricted by country of operation	• Management Services: Cloud, SNMPv2 & TR069,Web UI
• Sensitivity (MCS 0):	• Wireless Security: WPA3-PSK，WPA3 & WPA2-PSK, WPA2-PSK，WPA2-Radius
-87 dBm @160 MHz	• QoS: 4 classes of QoS, with user configurable priority queuing,
-90 dBm @ 80 MHz	• Network Mode: Bridge/Router
-93 dBm @ 40 MHz	• VLAN: 802.1Q
-96 dBm @ 20 MHz	• DHCP: DHCP Server、DHCP Client

Radio Specifications

Model	X523C
Hardware
CPU	IPQ5312 Qualcomm Quad A53 @ 1.1GHz
Operating Frequency	5.18-5850GHz
Wireless Standards	Wi-Fi 6/802.11ax
Channel Width	20\|40\|80\|160MHz
Wireless Max data rate	1.7Gbps
Proprietary Physical Layer	2x2 MIMO
Networking interface	12.5Gigabit Ethernet+1Gigabit Ethernet
SFP	N/A
TX Power	27dBm
Antenna Gain	23dBi Dual Linear
Antenna Beam width	11deg
LEDs	1Power, 1SYS, 3*Wi-Fi
Power Supply	802.3af/at, or DC 12V
Power Consumption	<16W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Size	33333367mm
Weight	2.5kg
PTP Link Distances	30km+
Temperature	-40°C to 65°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Wireless Security	WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP）
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069,SSH,
VLAN	802.1Q
DHCP	DHCP Server、DHCP Client

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
