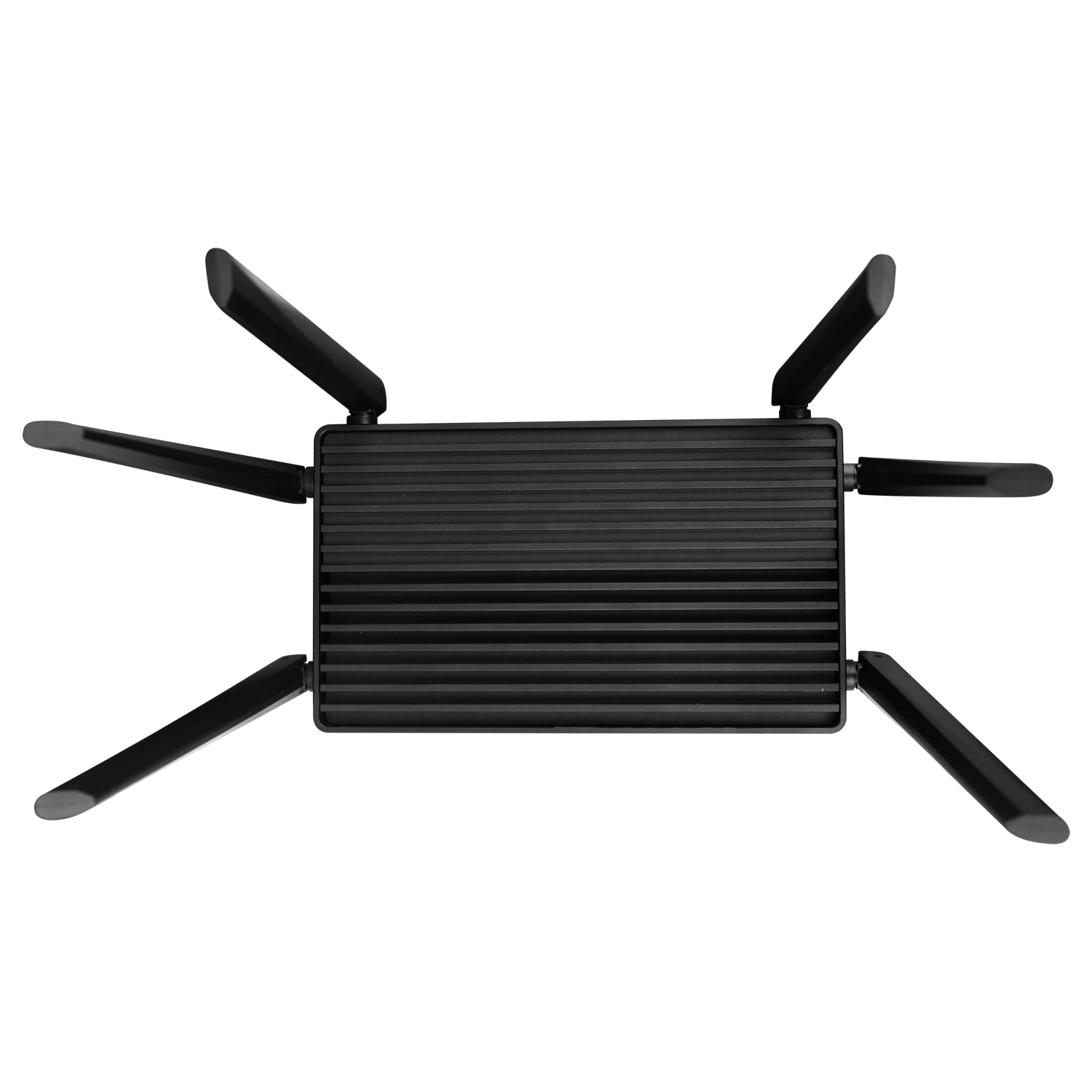

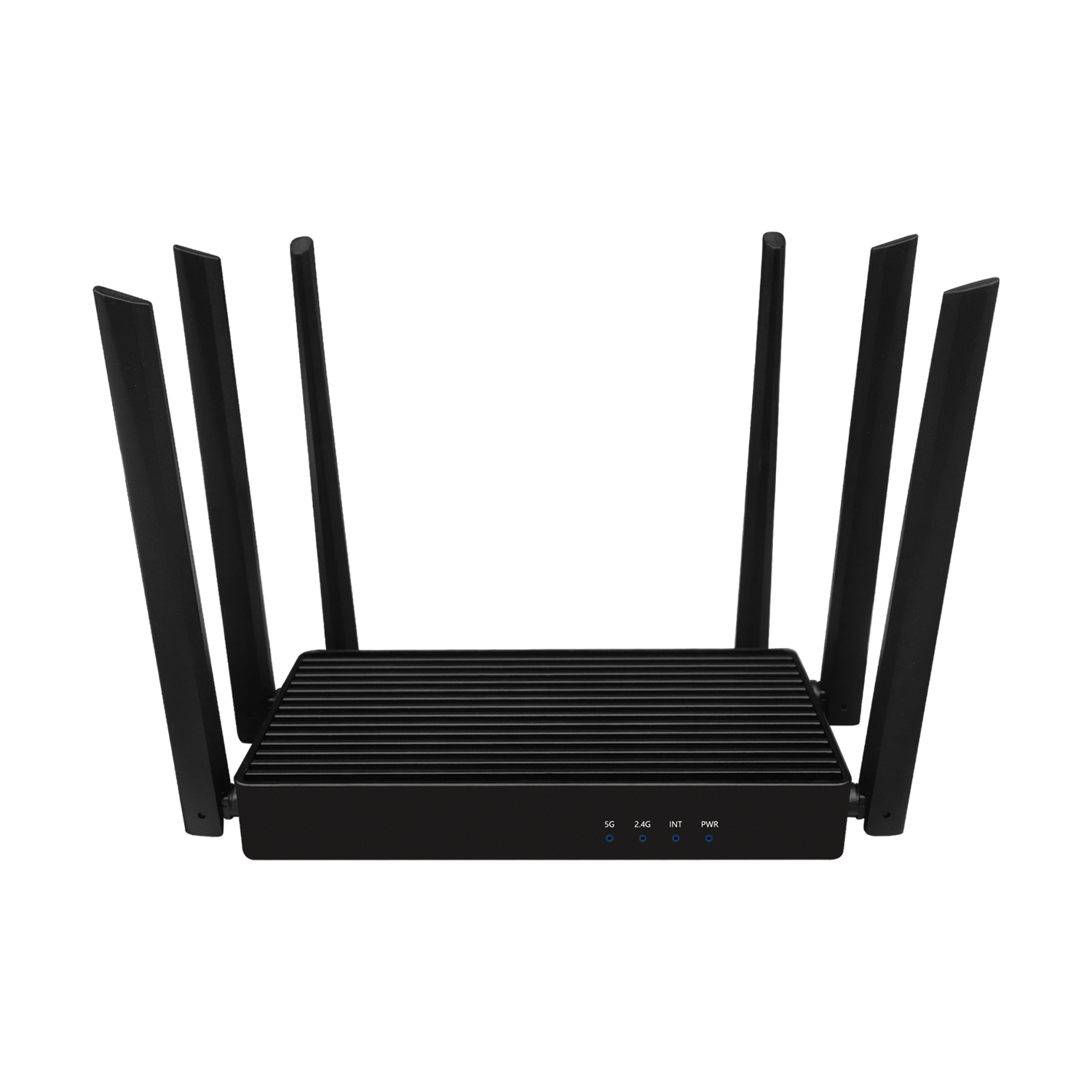

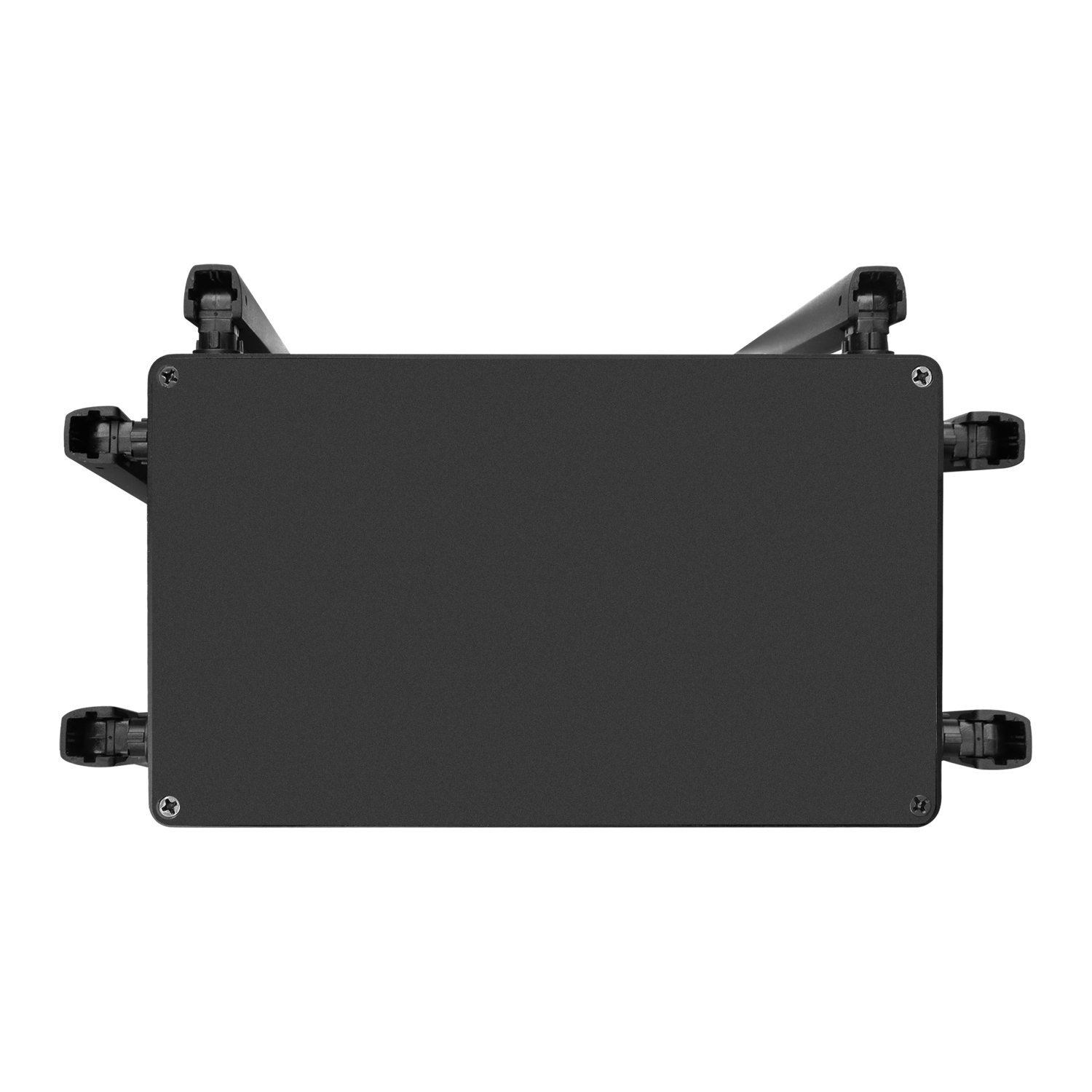

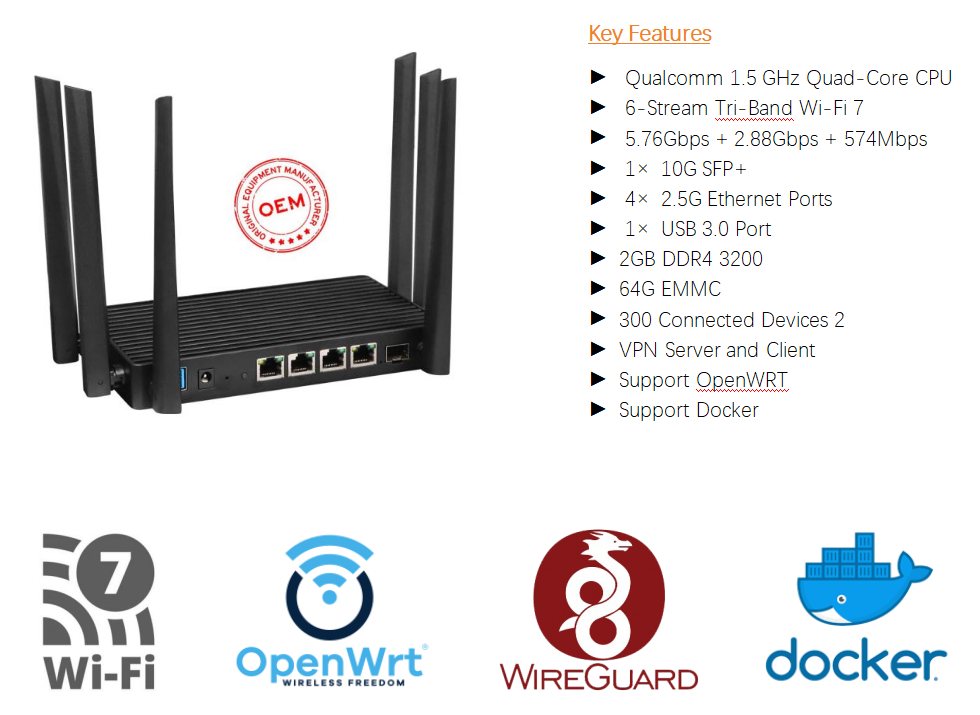

BE6 Tri-Band WiFi 7 Router

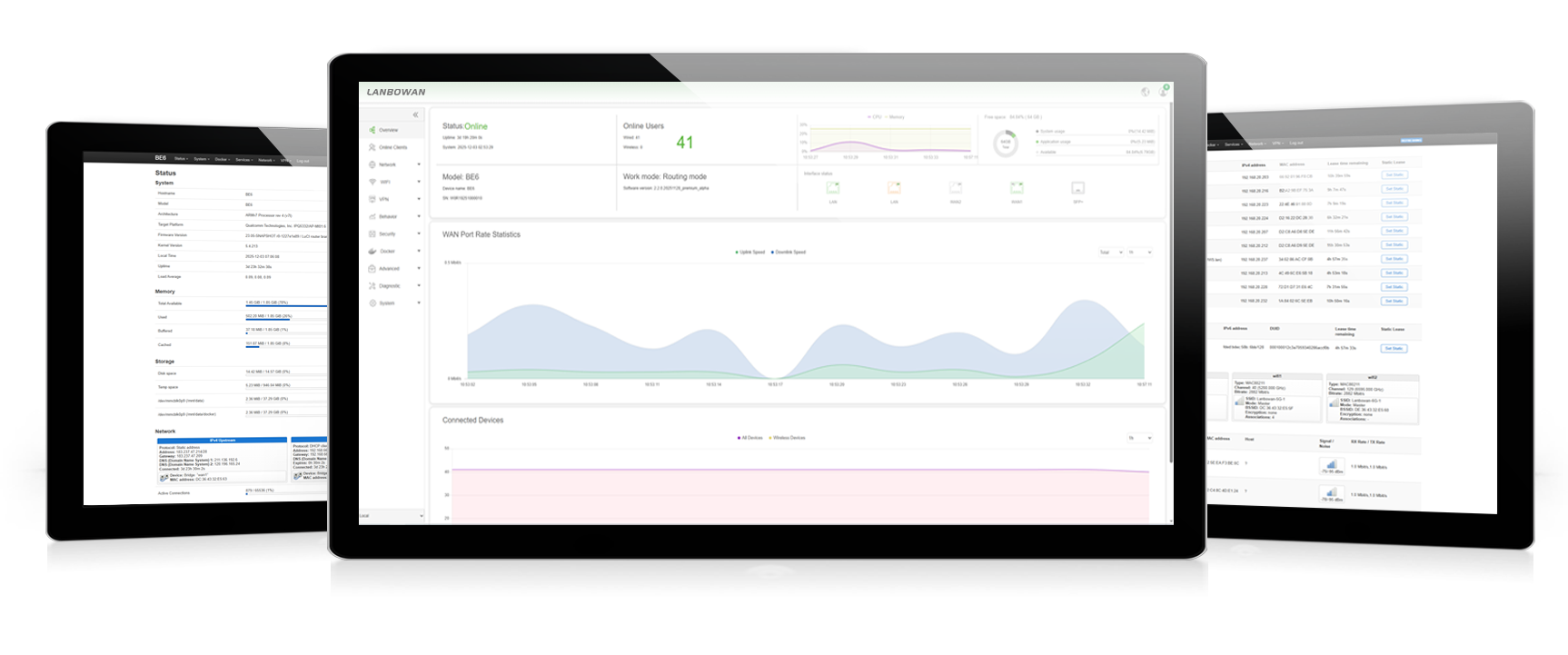

The OS is a stand-alone operating system based on Linux kernel. It powers Lanbowan hardware devices.
It can also be installed on a PC and will turn it into a router with all the necessary features - routing, firewall, bandwidth management,
wireless access point, backhaul link, hotspot gateway, VPN server and more.
|
HARDWARE |
BE6 |
|
Main Chipset |
Qualcomm Cortex-A73@1.5GHz, Quad-core IPQ5322 |
|
Size of RAM |
2 GB |
|
EMMC |
64GB |
|
Wi-Fi Standard |
IEEE 802.11be/ax 6 GHz |
|
Wi-Fi Speeds |
6 GHz: 5760 Mbps (802.11be) |
|
Antenna Gain |
6*5dBi |
|
Wi-Fi Capacity |
Simultaneously communicates with multiple MU-MIMO clients |
|
MIMO |
6*6 |
|

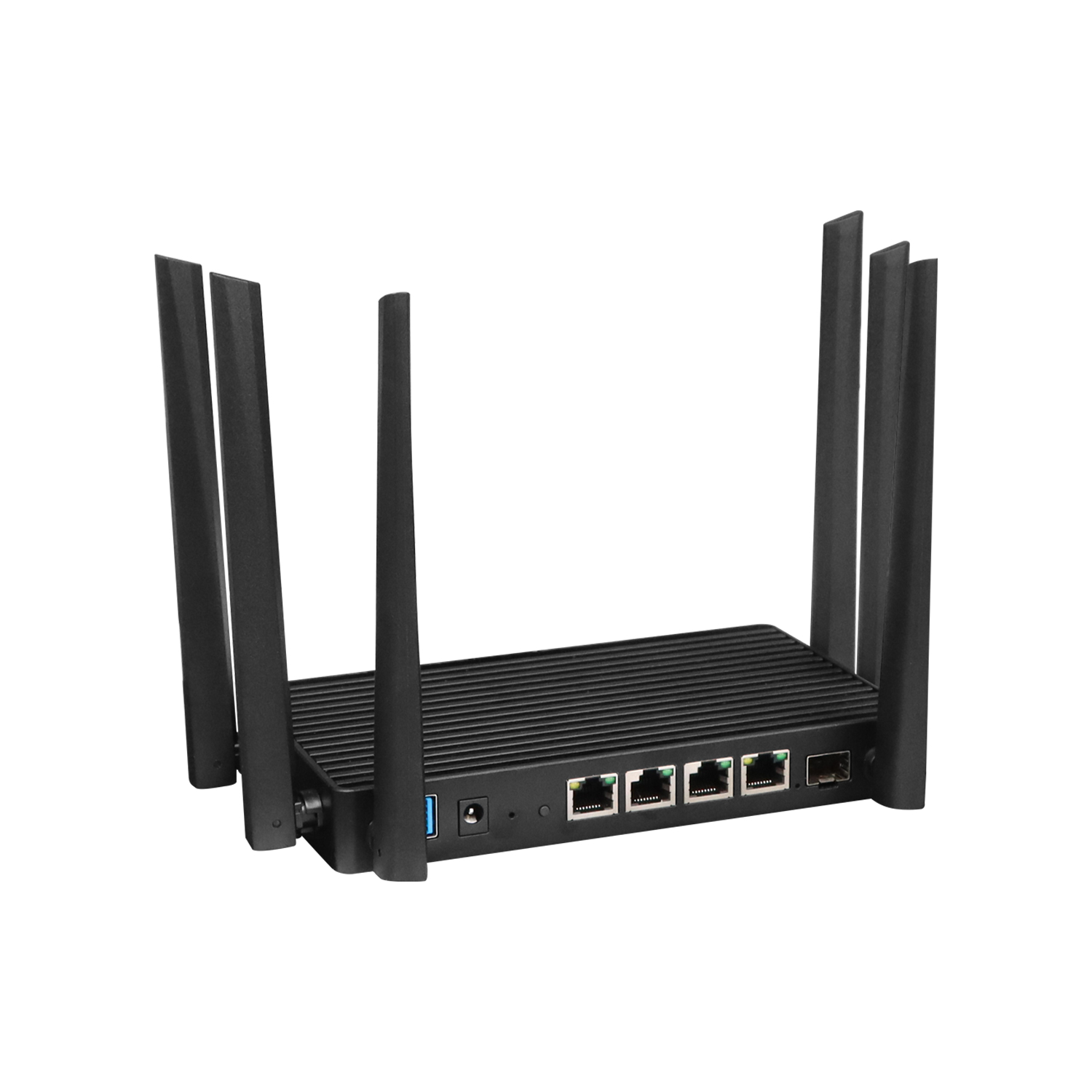

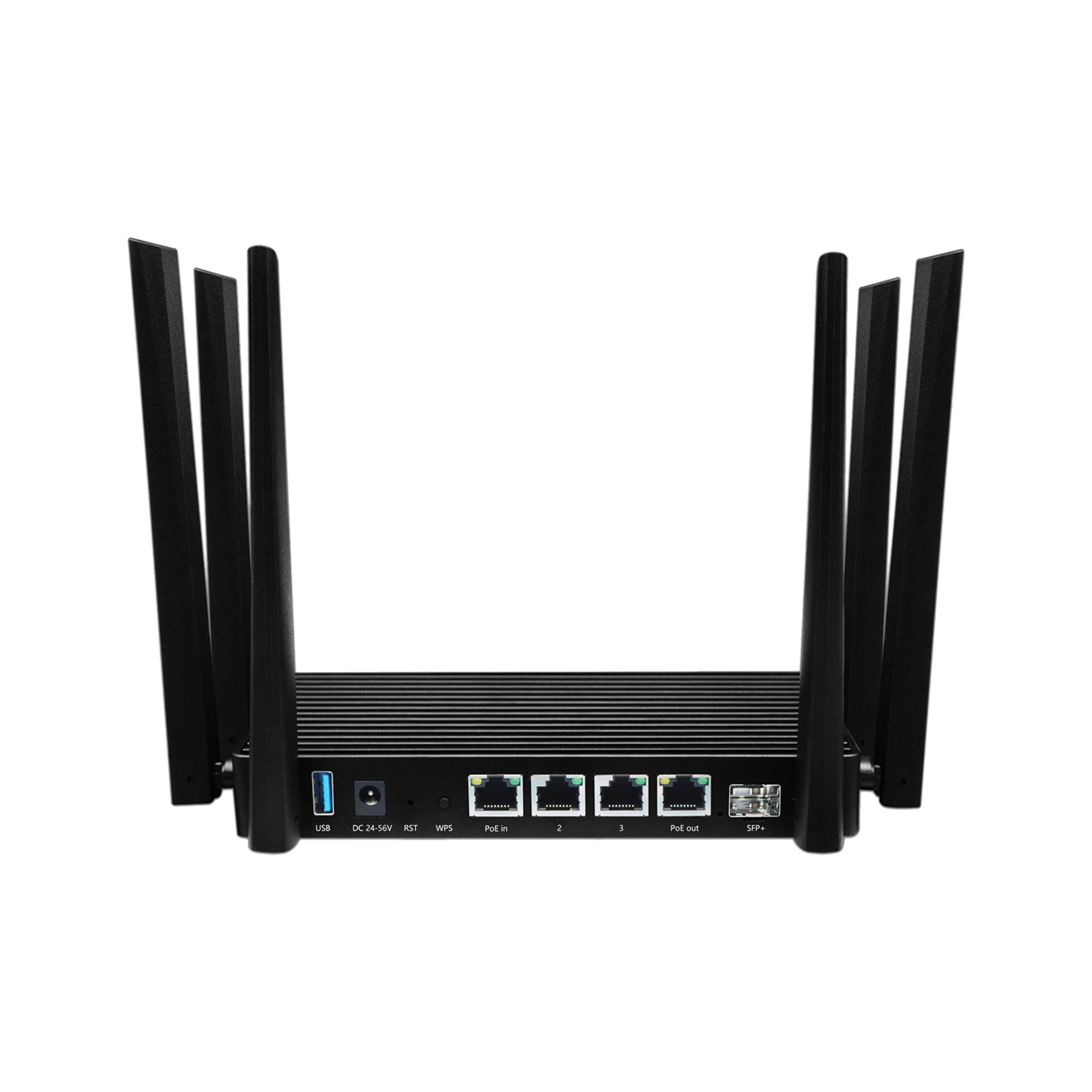

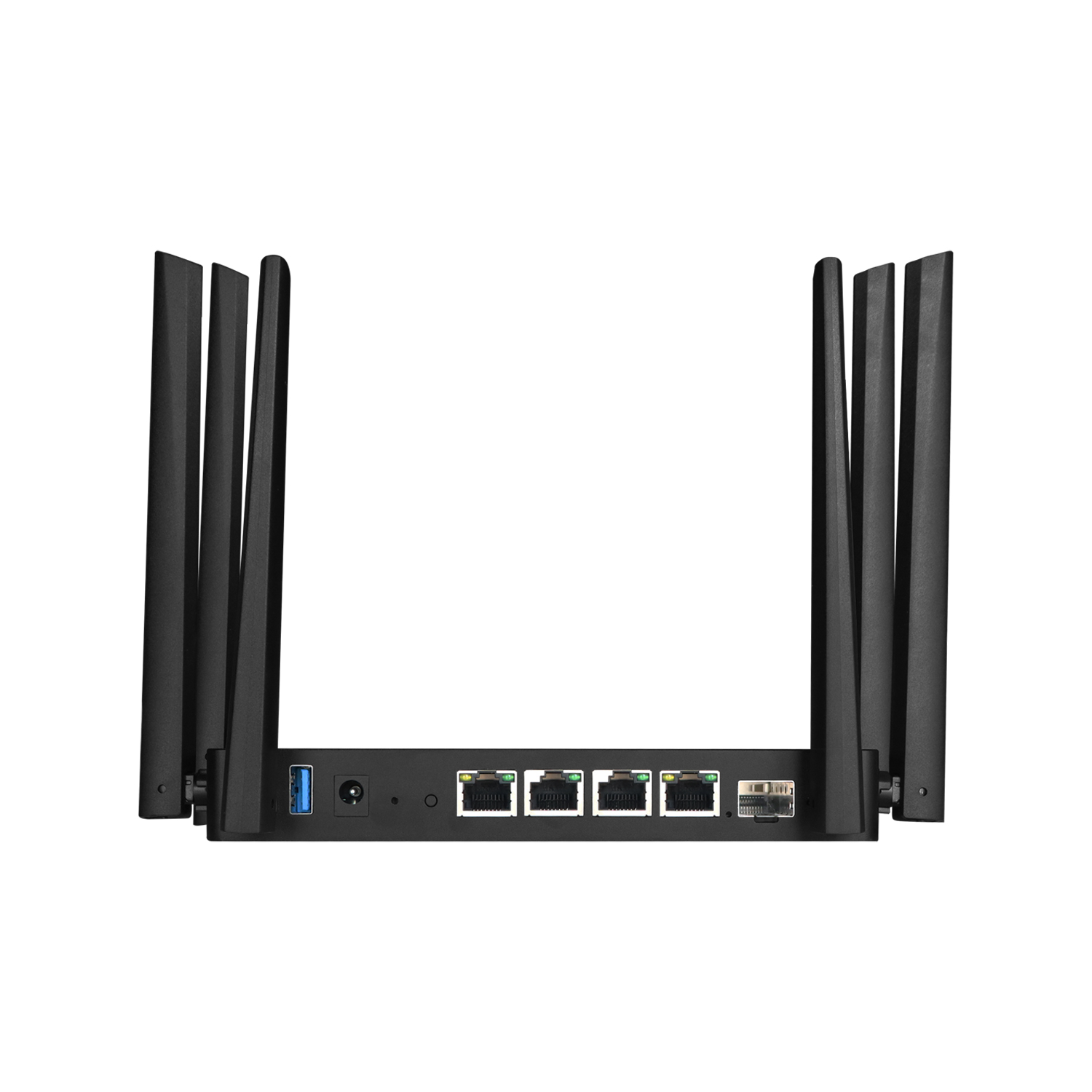

Ethernet Ports |
4*2.5Gbps |
|
FTP Ports |
1*10G SFP |
|
USB Support |
1× USB 3.0 Port |
|
Buttons |
1× Reset 1× WPS |
|
Power Supply |
12VDC / 2A |
|
Led Indicator |
4 |
|
Advanced Functions |
• Multi-Link Operation (MLO) |
|
Powering |
|
|
Number of DC inputs |
2(DC jack, PoE-IN,) |
|
DC jack input Voltage |
24-56V |
|
Max power consumption |
40 W |
|
Max power consumption without attachments |
16W |
|
PoE in |
802.3af/at ( LAN 1) |
|
Cooling type |
Passive |
|
PoE in input Voltage |
36-56V |
|
PoE-out |
|
|
PoE-out port |
WAN 1 |
|
PoE out |
Passive PoE |
|
Low voltage PoE-Out current limit |
1 A |
|
High voltage PoE-Out current limit |
450 mA |
|
Max total out (A) |
1 A |
|
SoftWave |
BE6 |
|
Protocol |
IPv4, IPv6 |
|
OpenWRT |
support |
|
Docker |
support |
|
Wireless Mode |
Router Mode |
|
WAN Type |
• Dynamic IP |
|
Advanced Functions |
• Multi-Link Operation (MLO) |
|
VPN Server |
• OpenVPN Server |
|
VPN Client |
• Open VPN Client |
|
WiFi Encryption |
• WPA |
|
Network Security |
• SPI Firewall |
