DAP6500

Wi-Fi 7 BE6500 High-Density
Directional Outdoor Access Point

  • DAP6500
  • DAP6500
  • DAP6500
  • DAP6500
  • DAP6500
  • DAP6500
  • DAP6500
  • Features

  • Downloads

Feature

◼ BE6500 Dual-Band Wi-Fi 7 (5764Mbps on 5 GHz + 688 Mbps on 2.4 GHz)

◼ 1*2.5G port unlocks the full potential of Wi-Fi 7

◼ Extra-distance access point deployment with SFP+ port.

◼ 320 MHz bandwidth enables many more simultaneous transmissions

◼ IP68 protection, rock-solid in harsh environments.

Outdoor Wi-Fi 7 Access Point

HARDWARE FEATURES

Interface

1× 2.5G Ethernet Port

1*2.5G SFP+

Button

Reset

Power Supply

802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

Max. Power Consumption

18.6 W (For PoE);
16.0 W (For DC)

Dimensions ( W x D x H )

245*223*109mm

Antenna

2.4 GHz: 2*10dBi
5 GHz: 2*13dBi

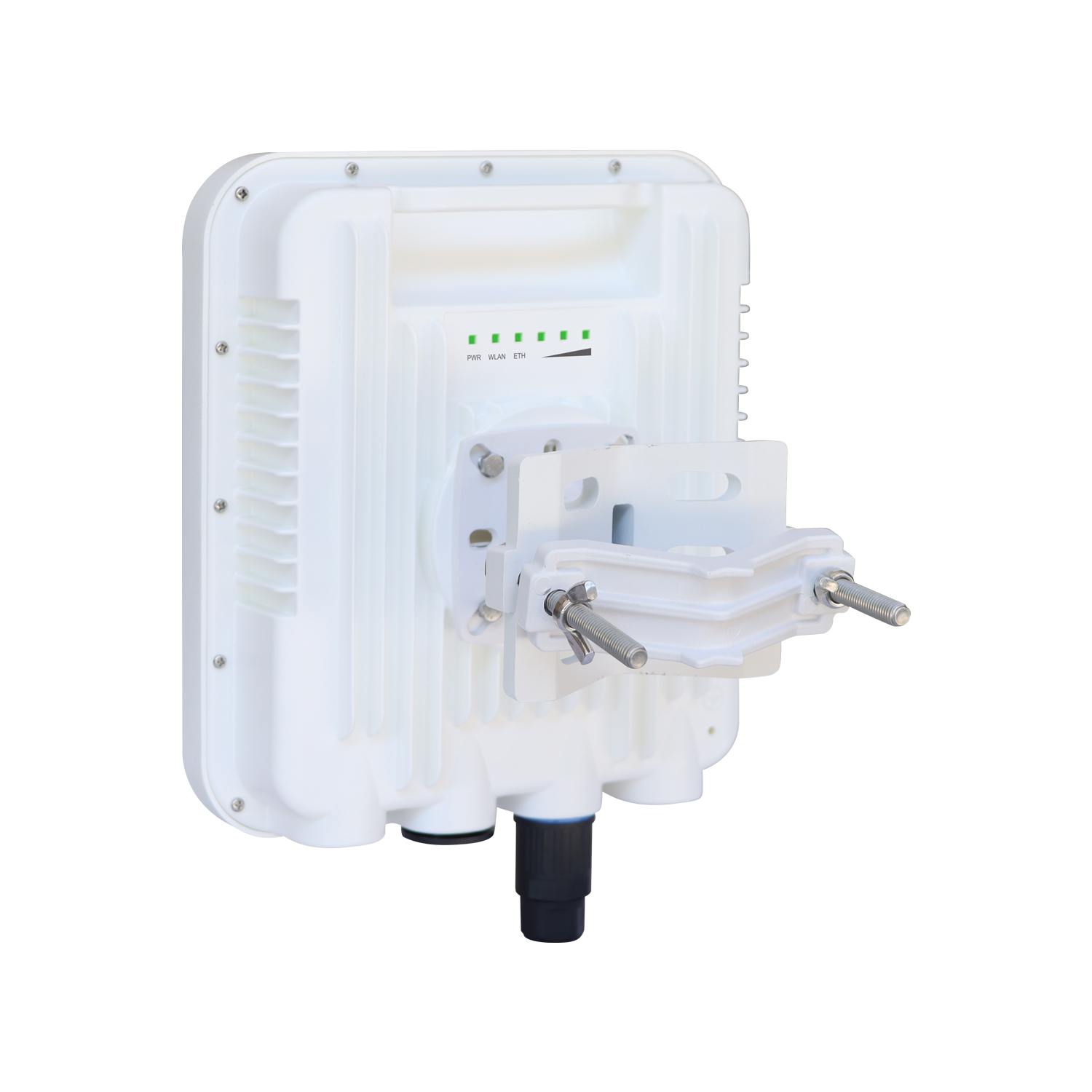

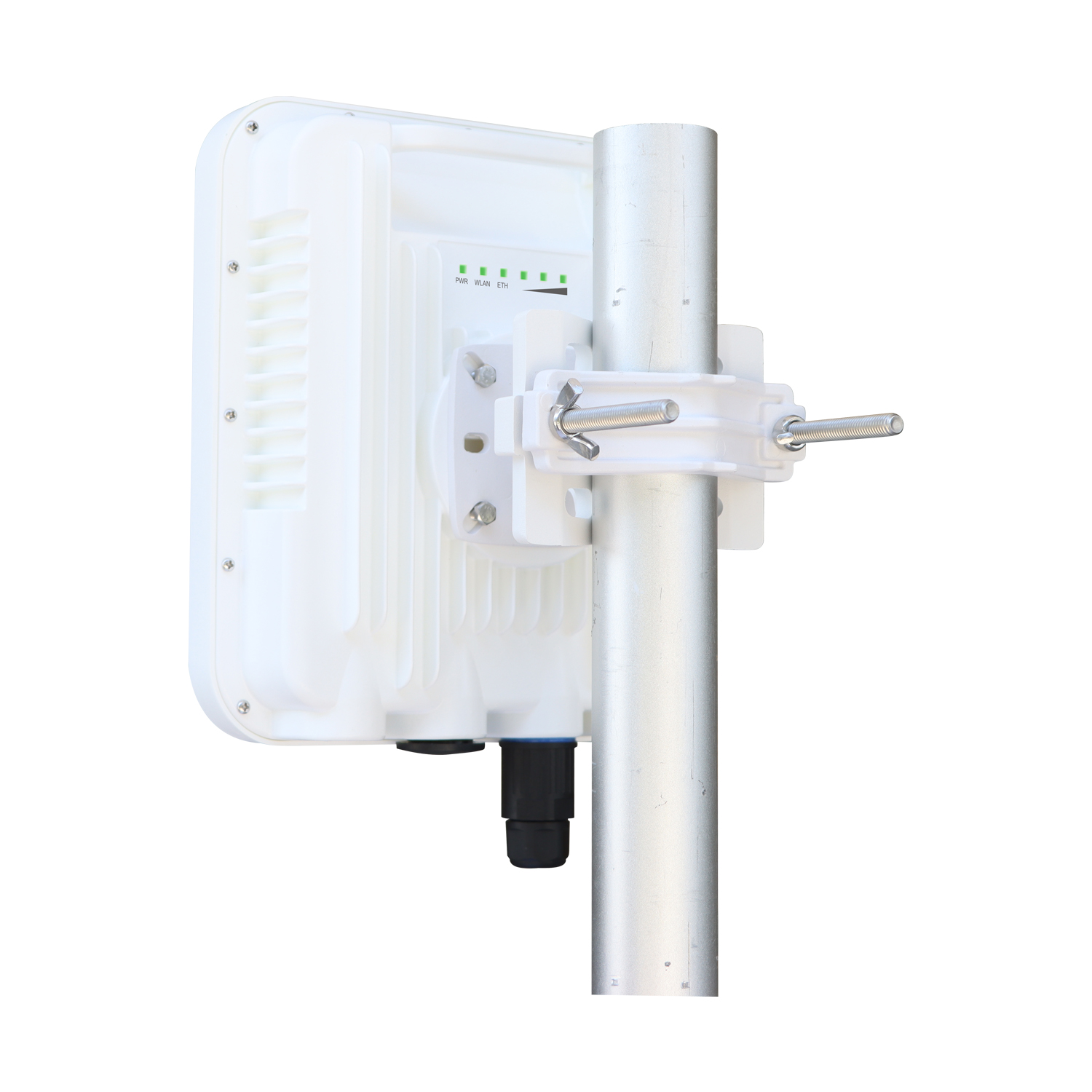

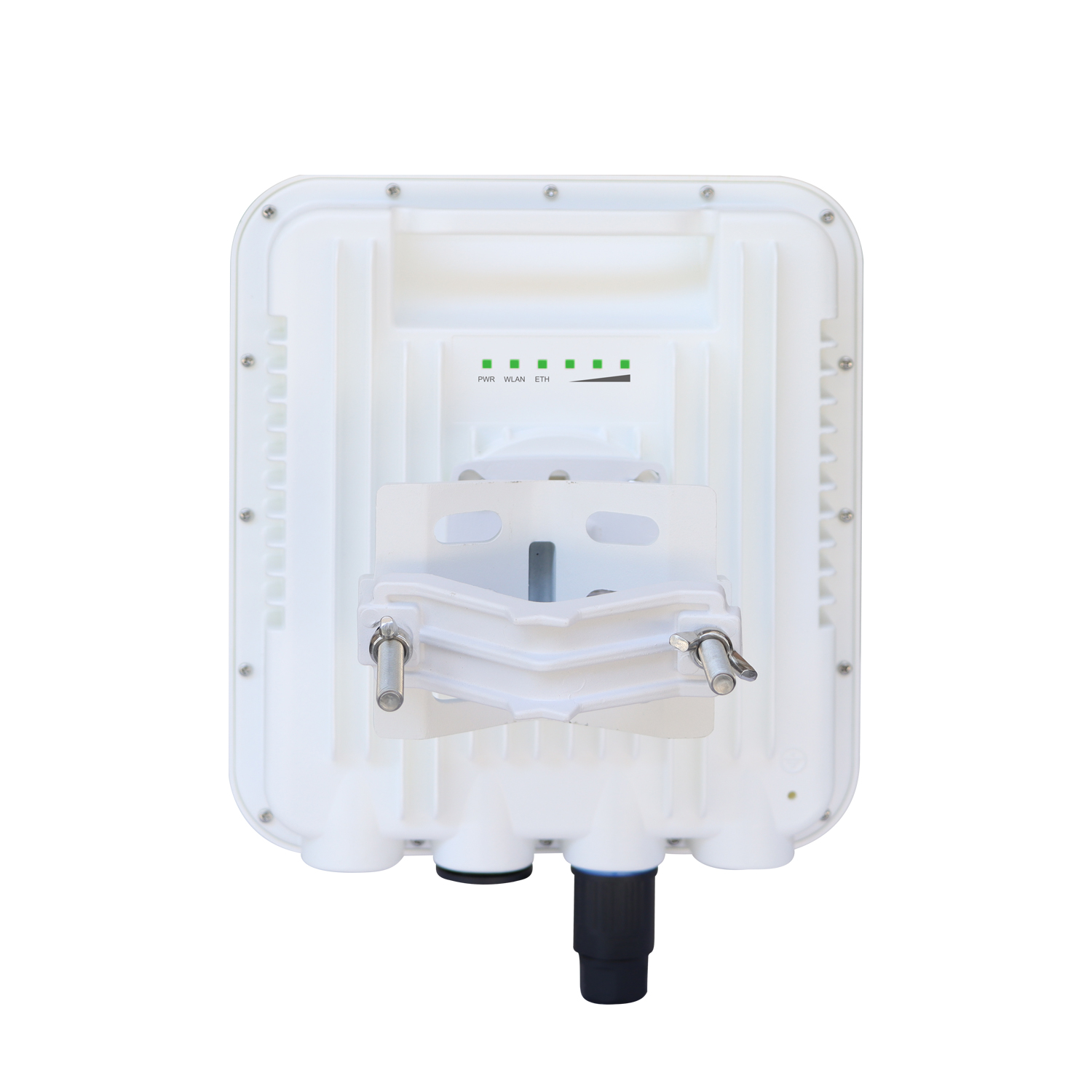

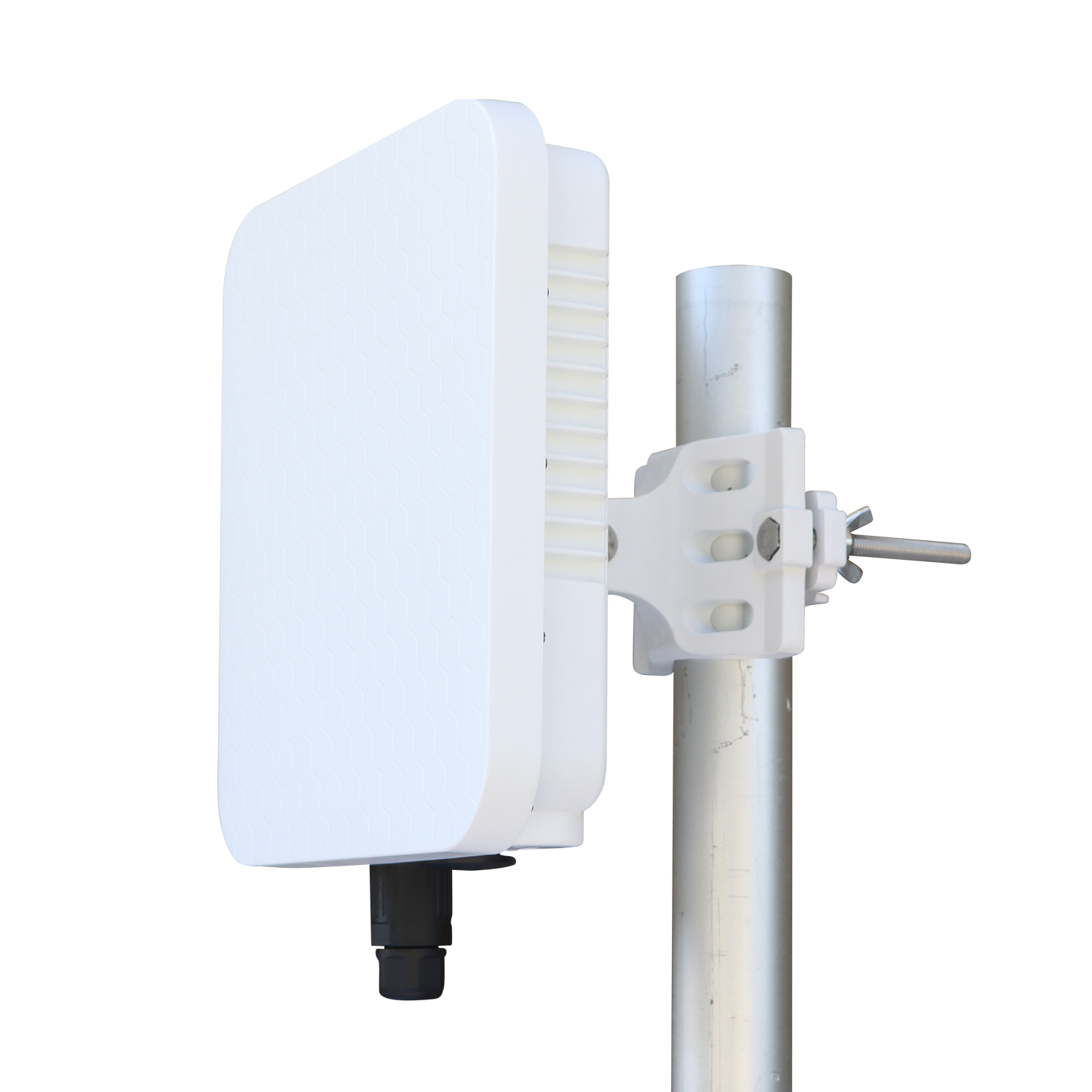

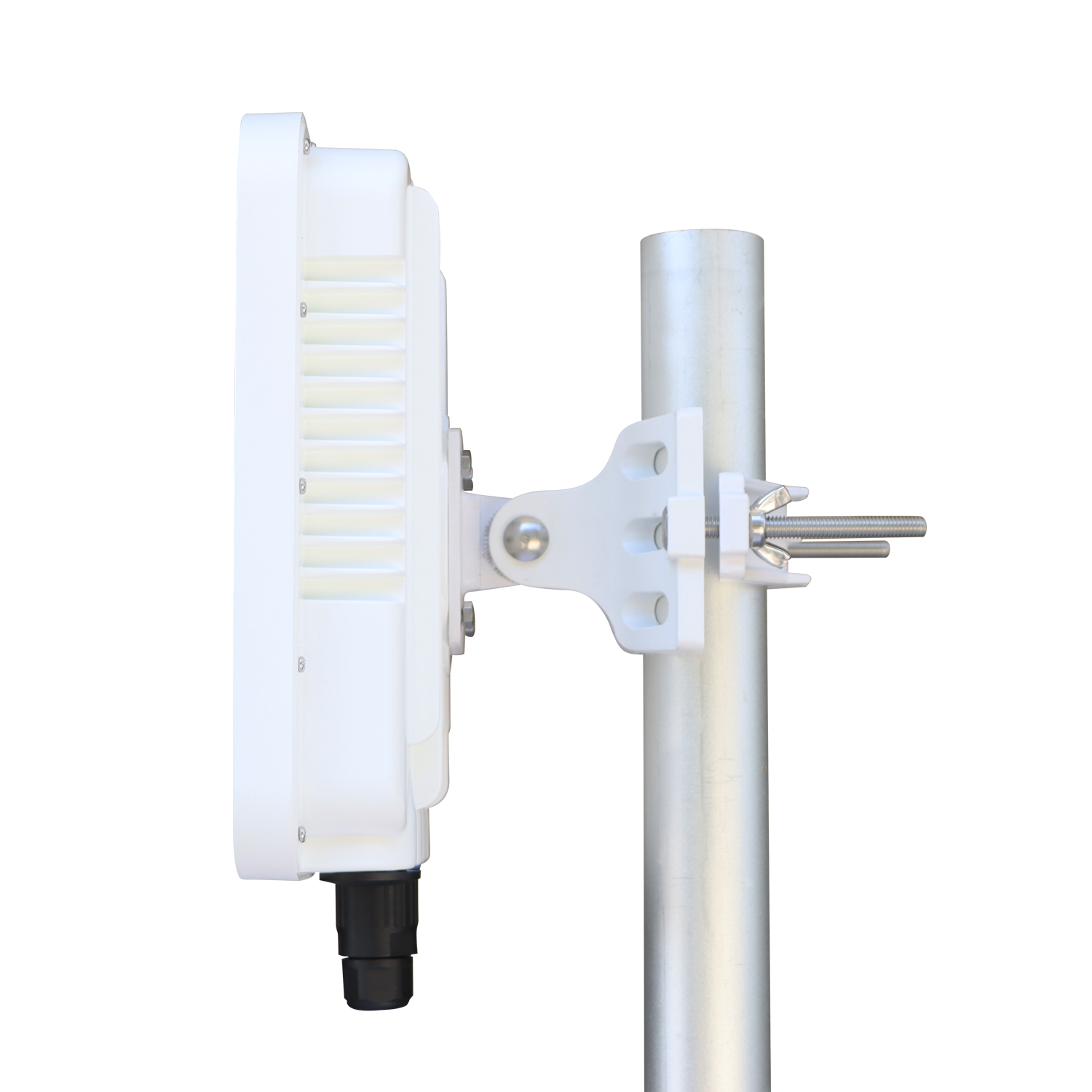

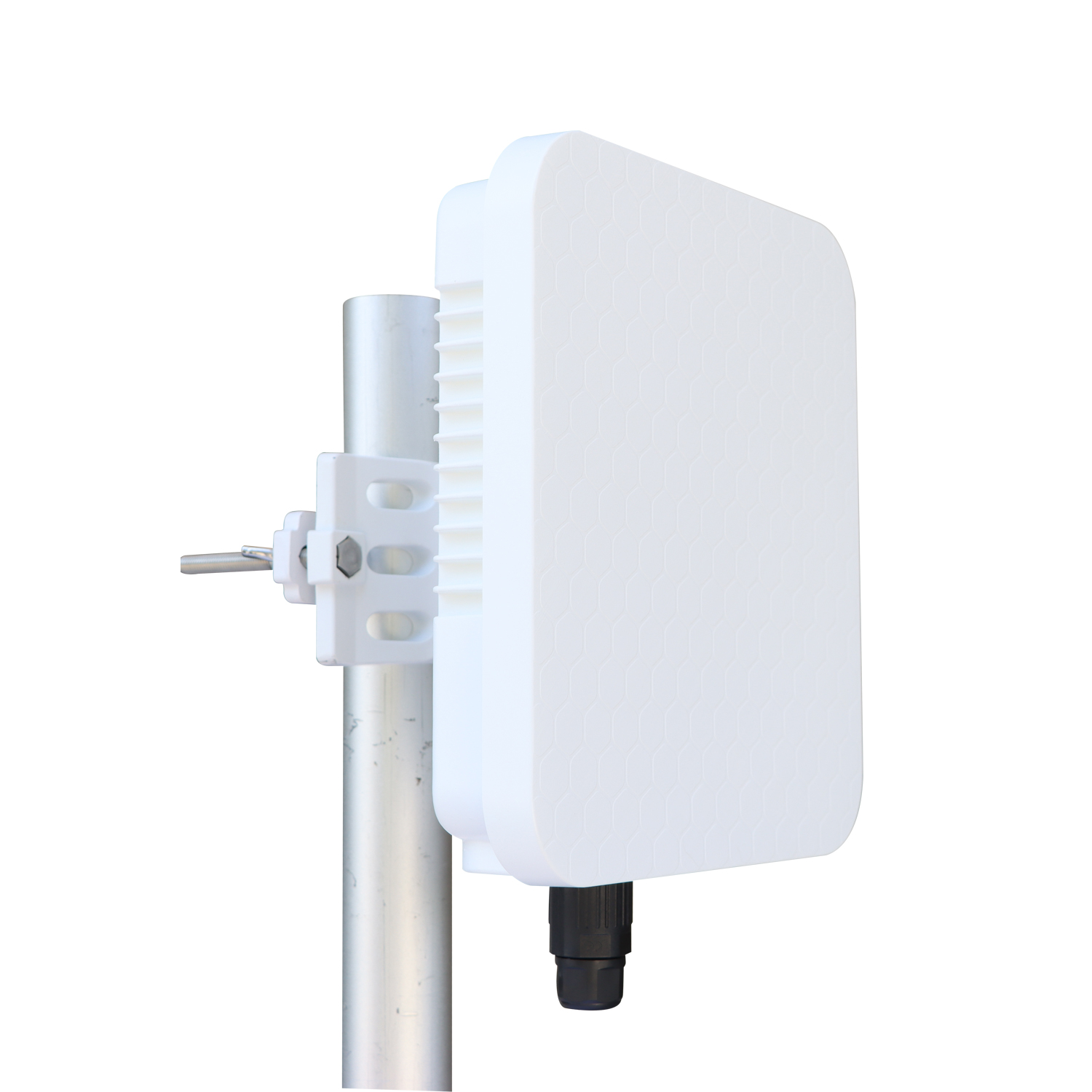

Mounting

Pole-mount

Wireless

Wi-Fi Coverage

MAX 500m

Concurrent Clients

100+

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Channel Width

Auto/20/40/80/160 MHz @5G

Auto/20/40 MHz @2.4G

Frequency

2.4 GHz and 5 GHz

Signal Rate

688Mbps (2.4 GHz) + 5764Mbps (5 GHz)

Max. power consumption

25W

Wireless Functions

 4K-QAM‡
Seamless Roaming
 MU-MIMO
 EHT320
 OFDMA
 Load Balance
 Band Steering Beamforming
 Airtime Fairness
 Multiple SSIDS:16(8 on each band)
 Wireless Schedule
 Reboot Schedule
 QoS(WMM)
 Rate Limit
 Static IP/Dynamic IP
 RADIUS Accounting
 MAC Authentication

Wireless Security

 Captive Portal Authentication△
 Access Control
 Maximum number of MAC Filter: 4,000
 Wireless Isolation Between Clients
 VLAN
 Rogue AP Detection
 WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

max. Transmit Power

< 26 dBm (2.4 GHz,)
< 26 dBm (5 GHz)

Management Features



Centralized Management

 Hardware Controller
 Software Controller

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

Environment

Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing;
