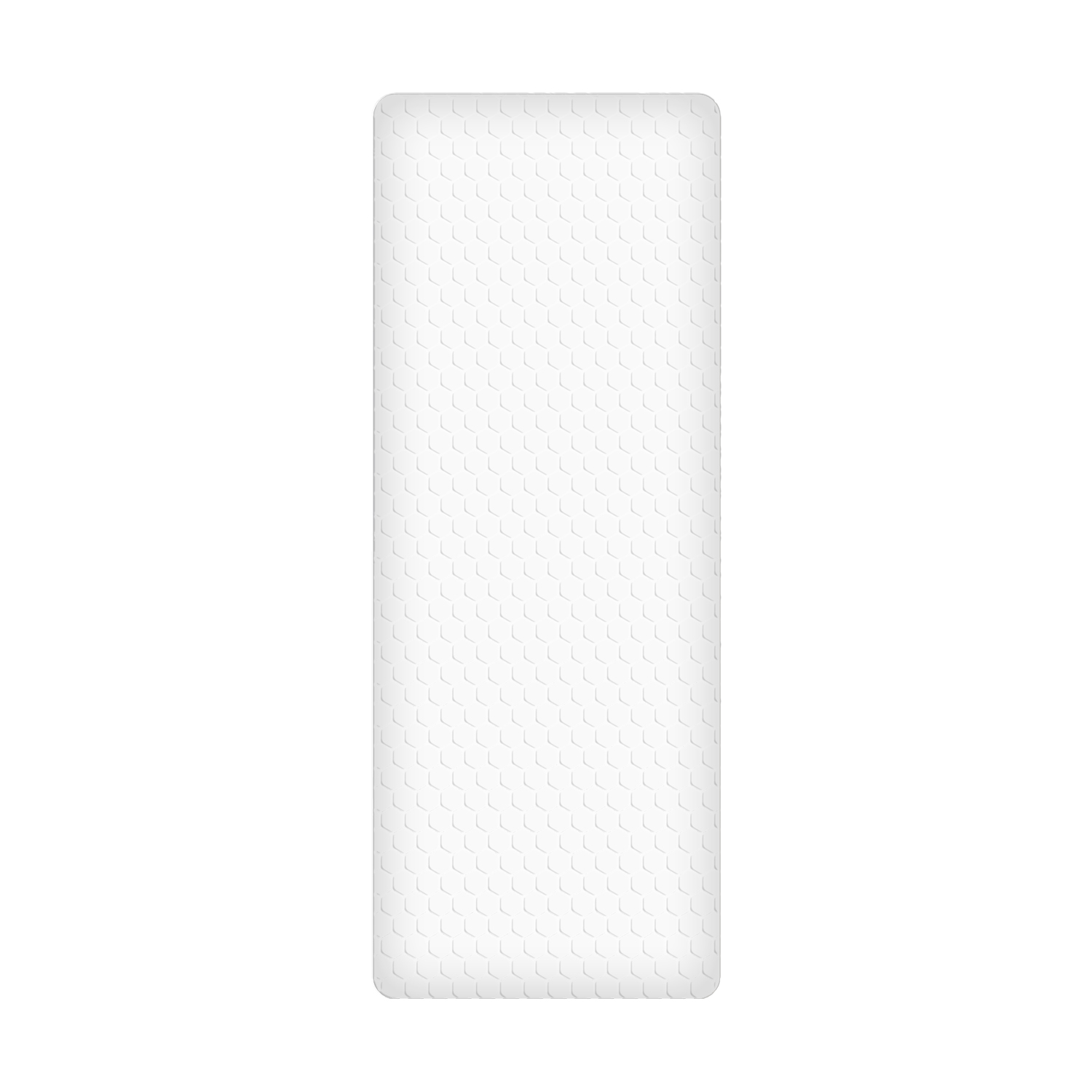

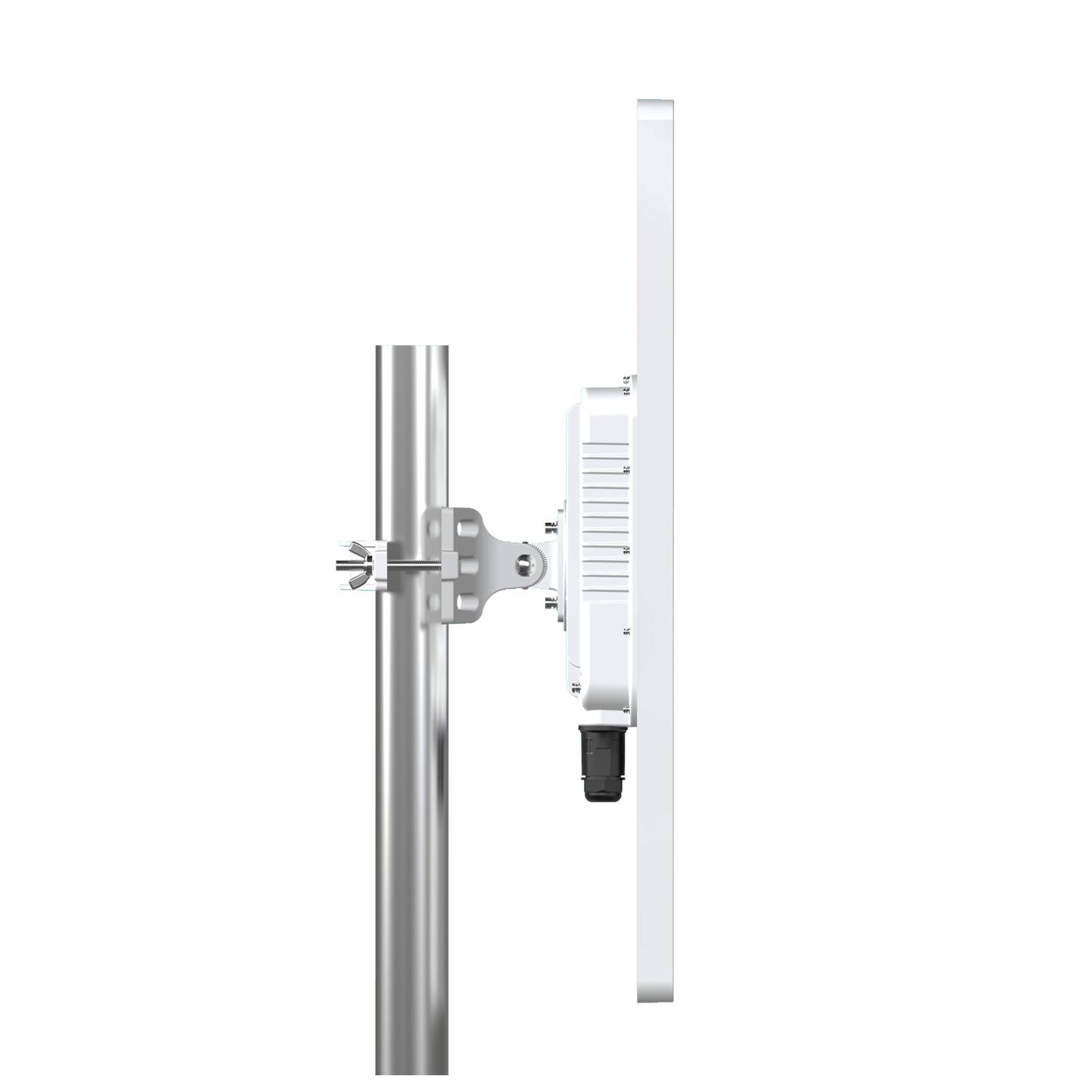

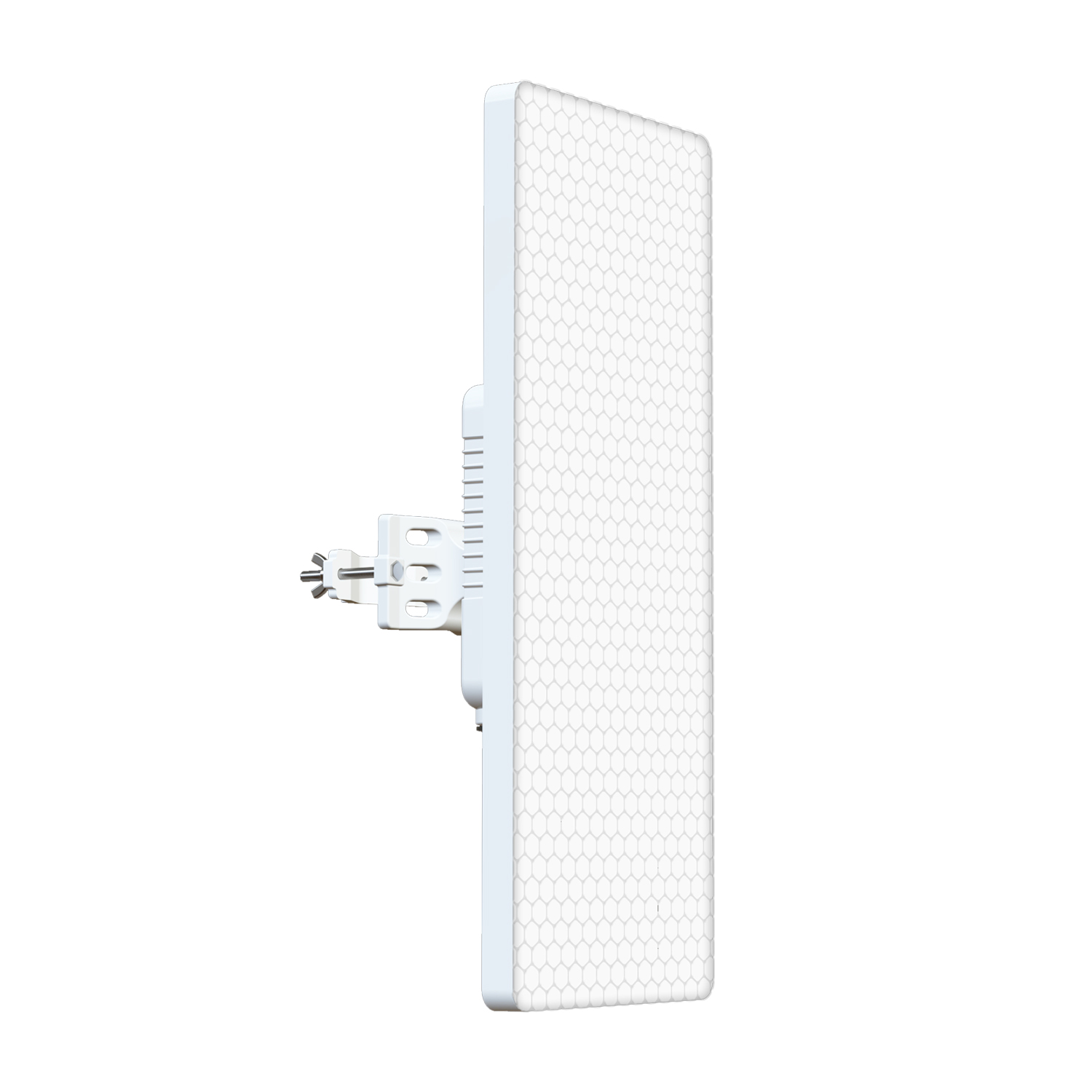

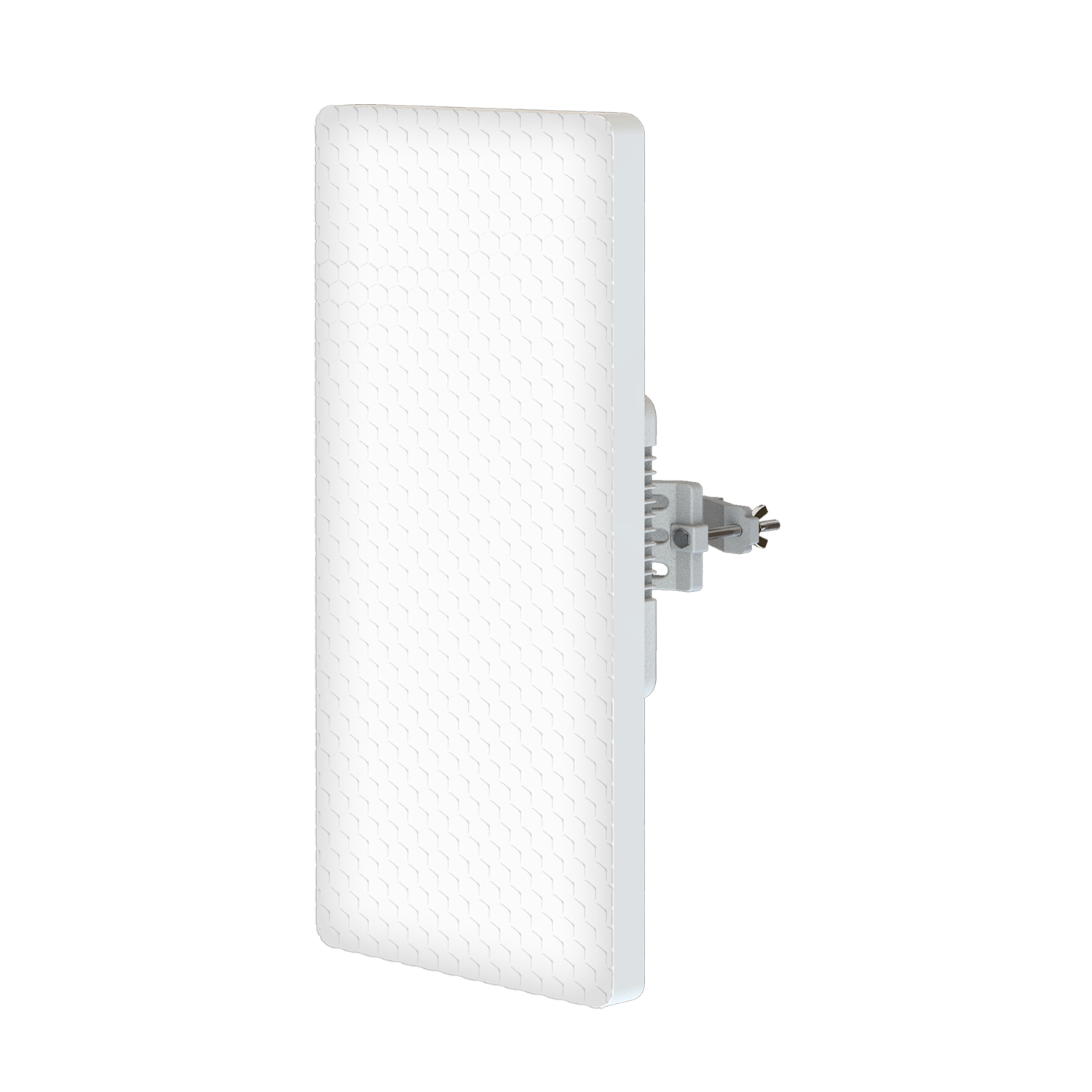

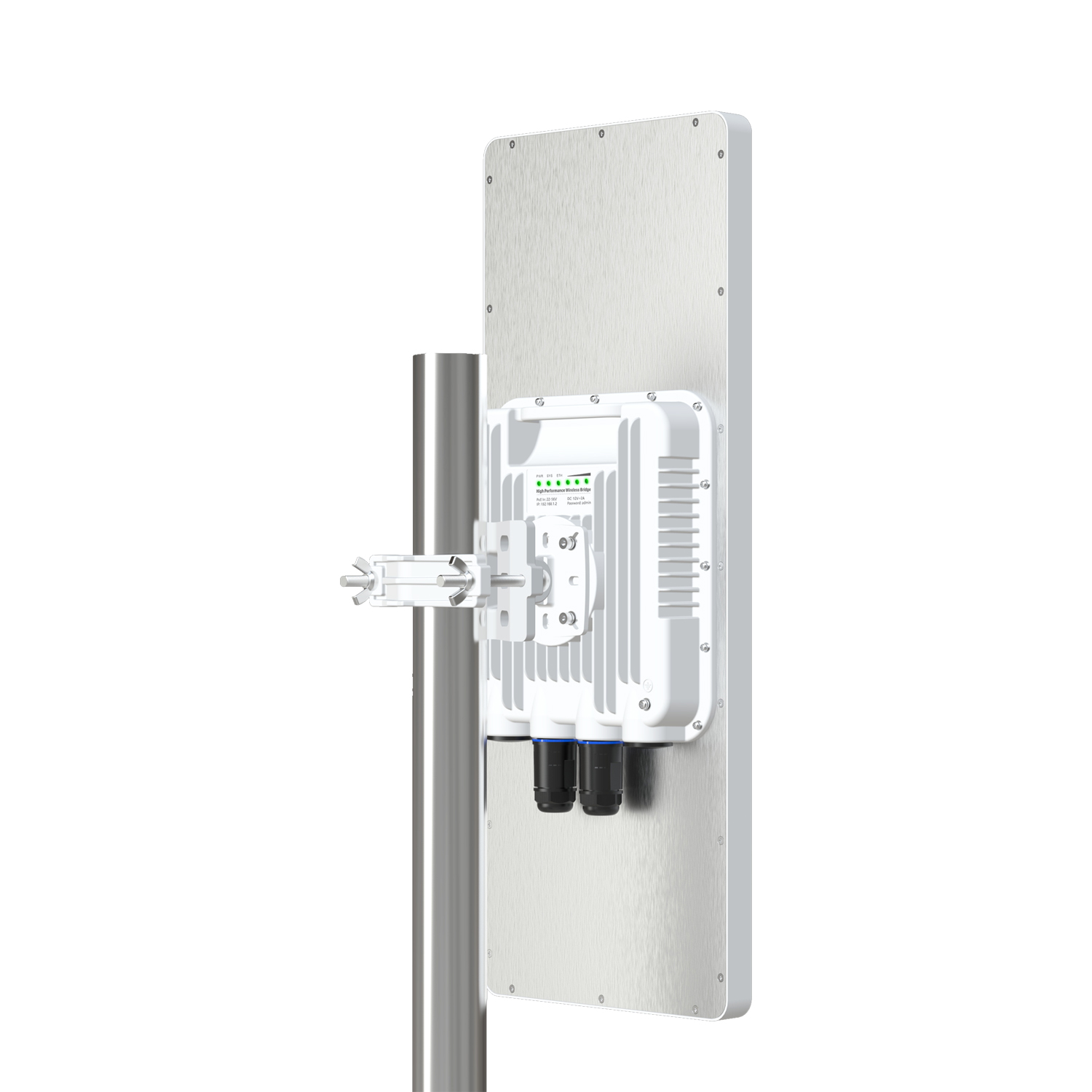

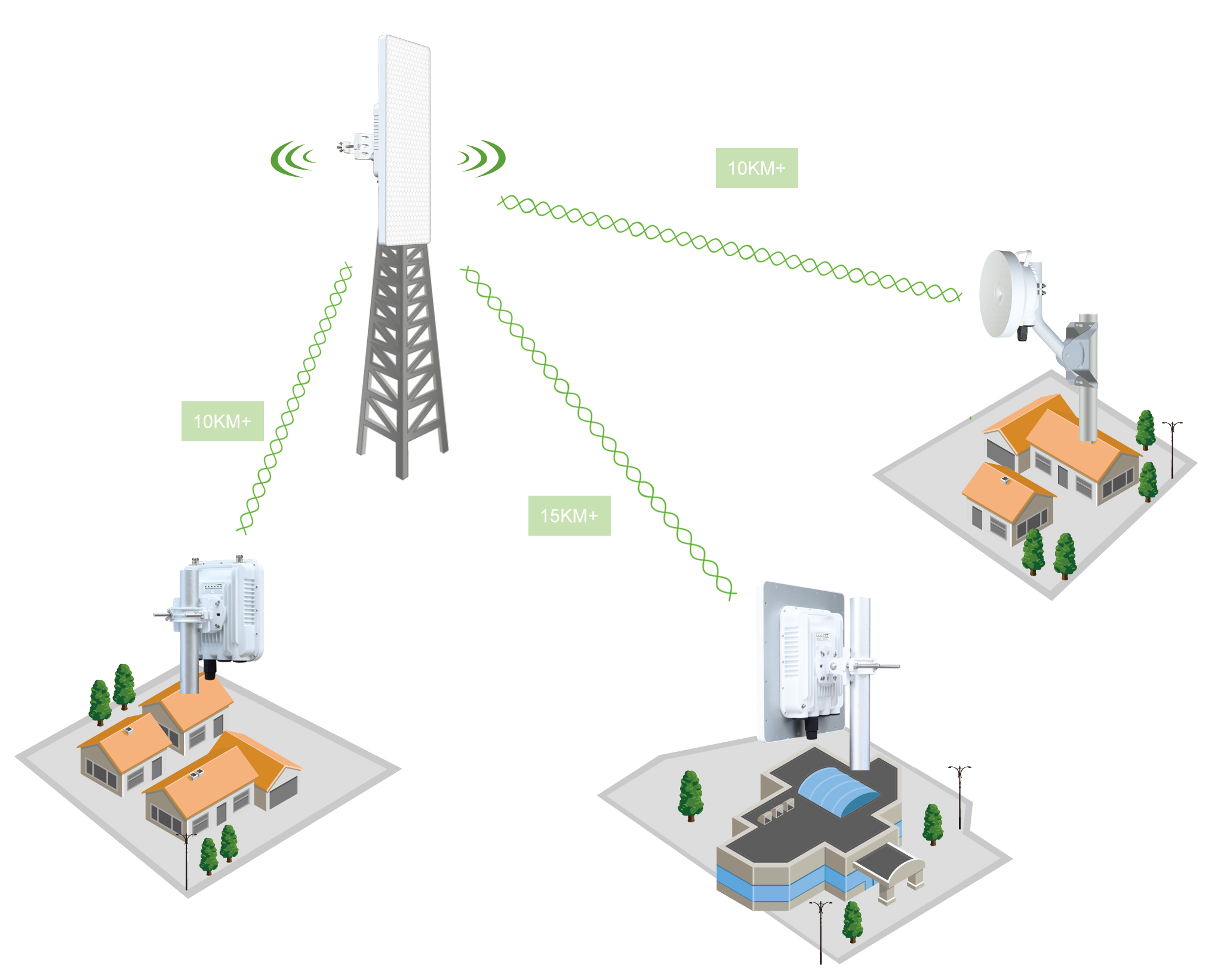

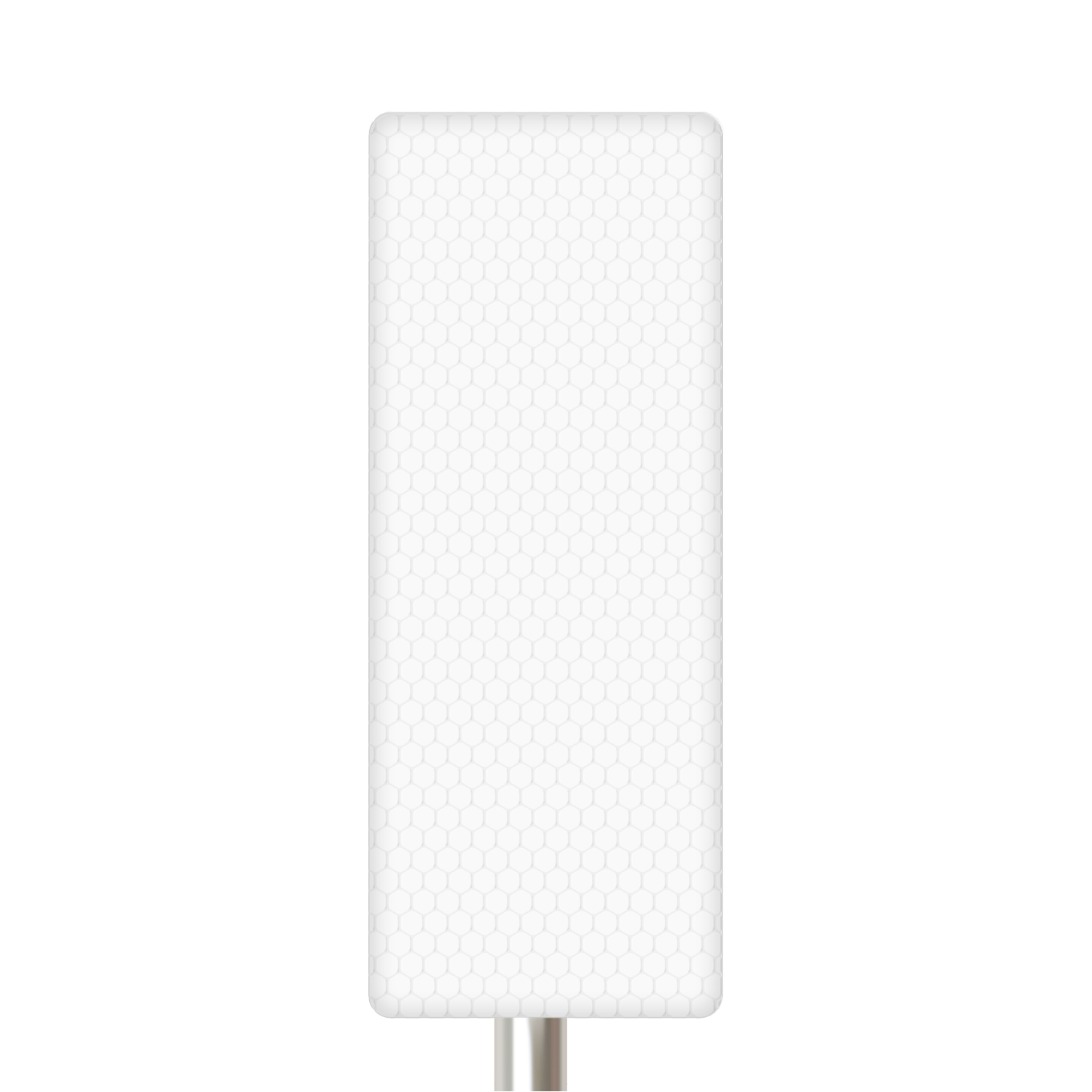

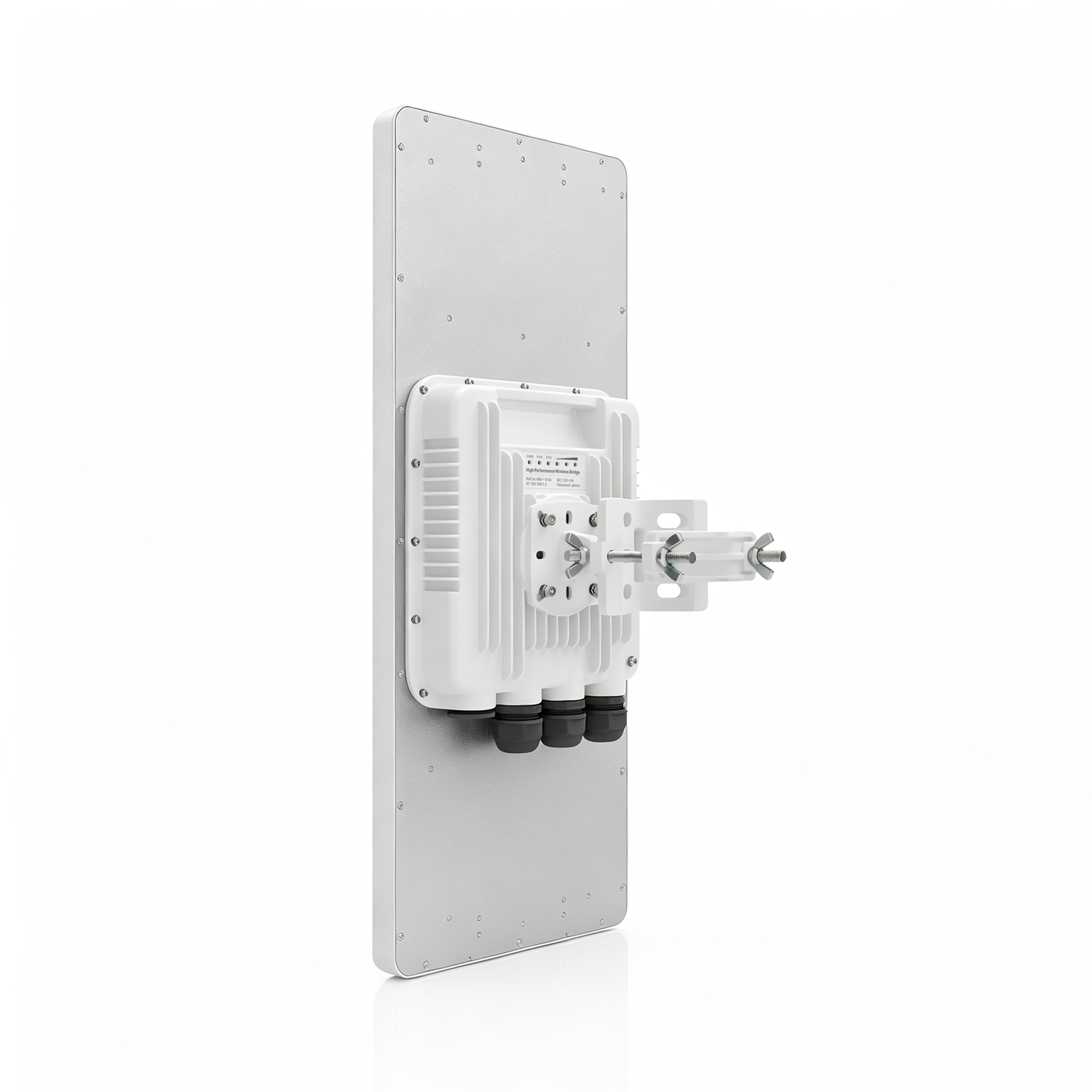

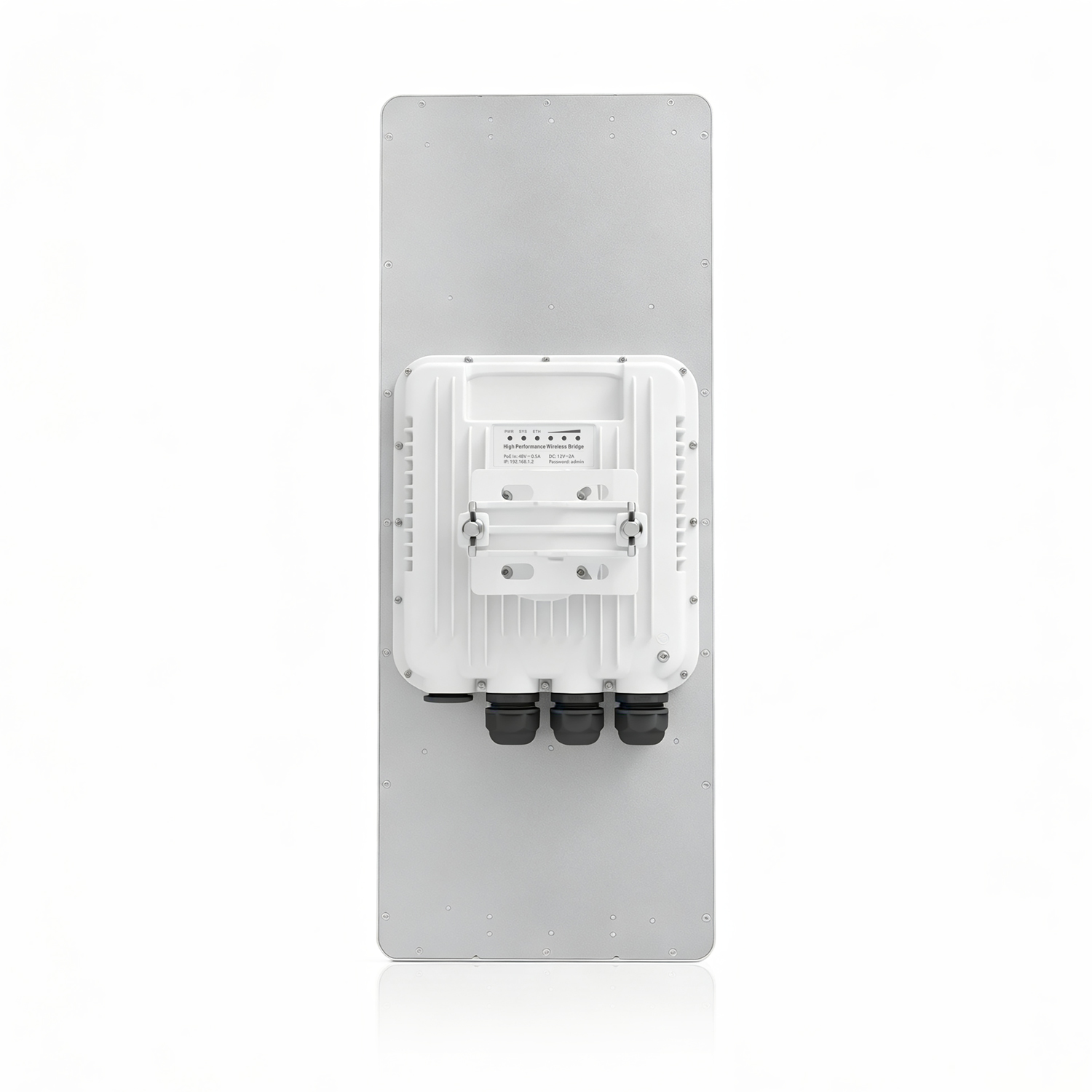

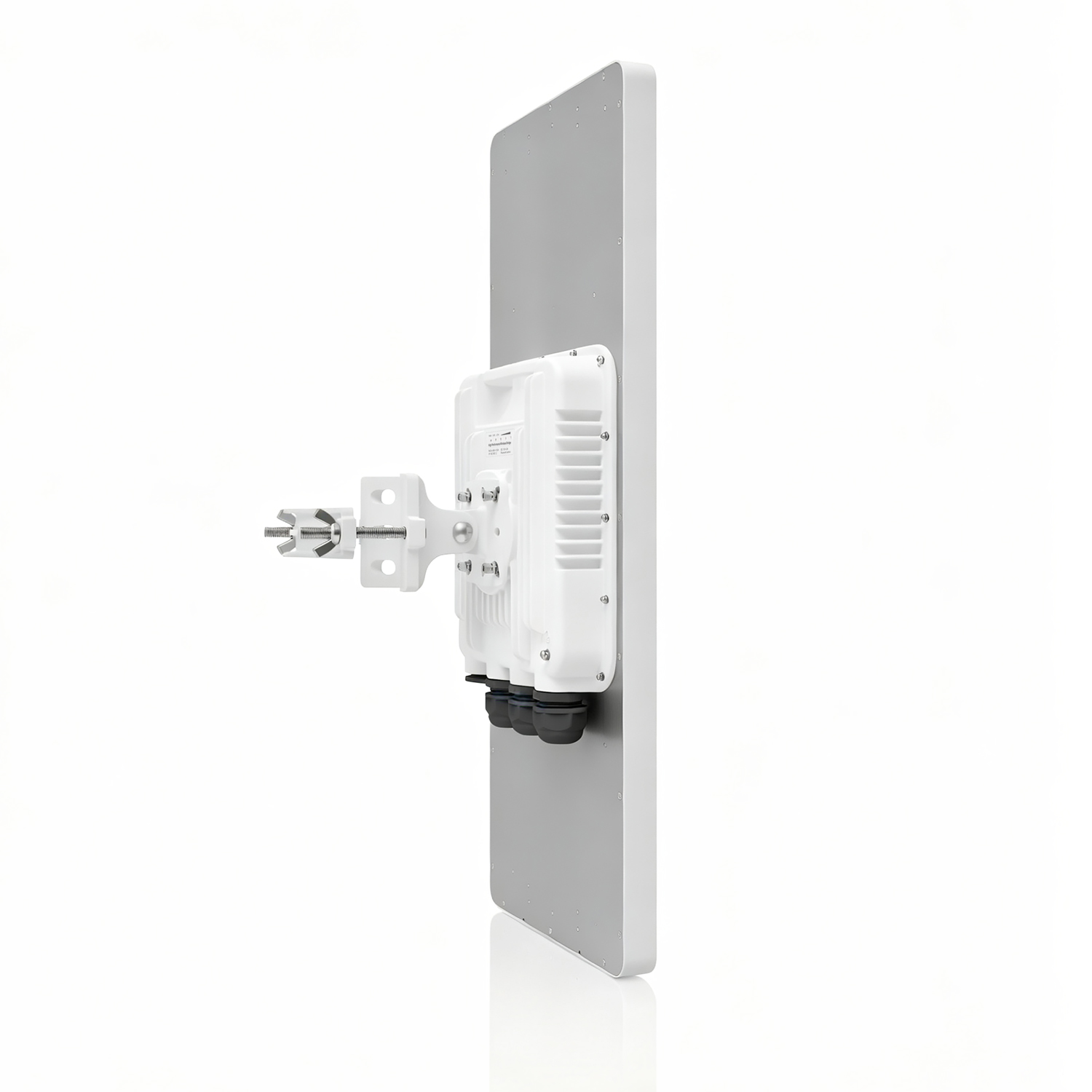

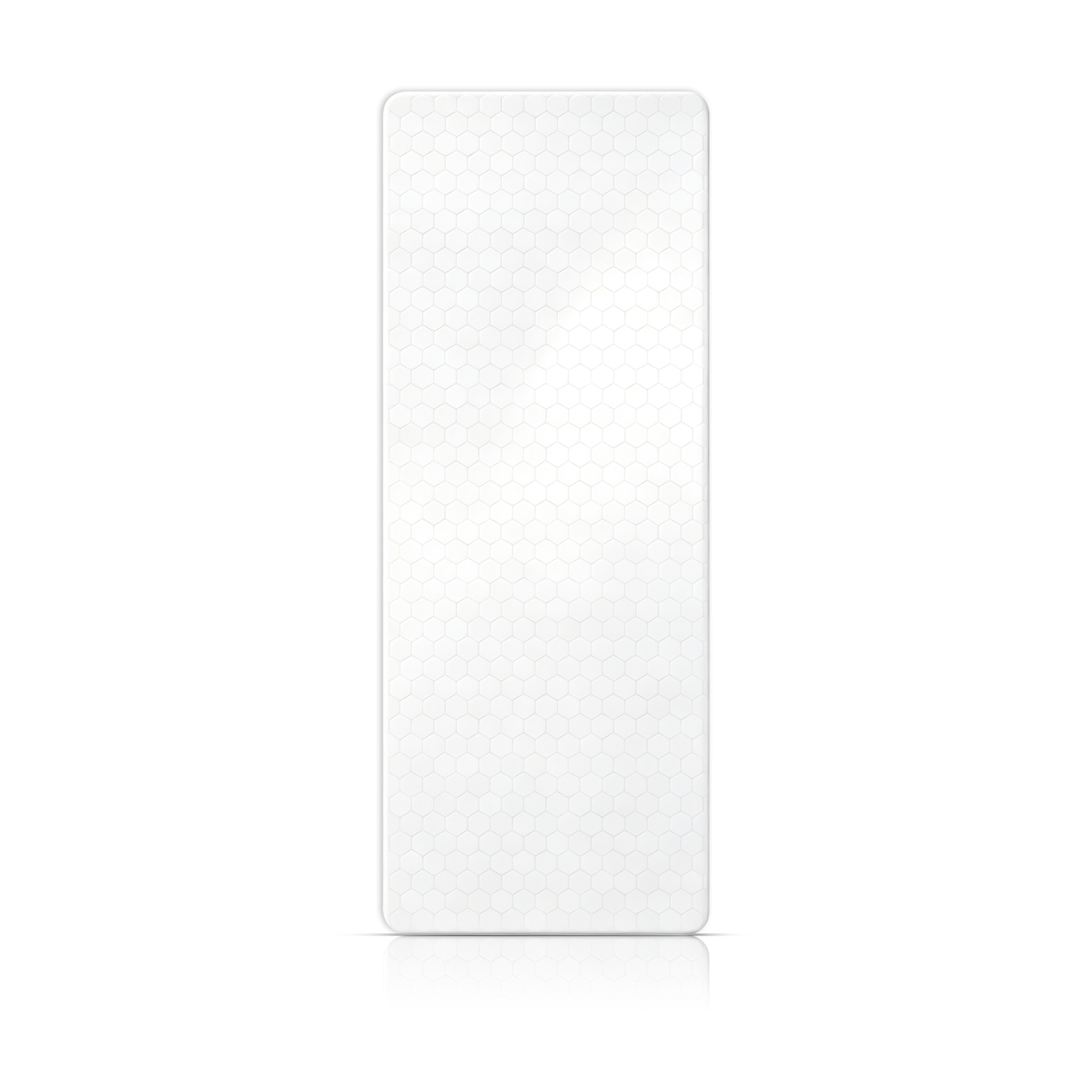

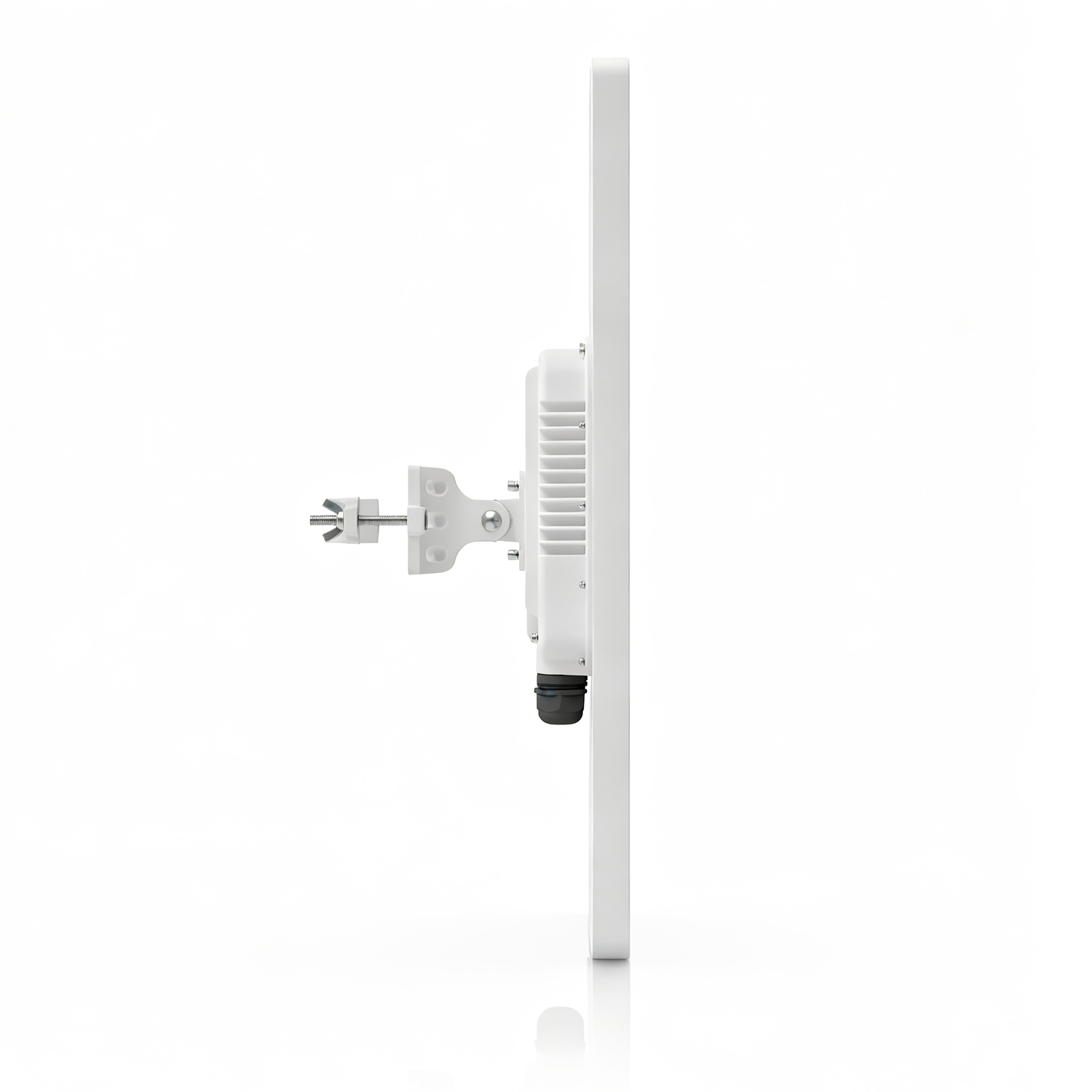

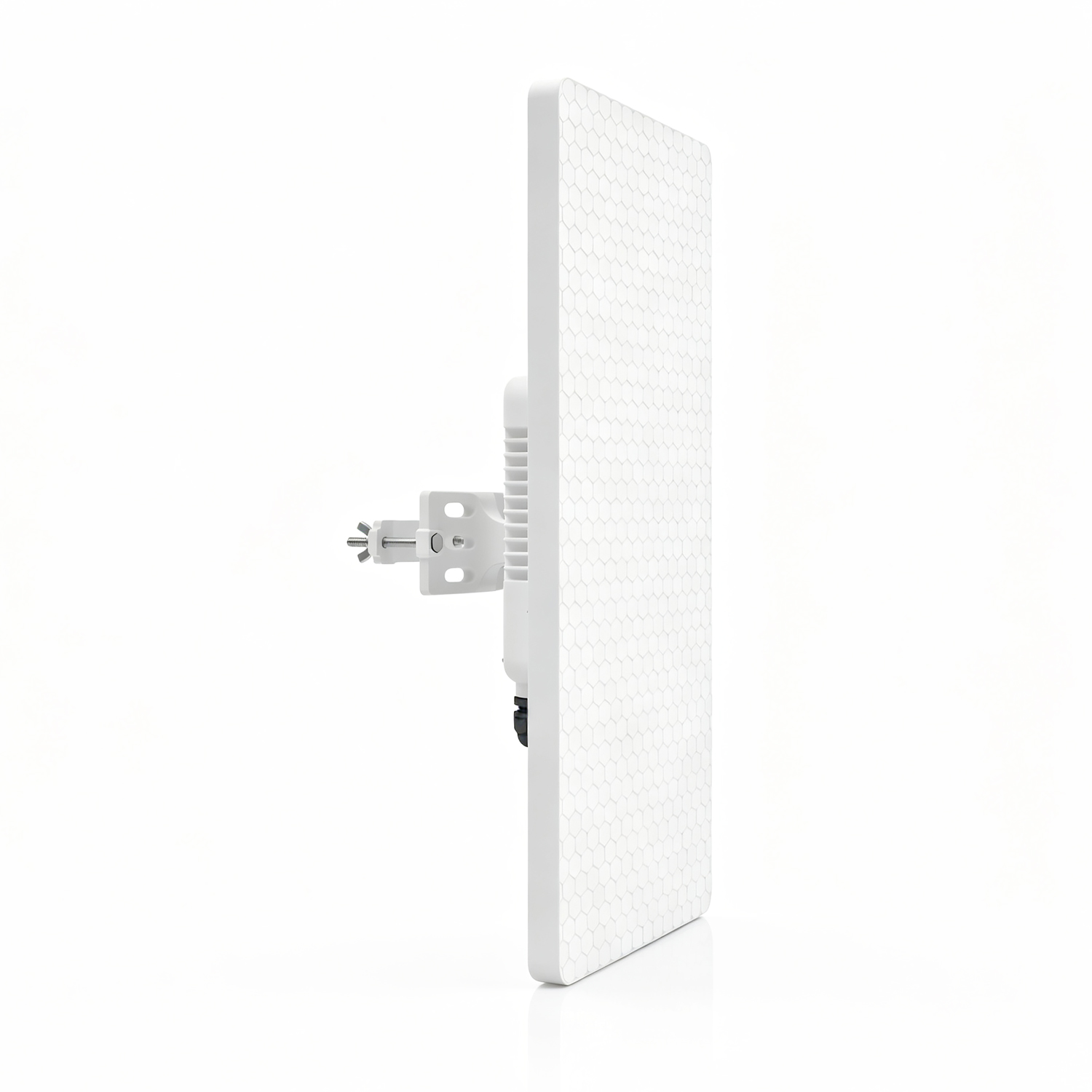

High Throughput Point-to-Multipoint Radio
19dBi directional antenna.
WIS OS
The full-featured operating system makes the devices ideal for WISPs and operators, enabling low latency and high packets-per-second performance.
The QoS (Quality of Service) mechanism prioritizes mission-critical data and ensures efficient transmission of real-time traffic, such as voice and video.
Essential tools-such as a spectrum analyzer, device discovery, and antenna alignment-are included.
Radio Specifications
|
Model |
E4619S |
|||
|
Wireless Standards |
Wi-Fi 7 / 802.11be |
|||
|
CPU |
Quad Core ARM Cortex-A53@1.5 GHz |
|||
|
Channel Width |
20|40|80|160|320 MHz |
|||
|
WiFi Speeds |
11528 Mbps |
|||
|
Size of RAM |
1GB |
|||
|
Size of Flash |
128MB |
|||
|
SFP |
1*10G SFP+ |
|||
|
Networking interface |
2.5Gb Port |
|||
|
Operating Frequency |
5.955-7.125GHz |
|||
|
Max Power |
30dBm |
|||
|
Proprietary Physical Layer |
4x4 MIMO |
|||
|
Antenna Gain |
4*19dBi |
|||
|
Antenna Beam width |
120 Degree |
|||
|
LEDs |
1*Power, 1*SYS, 3*Wi-Fi |
|||
|
Power Supply |
PoE 22-56V, or DC 12V |
|||
|
Power Consumption |
<16W |
|||
|
Surge suppression |
8KV |
|||
|
Weatherproof Enclosure |
IP67 |
|||
|

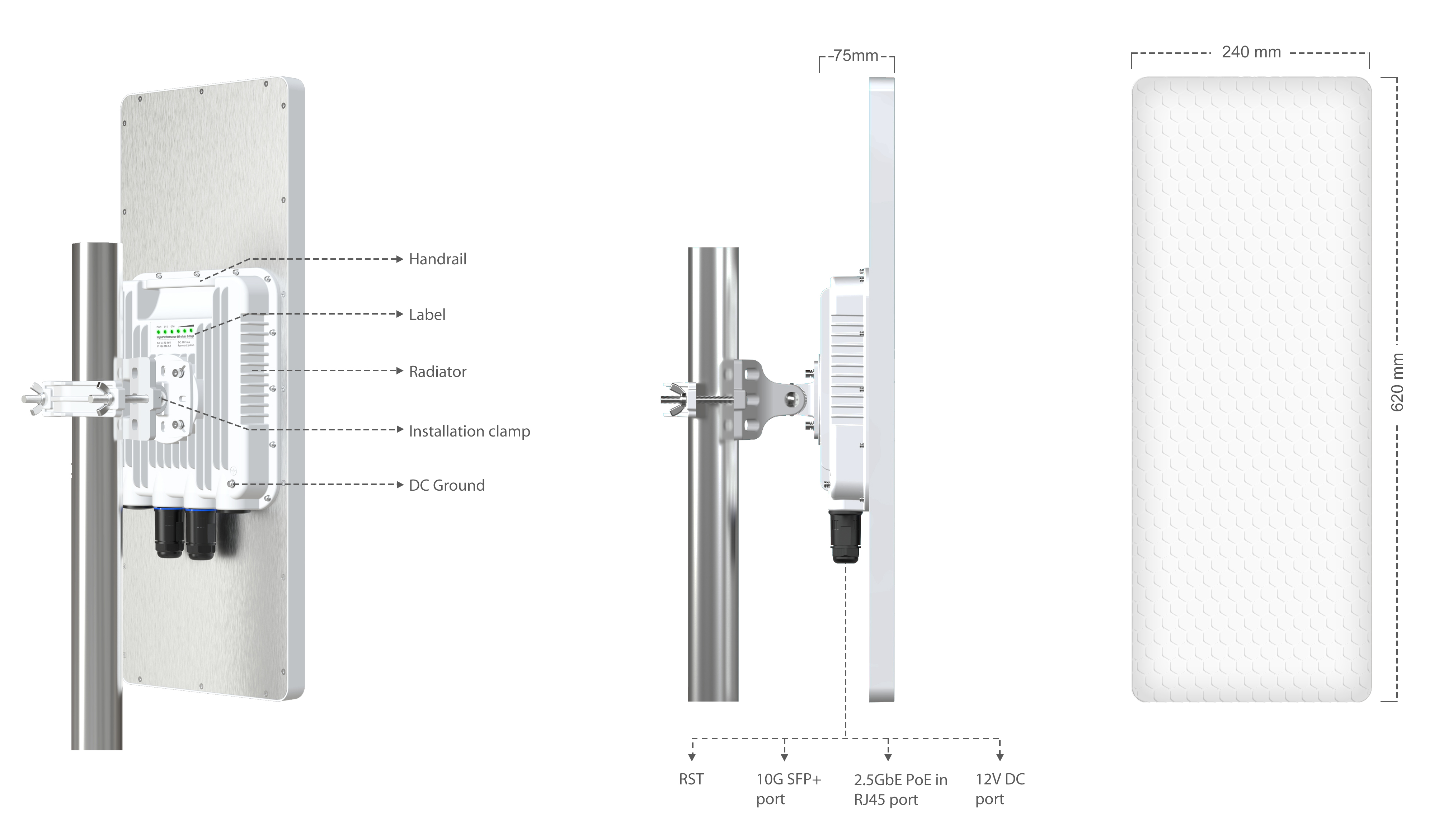

Size |
620*240*75mm |
|||
|
Weight |
3.5kg |
|||
|
Temperature |
-40°C to 70°C |
|||
|
Working mode |
AP WDS、Client WDS |
|||
|
Network Mode |
Bridge/Router |
|||
|
Wireless Security |
WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
|||
|
Network Management |
HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069,SSH, |
|||
|
VLAN |
802.1Q |
|||
|
DHCP |
DHCP Server、DHCP Client |
|||
Radio Specifications
|
Model |
E4519S |
|||
|
Wireless Standards |
Wi-Fi 7 / 802.11be |
|||
|
CPU |
Quad Core ARM Cortex-A53@1.5 GHz |
|||
|
Channel Width |
20|40|80|160|320 MHz |
|||
|
WiFi Speeds |
11528 Mbps |
|||
|
Size of RAM |
1GB |
|||
|
Size of Flash |
128MB |
|||
|
SFP |
1*10G SFP+ |
|||
|
Networking interface |
2.5Gb Port |
|||
|
Operating Frequency |
5.18-6.415GHz |
|||
|
Max Power |
30dBm |
|||
|
Proprietary Physical Layer |
4x4 MIMO |
|||
|
Antenna Gain |
4*19dBi |
|||
|
Antenna Beam width |
120 Degree |
|||
|
LEDs |
1*Power, 1*SYS, 3*Wi-Fi |
|||
|
Power Supply |
PoE 22-56V, or DC 12V |
|||
|
Power Consumption |
<16W |
|||
|
Surge suppression |
8KV |
|||
|
Weatherproof Enclosure |
IP67 |
|||
|
Size |
620*240*75mm |
|||
|
Weight |
3.5kg |
|||
|
Temperature |
-40°C to 70°C |
|||
|
Working mode |
AP WDS、Client WDS |
|||
|
Network Mode |
Bridge/Router |
|||
|
Wireless Security |
WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
|||
|
Network Management |
HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069,SSH, |
|||
|
VLAN |
802.1Q |
|||
|
DHCP |
DHCP Server、DHCP Client |
|||
