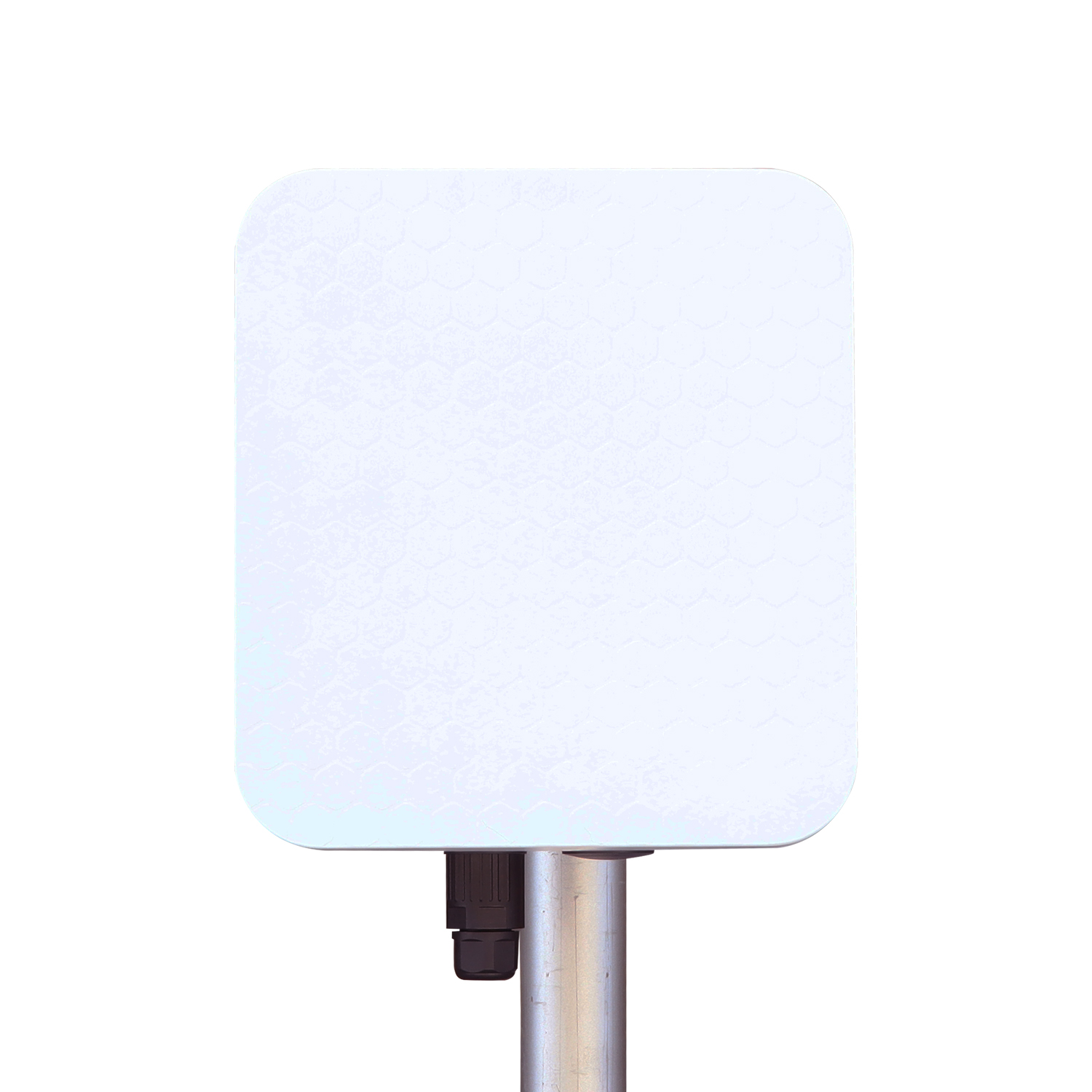

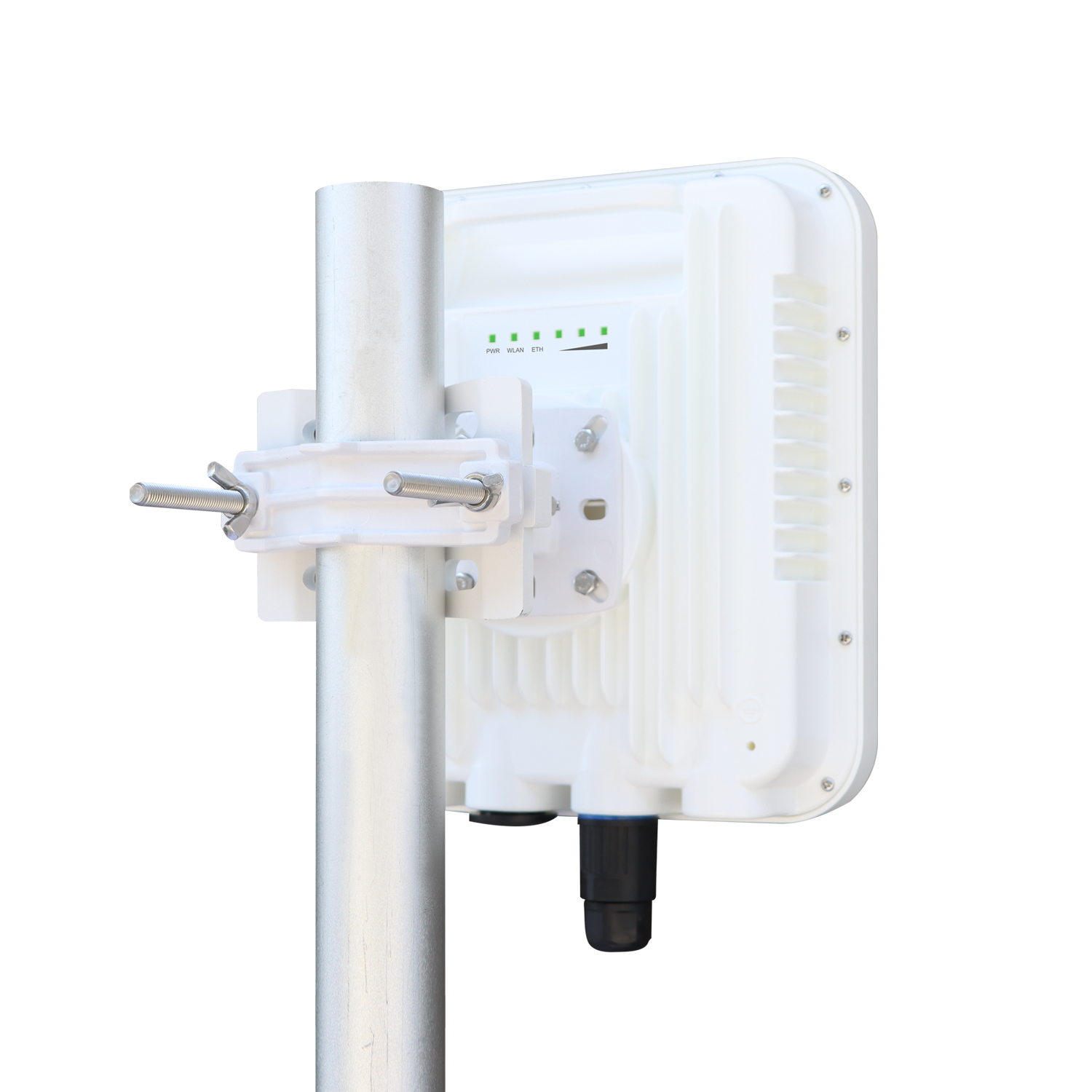

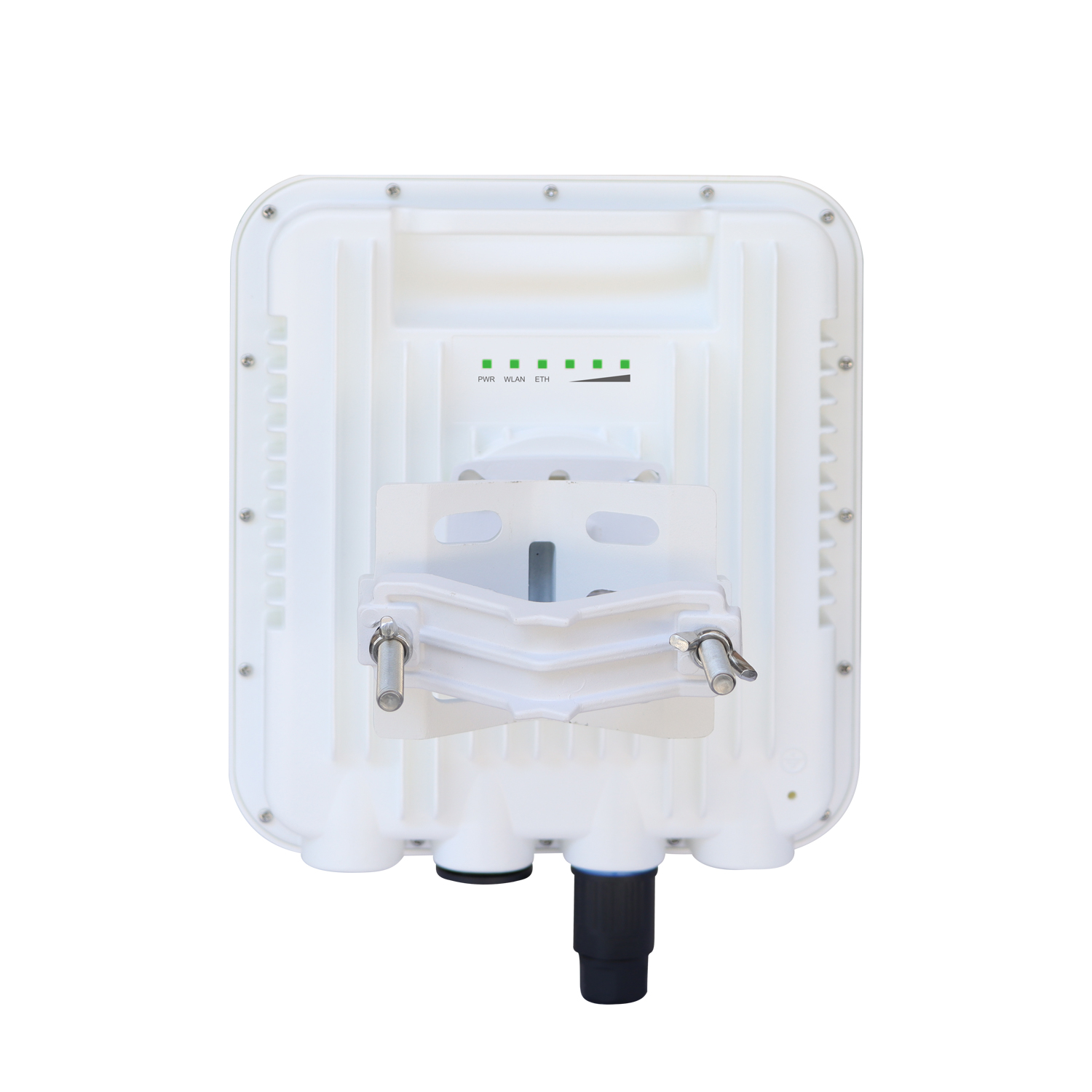

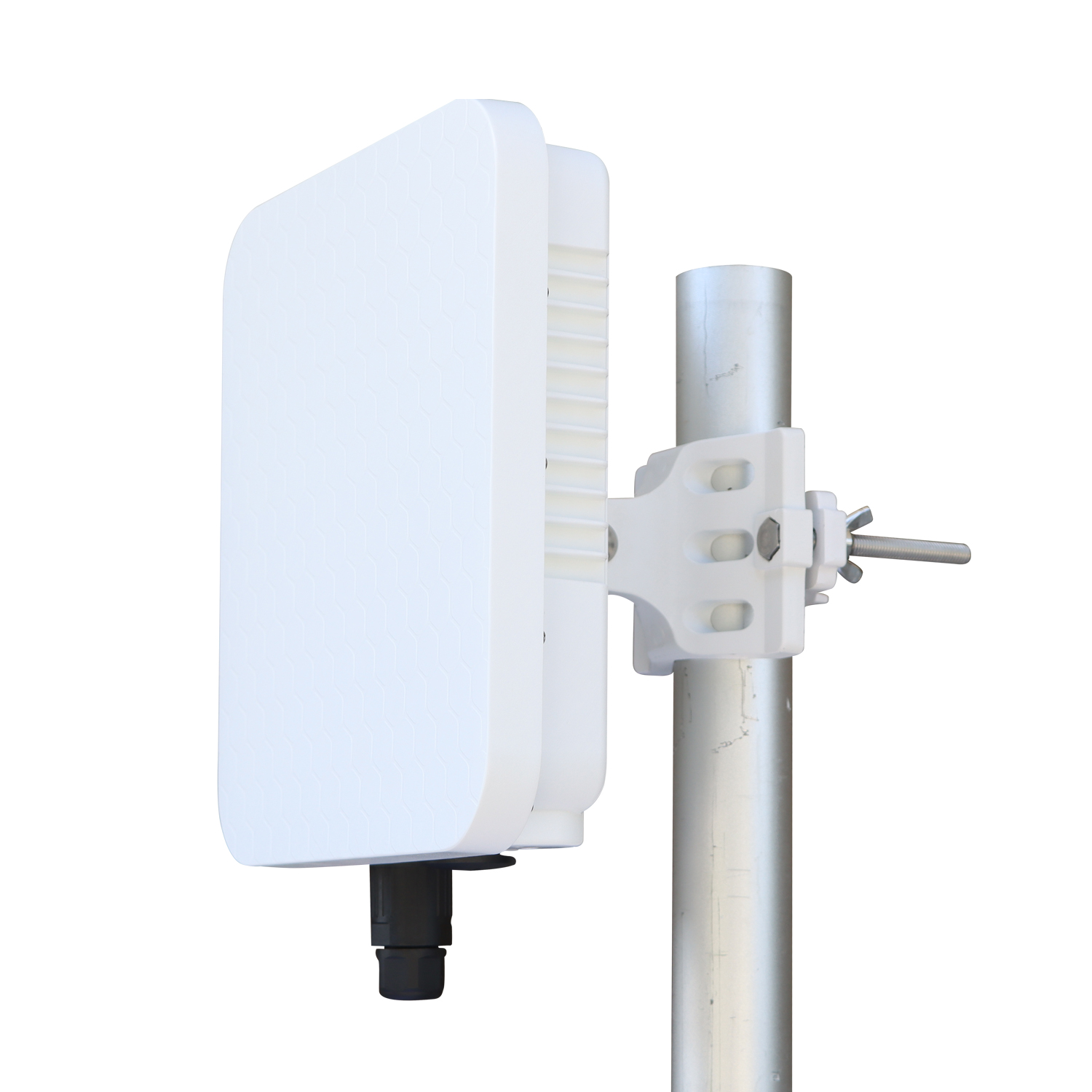

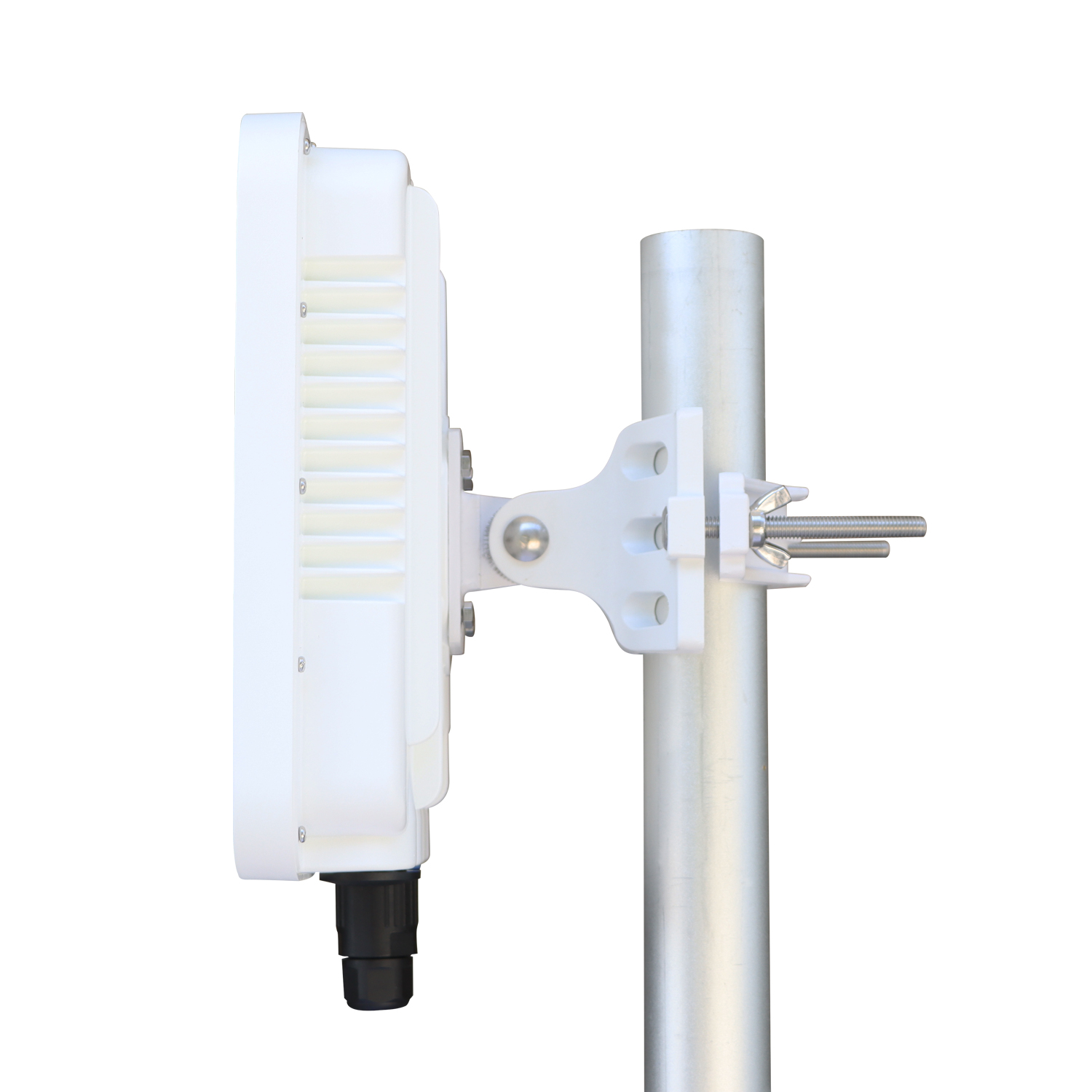

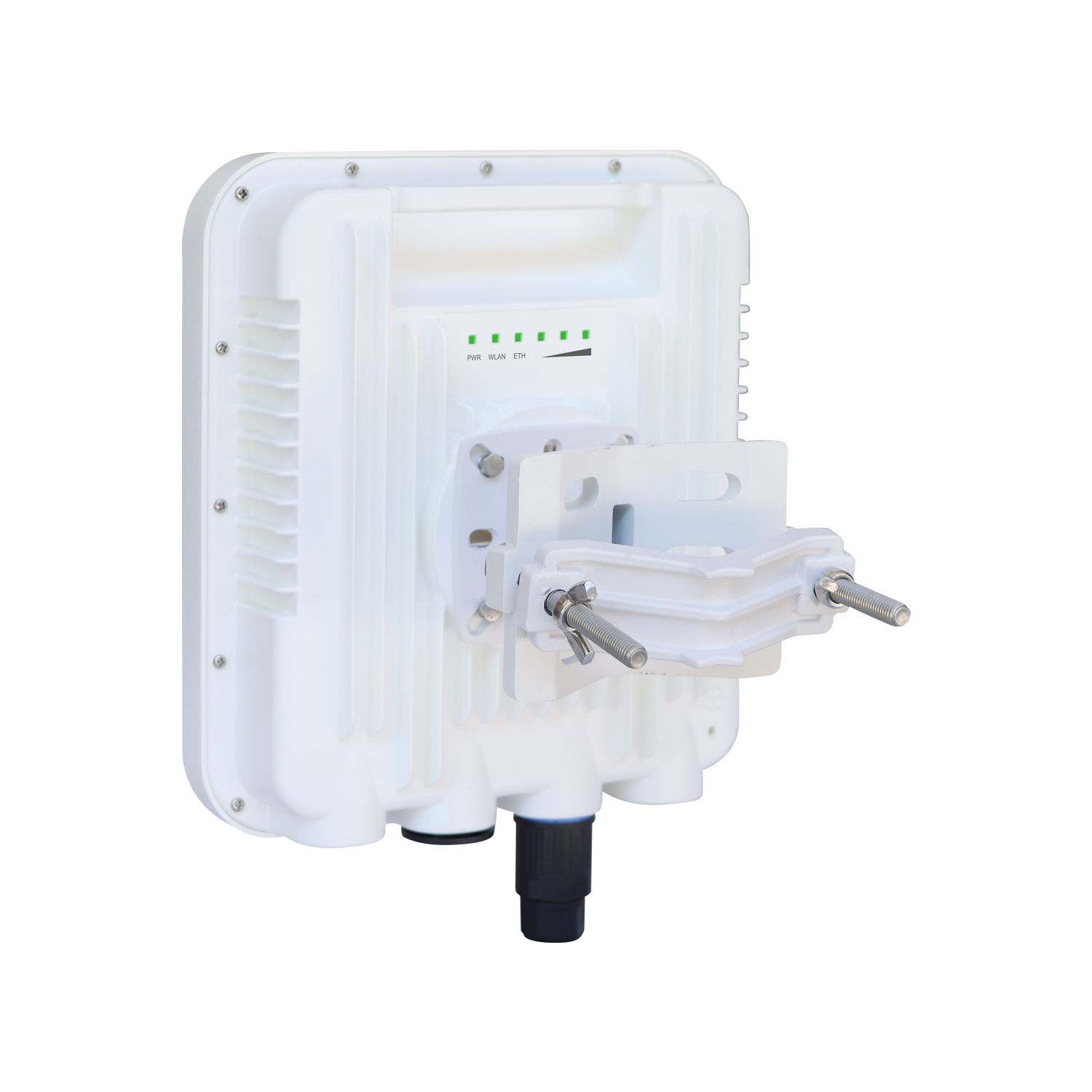

Subscriber Unit With an Integrated
20dBi Directional Antenna
The PanelBridge is one of the industry’s fastest unlicensed backhaul solutions.
It’s ideal for short to mediumrange relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.425 GHz spectrum.
Leveraging the latest wireless technologies and the new 6 GHz band, the PanelBridge achieves low latency and
speeds up to 2.3 Gbps, with advanced interference mitigation ensuring high reliability.
WIS OS
The full-featured operating system makes the devices ideal for WISPs and operators, enabling low latency and
high packets-per-second performance.
The QoS (Quality of Service) mechanism prioritizes mission-critical data and ensures efficient transmission of real-time traffic, such as voice and video.
Essential tools-such as a spectrum analyzer, device discovery, and antenna alignment-are included.
Technical indicators
|
Product model |
E520C |
|
Chip specification |
QualcommQuad A53 @ 1.1GHz |
|
Working frequency |
5150-6425MHz |
|
Wireless standard |
WIFI 7 / 802.11be |
|
Channel bandwidth |
20|40|80|160|320MHz |
|
MIMO |
2x2 |
|
Gigabit Ethernet |
1 x 1 Gigabit Ethernet port + 1 x 2.5 Gbps optical port |
|
Transmission power |
26dBm |
|
Antenna gain |
20dBi Bipolarization |
|
Antenna wave width |
E:30°/ H30° |
|
Shell material |
Die-cast aluminum |
|
Indicator light |
1* Power indicator light, 1* System indicator light, 1* Network port status indicator light, 1* Optical port status indicator light, 1* Wireless signal indicator light. |
|
Power supply method |
802.11at, or DC 12V=3A |
|
Maximum power consumption |
<16W |
|
Surge protection |
6KV |
|
Waterproof rating |
IP67 |
|
Equipment dimensions |
223*245*63mm（Not included Bracket） |
|
Equipment weight |
2.5kg |
|
Environment |
Working temperature：-30°C～60°C Work humidity：5％～95％（No condensation） |
|
Work mode |
AP WDS、Client WDS |
|
Network mode |
Bridge/Routing |
|
SSID hiding |
Support |
|
Data encryption |
WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE |
|
User isolation |
Support |
|
DHCP |
DHCP Server、DHCP Client |
|
Reboot reset |
Support for restarting the device at a specific time or schedule, as well as hardware and software reset functions. |
|
Web-based management |
Support |
|
Manage VLAN |
Support management of devices through VLANs |
|
SNMP |
Support |
|
Guard dog |
Support |
|
Firmware upgrade |
Support |
|
Configure backup |
Support WEB upgrade |
|
Network management function |
Support configuration import and export |
|
Antenna information |
|
 Antenna Pattern |
 Polar Plots and Gain Across Frequency |
|
* The 5.9 - 6.425GHz frequency band is only open to specific countries. The 5.9 - 6.425GHz frequency band is not yet open in the Chinese region. |
|
