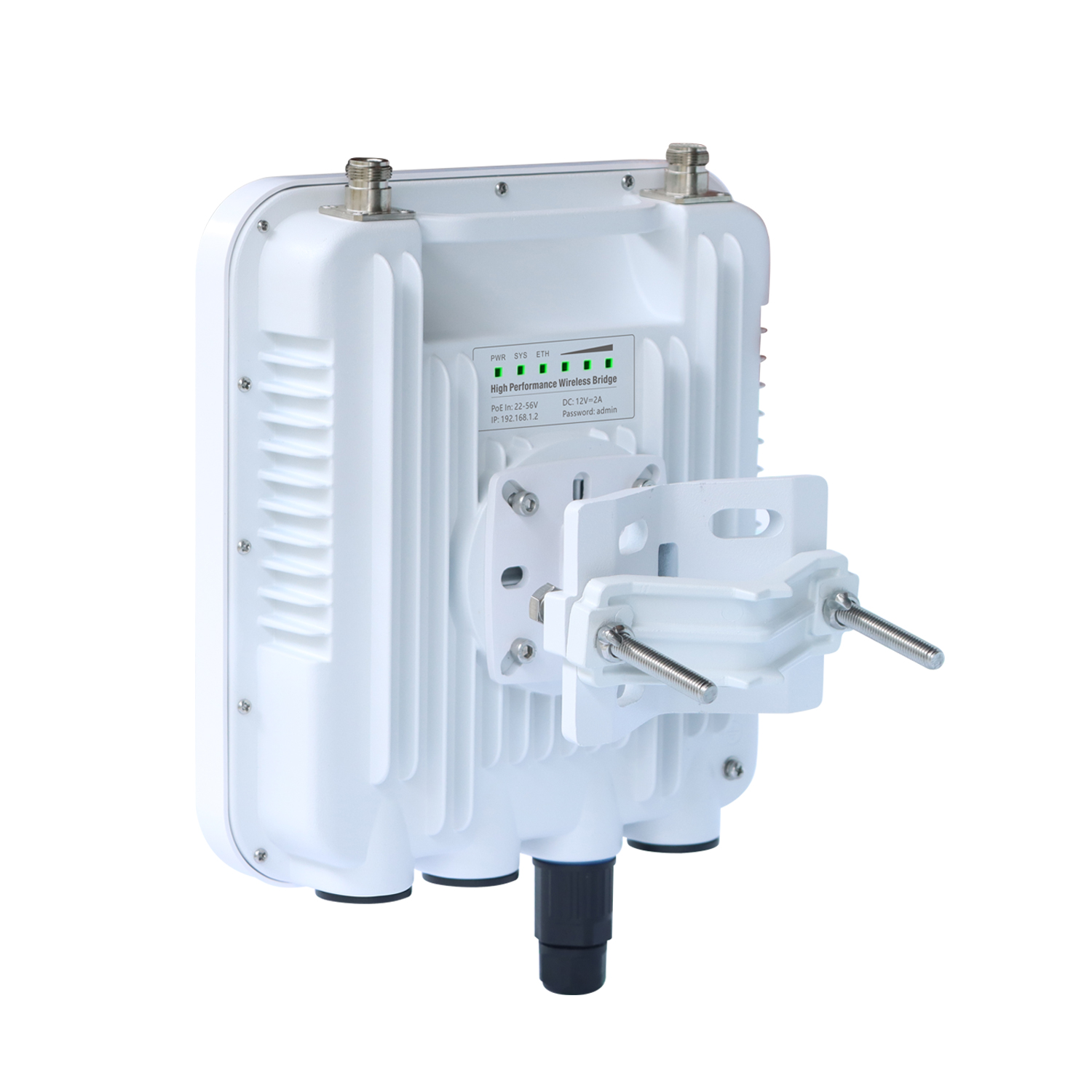

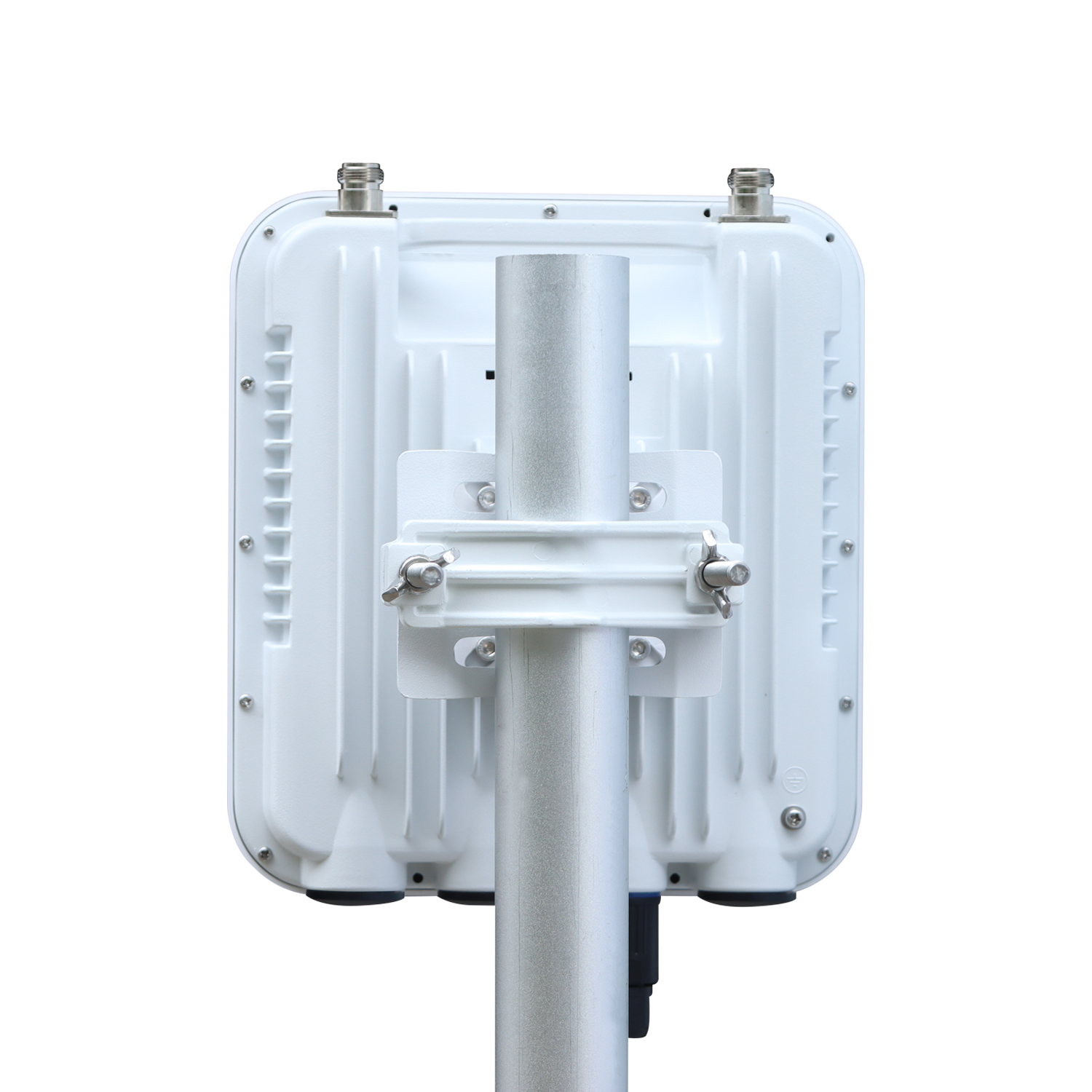

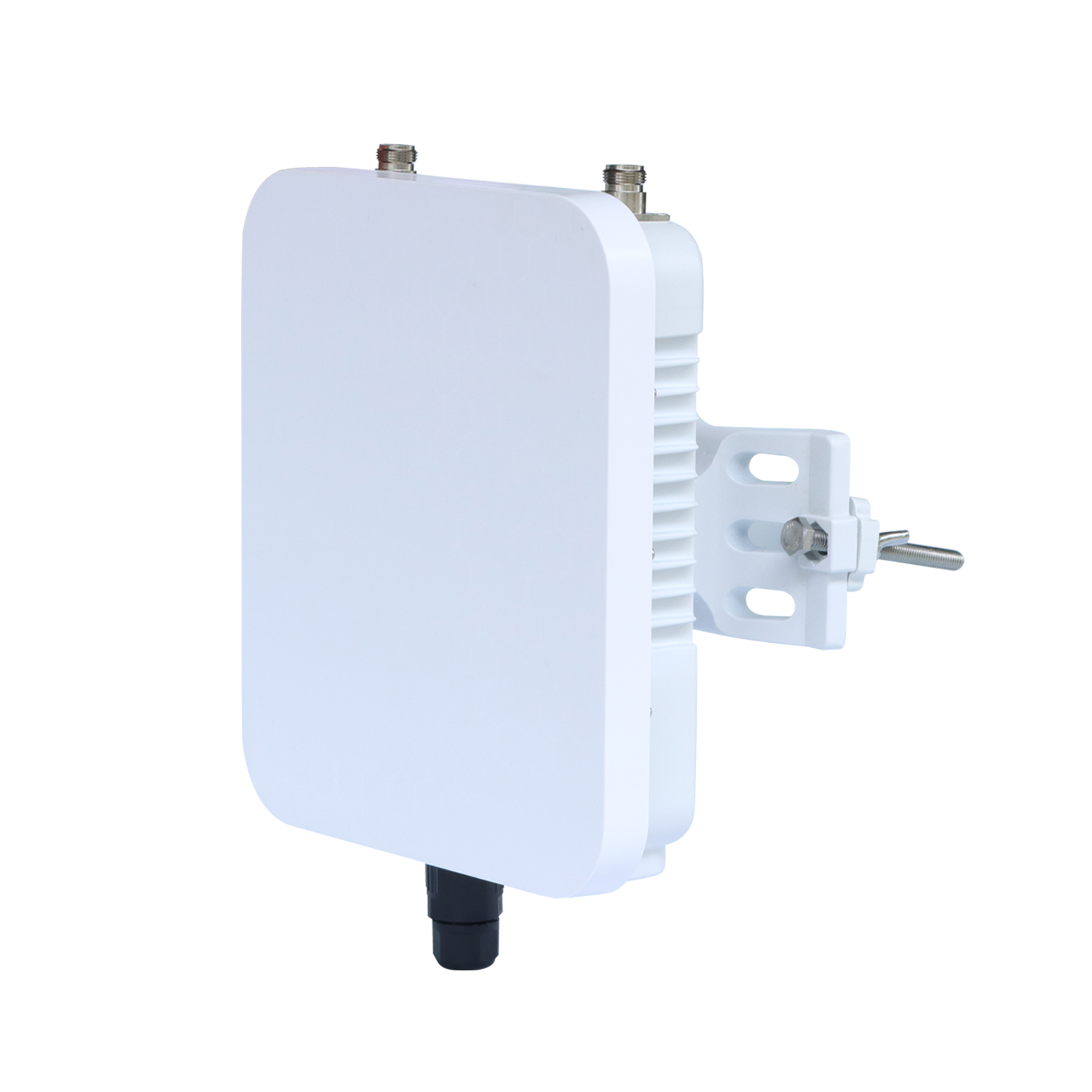

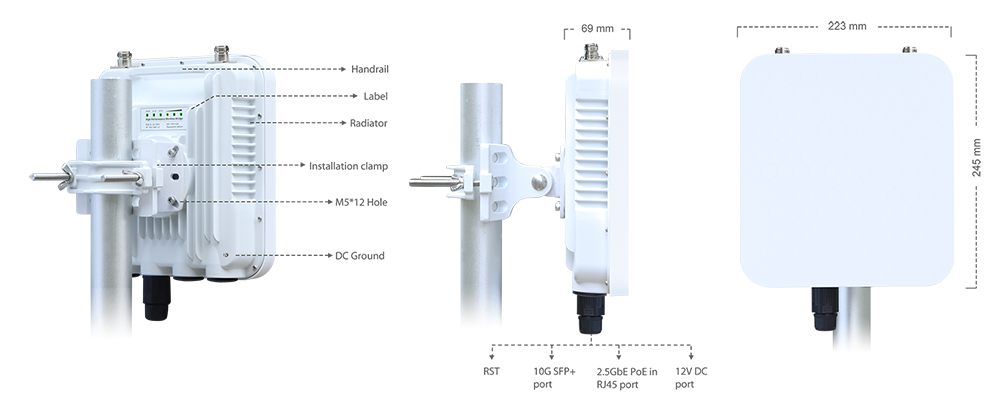

Subscriber unit with N Female
The PanelBridge is one of the industry’s fastest unlicensed backhaul solutions.
It’s ideal for short to mediumrange relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.425 GHz spectrum.
Leveraging the latest wireless technologies and the new 6 GHz band, the PanelBridge achieves low latency and
speeds up to 2.3 Gbps, with advanced interference mitigation ensuring high reliability.
WIS OS
The full-featured operating system makes the devices ideal for WISPs and operators, enabling low latency and
high packets-per-second performance.
The QoS (Quality of Service) mechanism prioritizes mission-critical data and ensures efficient transmission of real-time traffic, such as voice and video.

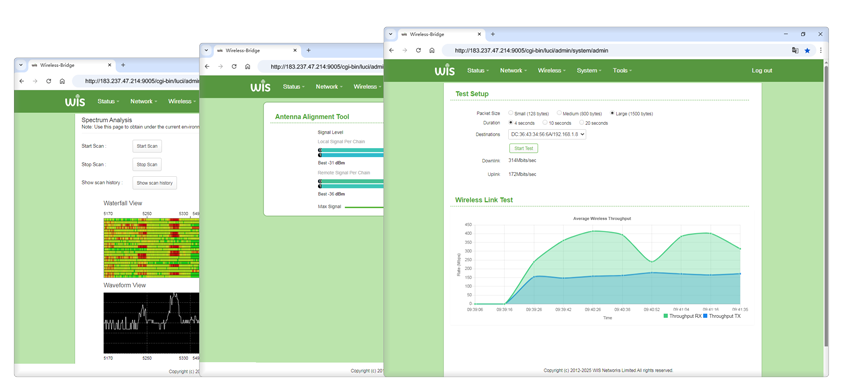

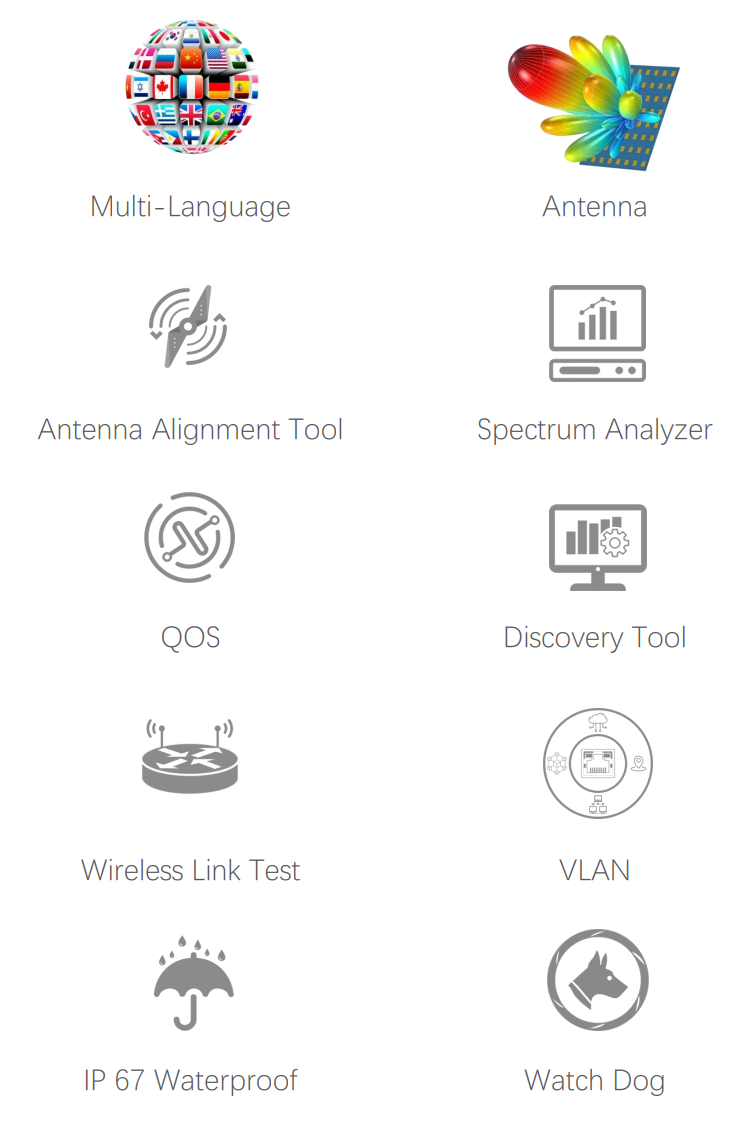

Essential tools-such as a spectrum analyzer, device discovery, and antenna alignment-are included.
Technical Specifications
|
Performance |
Environmental |
|
• Max Throughput: |
• Outdoor Ingress Protection Rating: IP67 |
|
Up to 1.7Gbps |
• Operating Temperature: -40°C to +65°C |
|
• Wireless Protocols: |
• Operating Humidity: 5 to 100% condensing |
|
PTP. PTMP TDMA |
• Operating Altitude: 4,420 m (14,500’) maximum |
|
• Low Latency: |
• Shock and Vibration: ETS 300-019-2-4 class 4M5 |
|
<1 ms in auto mode |
|
|
|
|
|
Radio |
Features |
|
• Modulation: 2x2 MU-MIMO; OFDMA;1096QAM |
• Gigabit Ethernet: 10/100/1000/2500 BASE-T(Support POE IN 802.3af/at) |
|
• Bandwidth: 160MHz aggregate channel capacity |
• DC: 12V |
|
• Max Output Power: 27 dBm |
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels; |
|
• Frequency Range: 5150–5850 MHz Restricted by country of operation |
• Management Services: Cloud, SNMPv2 & TR069,Web UI |
|
• Sensitivity (MCS 0): |
• Wireless Security: WPA3-PSK，WPA3 & WPA2-PSK, WPA2-PSK，WPA2-Radius |
|
-87 dBm @160 MHz |
• QoS: 4 classes of QoS, with user configurable priority queuing, |
|
-90 dBm @ 80 MHz |
• Network Mode: Bridge/Router |
|
-93 dBm @ 40 MHz |
• VLAN: 802.1Q |
|
-96 dBm @ 20 MHz |
• DHCP: DHCP Server、DHCP Client |
Radio Specifications
|
Model |
X5C-NK |
|
Hardware |
|
|
CPU |
IPQ5312 Qualcomm Quad A53 @ 1.1GHz |
|
Operating Frequency |
5.18-5850GHz |
|
Wireless Standards |
WIFI 6/802.11ax |
|
Channel Width |
20|40|80|160MHz |
|
Wireless Max data rate |
1.7Gbps |
|
Proprietary Physical Layer |
2x2 MIMO |
|
Networking interface |
1*2.5Gigabit Ethernet+1*Gigabit Ethernet |
|
SFP |
N/A |
|
TX Power |
27dBm
|
|
Antenna Gain |
N/A |
|
Antenna Beam width |
N/A |
|
LEDs |
1*Power, 1*SYS, 3*Wi-Fi |
|
Power Supply |
802.3af/at, or DC 12V |
|
Power Consumption |
<16W |
|
Surge suppression |
8KV |
|
Weatherproof Enclosure |
IP67 |
|
Size |
223*245*69mm |
|
Weight |
2.5kg |
|
PTP Link Distances |
50km+（with dish antenna） |
|
Temperature |
-40°C to65°C |
|
Working mode |
AP WDS、Client WDS |
|
Network Mode |
Bridge/Router |
|
Wireless Security |
WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
|
Network Management |
HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069,SSH, |
|
VLAN |
802.1Q |
|
DHCP |
DHCP Server、DHCP Client |
