Product Overview

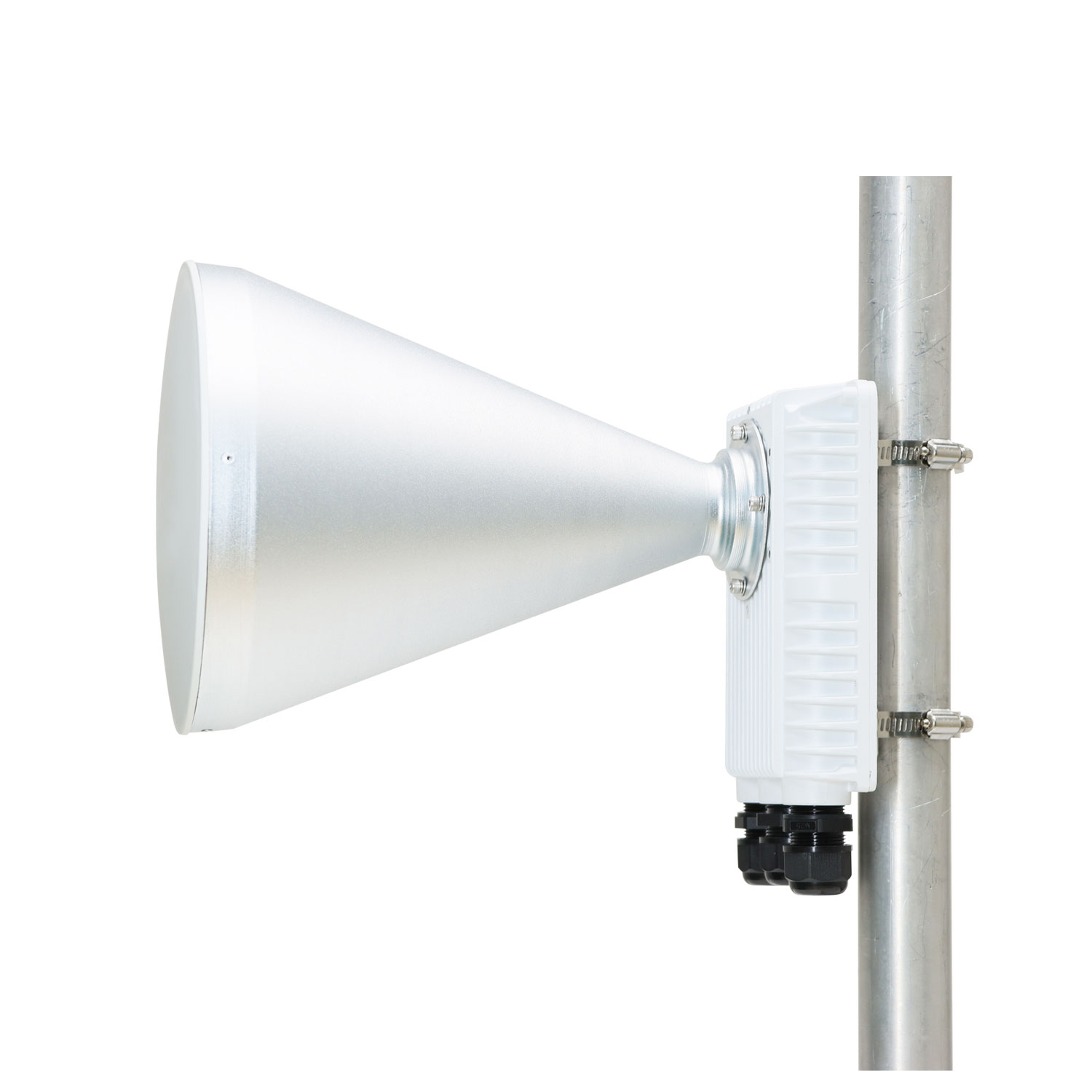

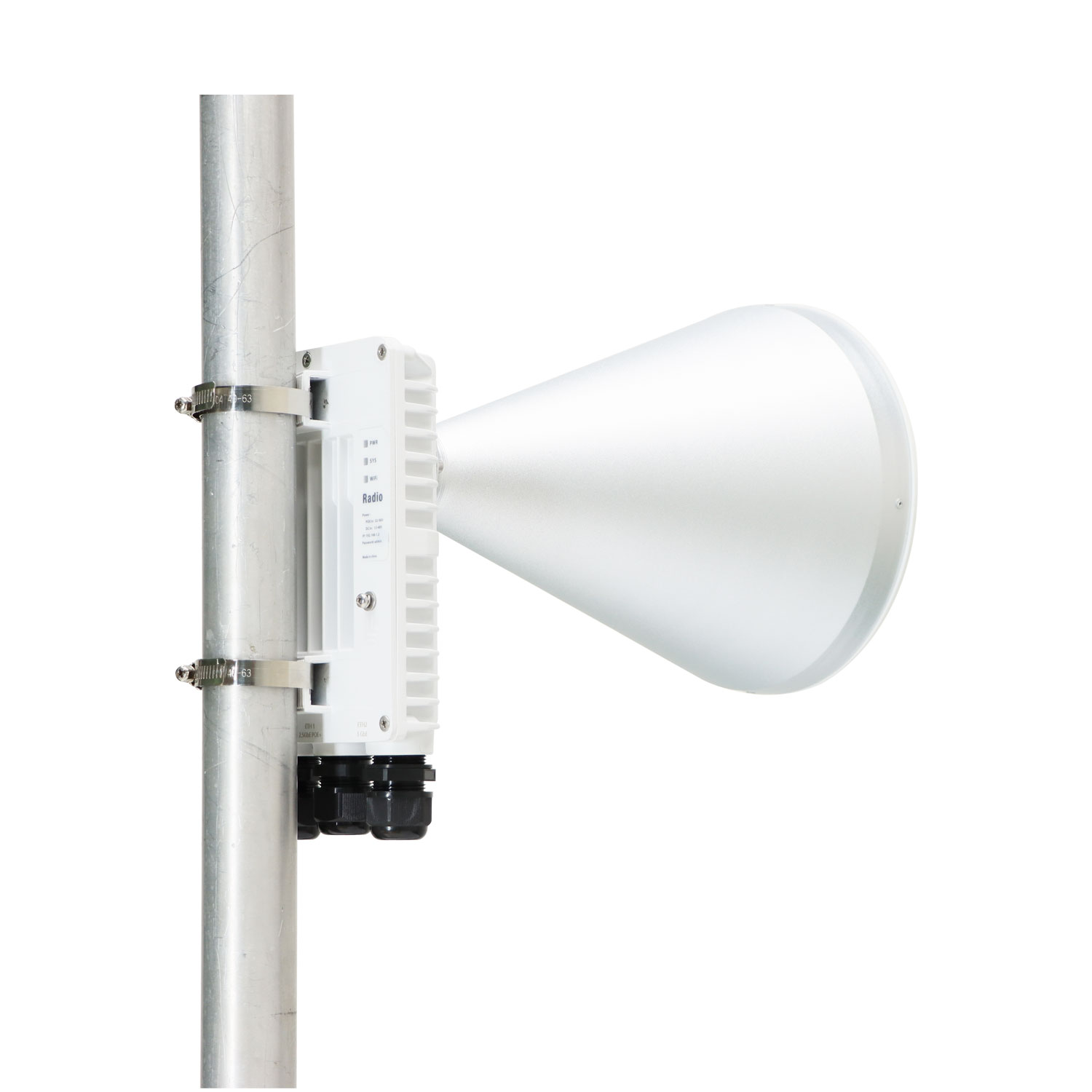

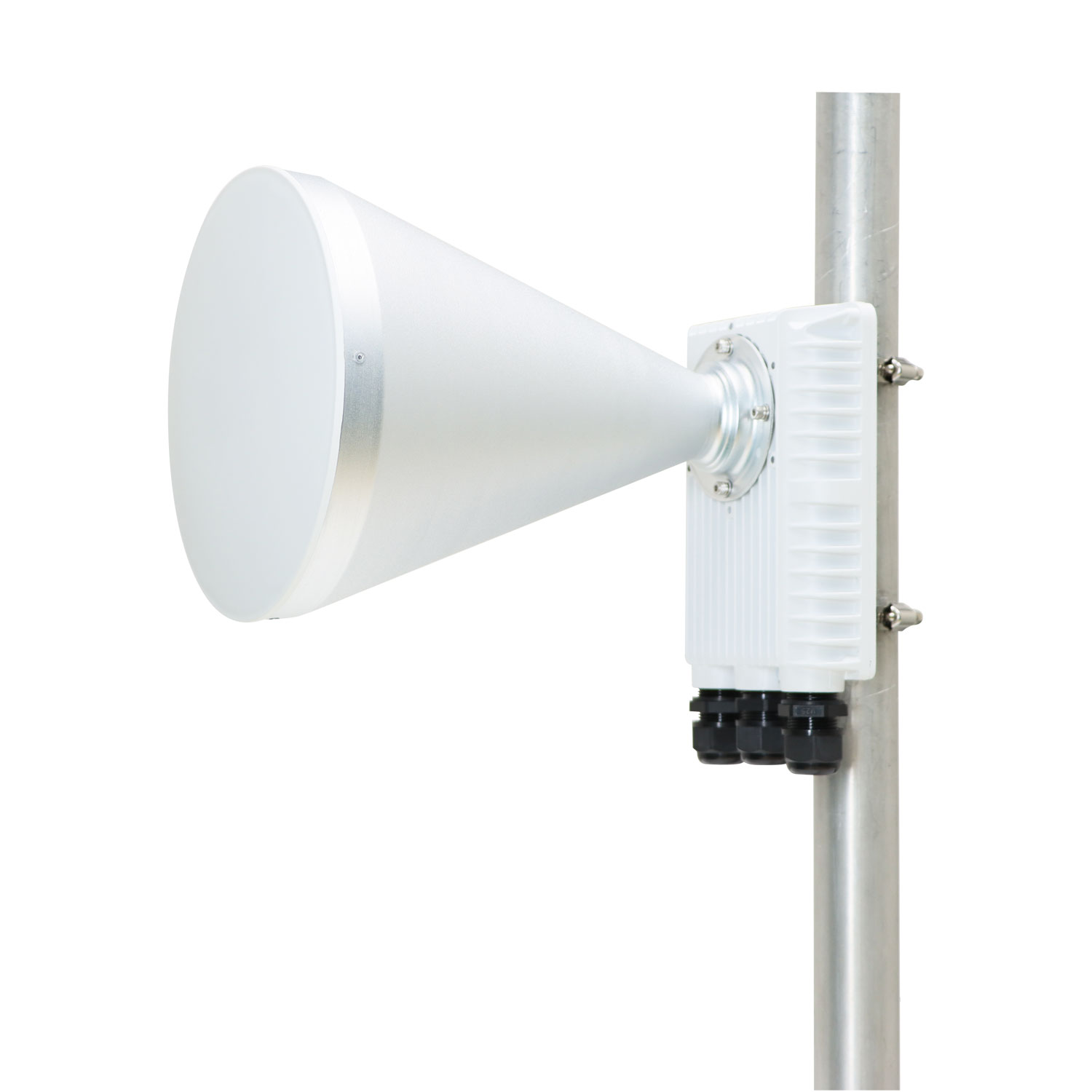

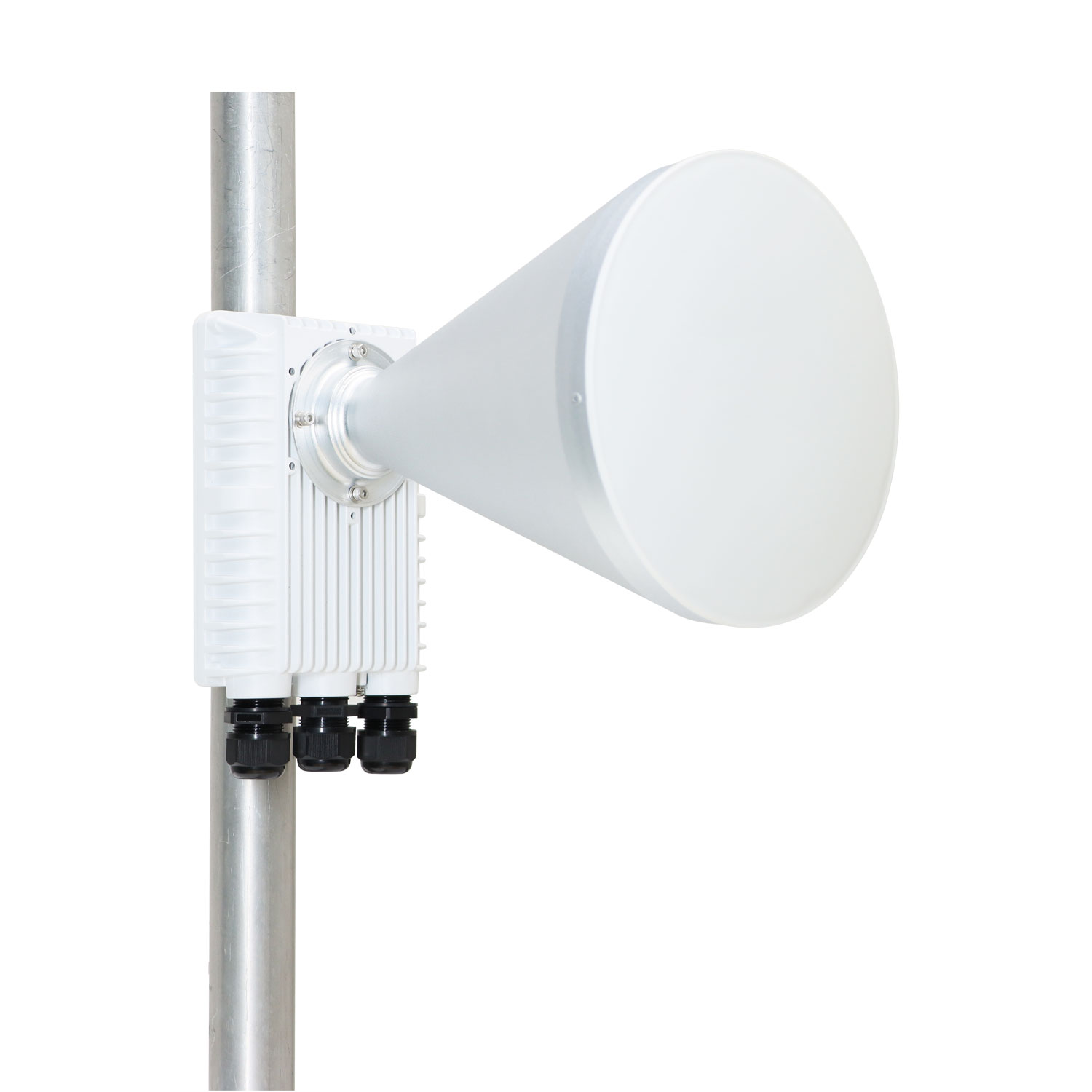

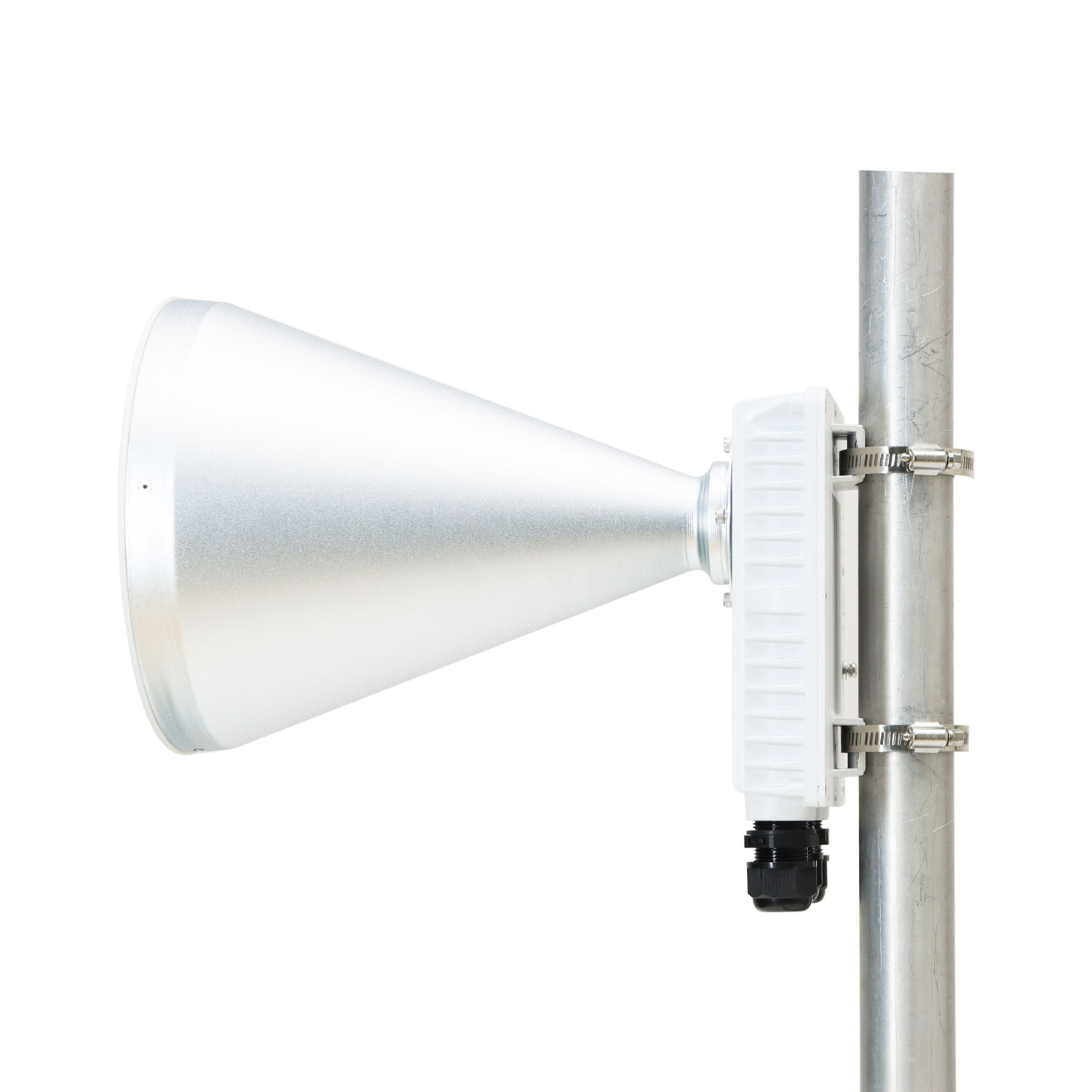

The kit with external 20dBi 30° isolation horn antenna. The tailored antenna radiation patterns spatially filters
Both in-band and out-of-band spurious RF emissions to increase the noise immunity of the X6.
This feature is especially important in an increasingly congested RF environment.
| Model | X5-H20 (AF) |
|
| CPU | Qualcomm Dual A53 @1.0 GHz |
|
| Operating Frequency | 5180-5825MHz (restricted by country of operation in Afghanistan) |
|
| Wireless Standards | Wi-Fi 6 |
|
| Channel Width | 20 MHz |
|
| Proprietary Physical Layer | 2x2MU-MIMO/OFDMA based on 802.11ax underlying technology |
|
| Networking interface | 1*2.5Gigabit Ethernet + 1*Gigabit |
|
| Transmit Power Range | Max 29dBm @20MHz |
|
| Antenna Frequency Range | 5.180-5825GHz |
|
| Antenna Gain | 20dBi Dual Linear |
|
| Antenna Beam width | E:30°/ H30° |
|
| LEDs | 1*Power, 1*SYS, 1*Wi-Fi |
|
| Power Supply | PoE 22-56V, or DC 12V |
|
| Power Consumption | <15W |
|
| Surge suppression | 8KV |
|
| Weatherproof Enclosure | IP67 |
|
| Antenna Size | Φ21*30 cm |
|
| Weight | 2kg |
|
| Temperature | -30°C to 60°C |
|
| Working mode | AP WDS、 Client WDS |
|
| Network Mode | Bridge/Router |
|
| Firewall | Port Forwarding ,DMZ,ACL Filtering |
|
| Wireless Security | WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE |
|
| VLAN | 802.1Q with 802.1p priority |
|
| DHCP | DHCP Server、 DHCP Client |
|
| Network Management | HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069 |
|
| QoS (Quality of Service) | Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast,multicast, and station priority |
|
| ARQ | yes |
|
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel |
MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain) |
MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11(1024 QAM-5/6) | MCS 0 (BPSK) to MCS 11(1024 QAM-5/6) |
