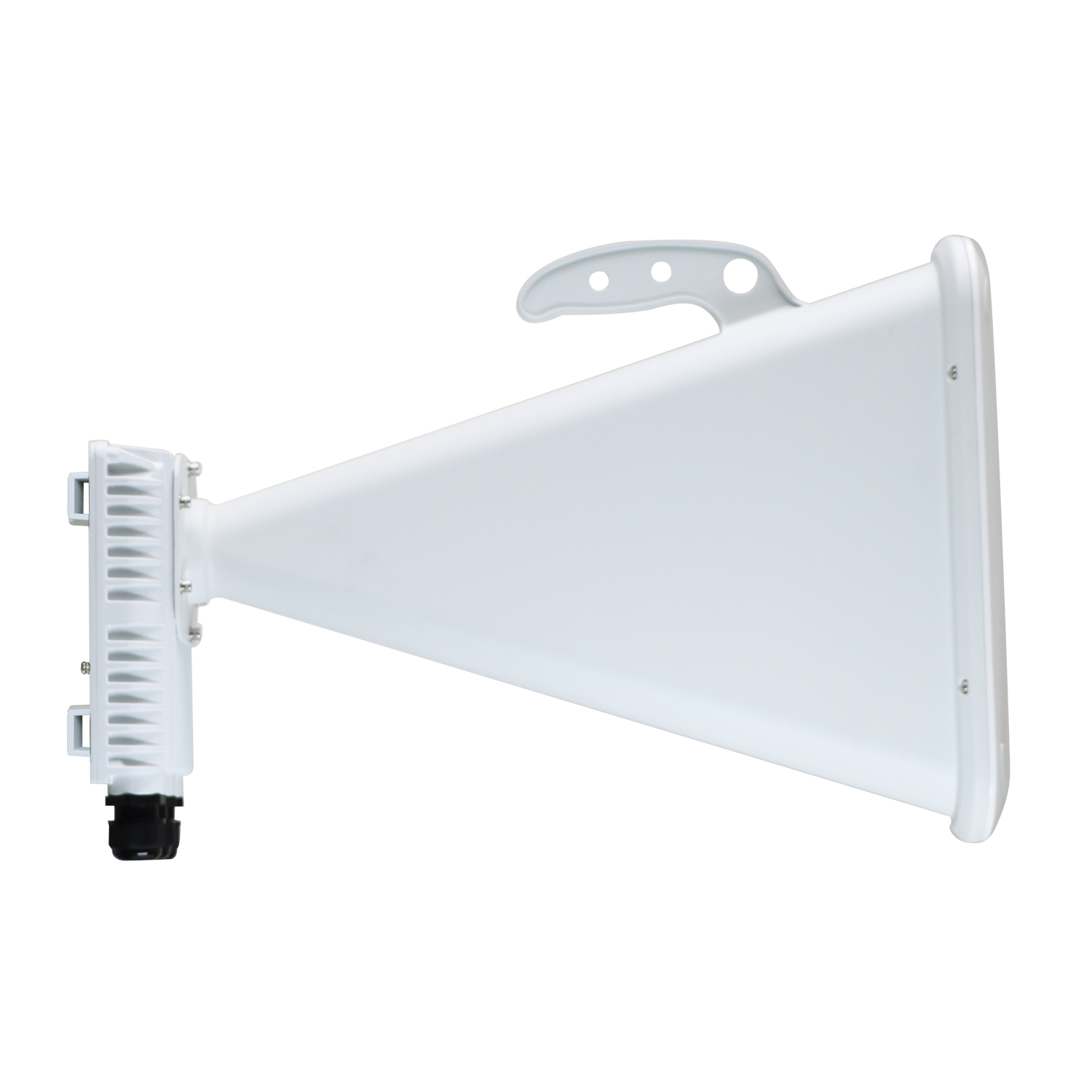

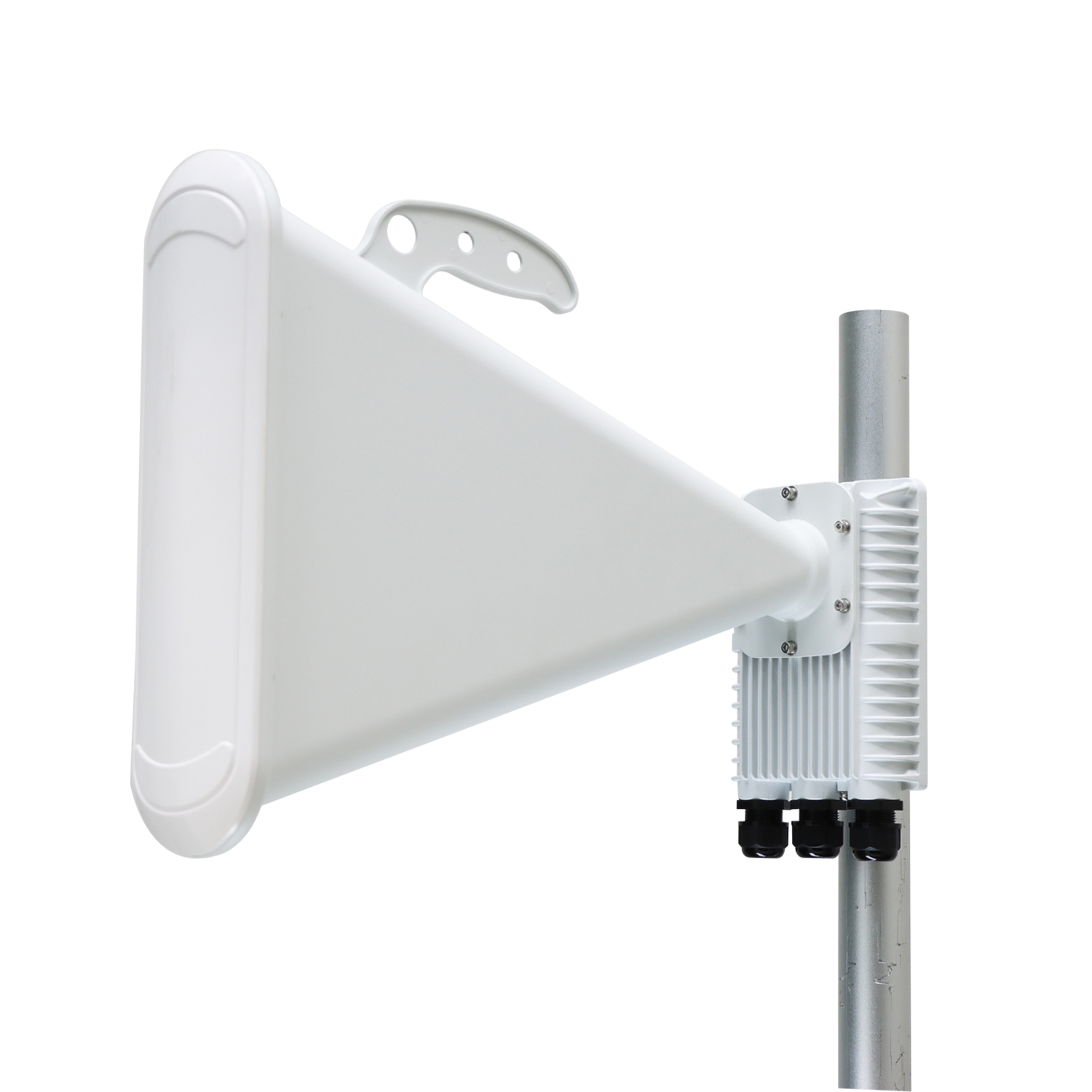

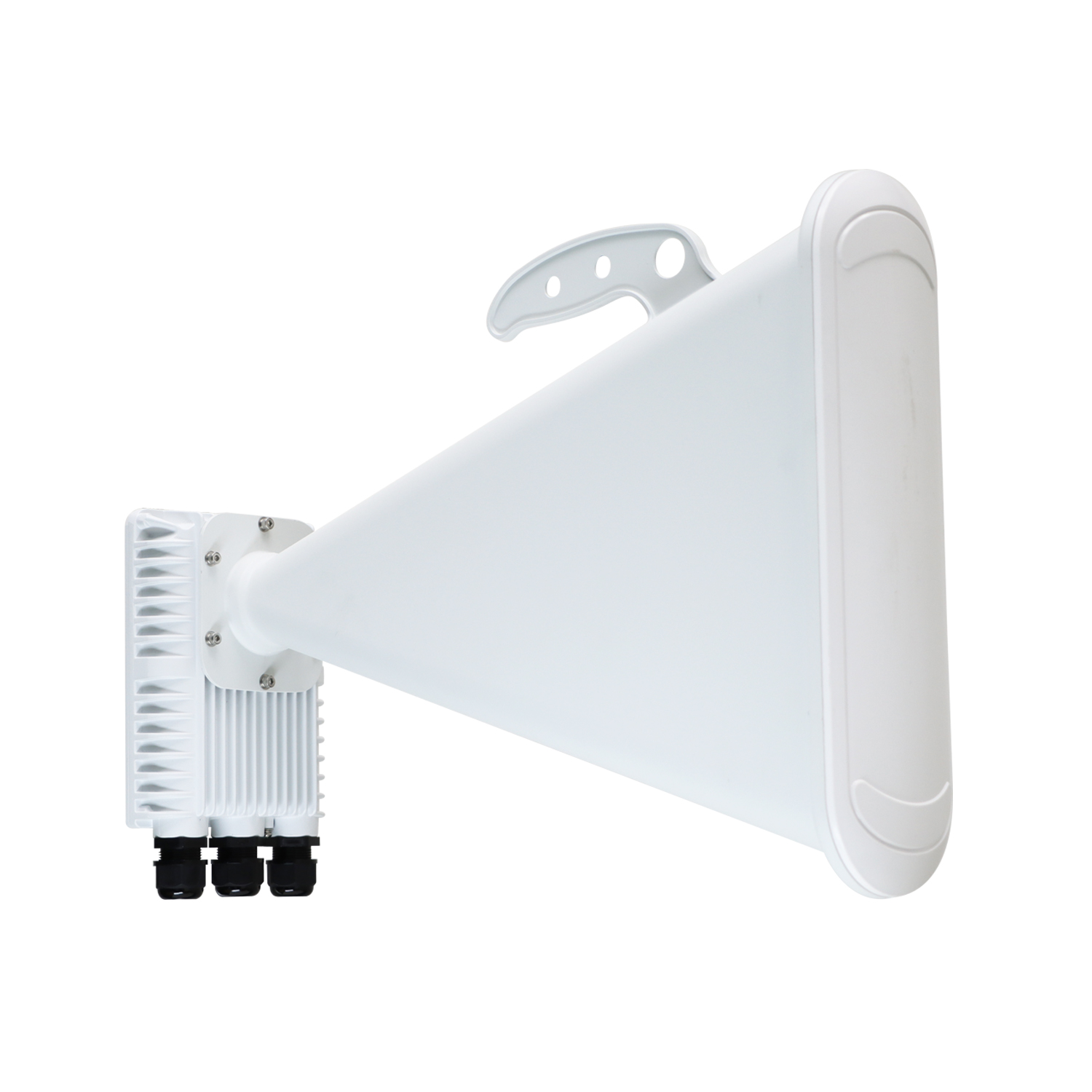

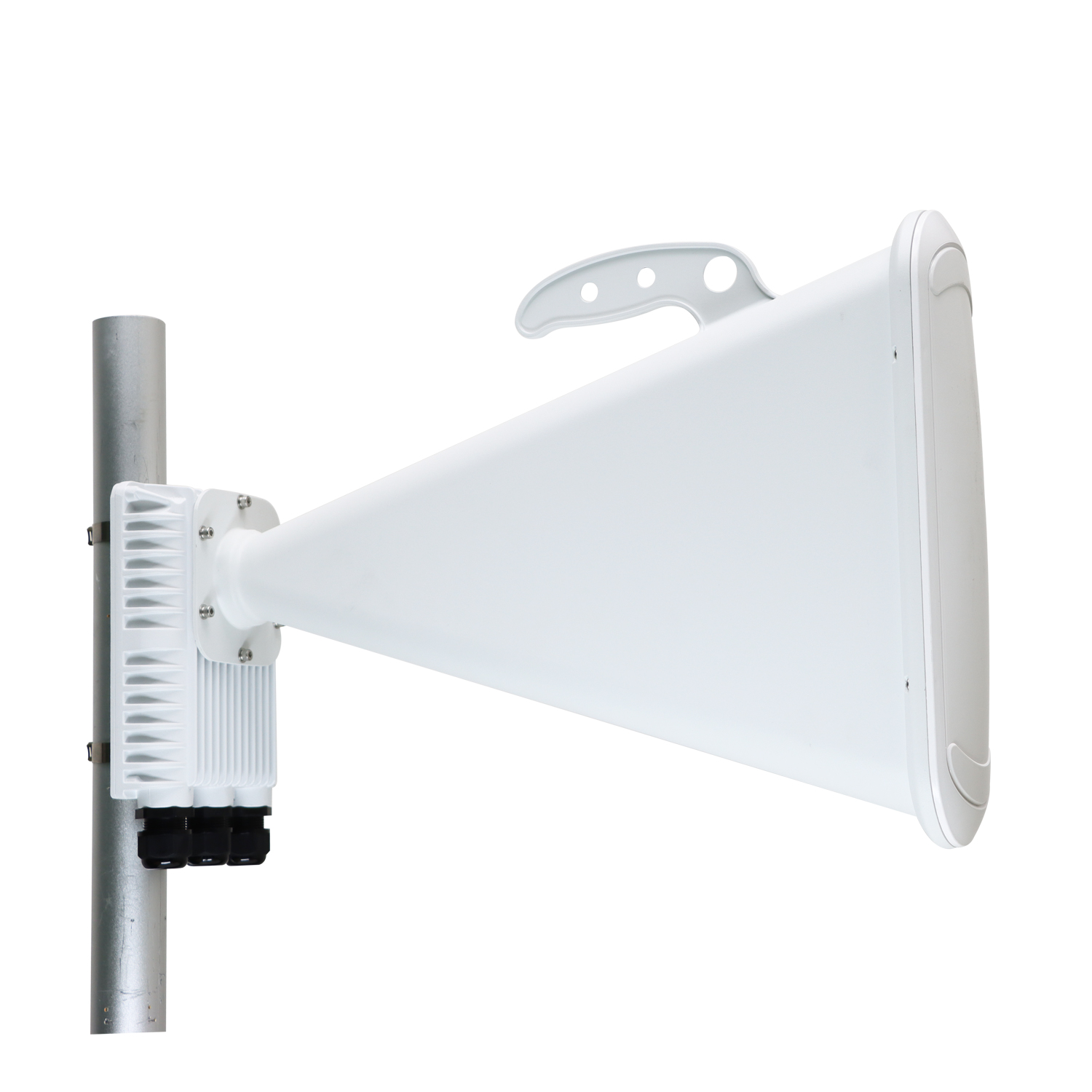

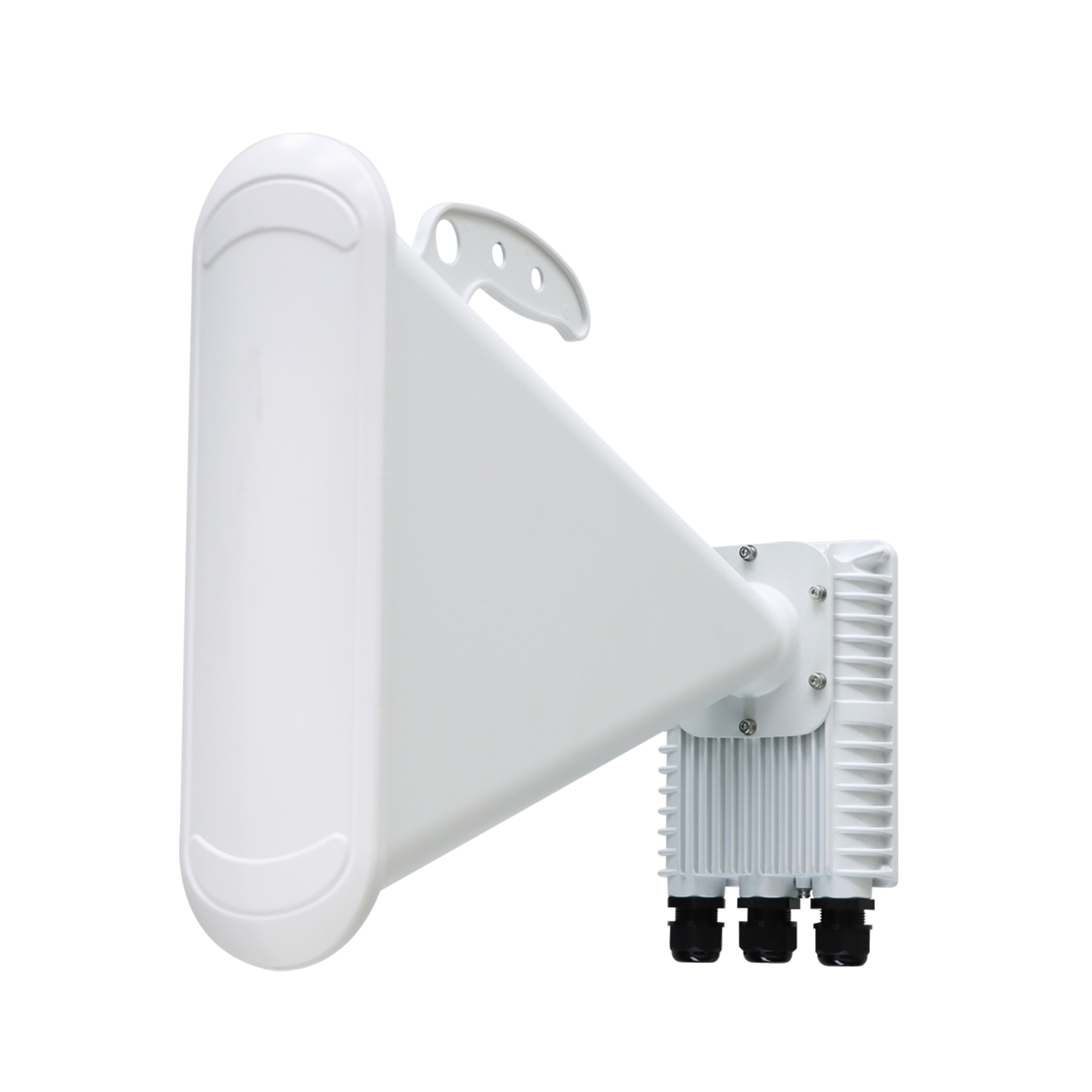

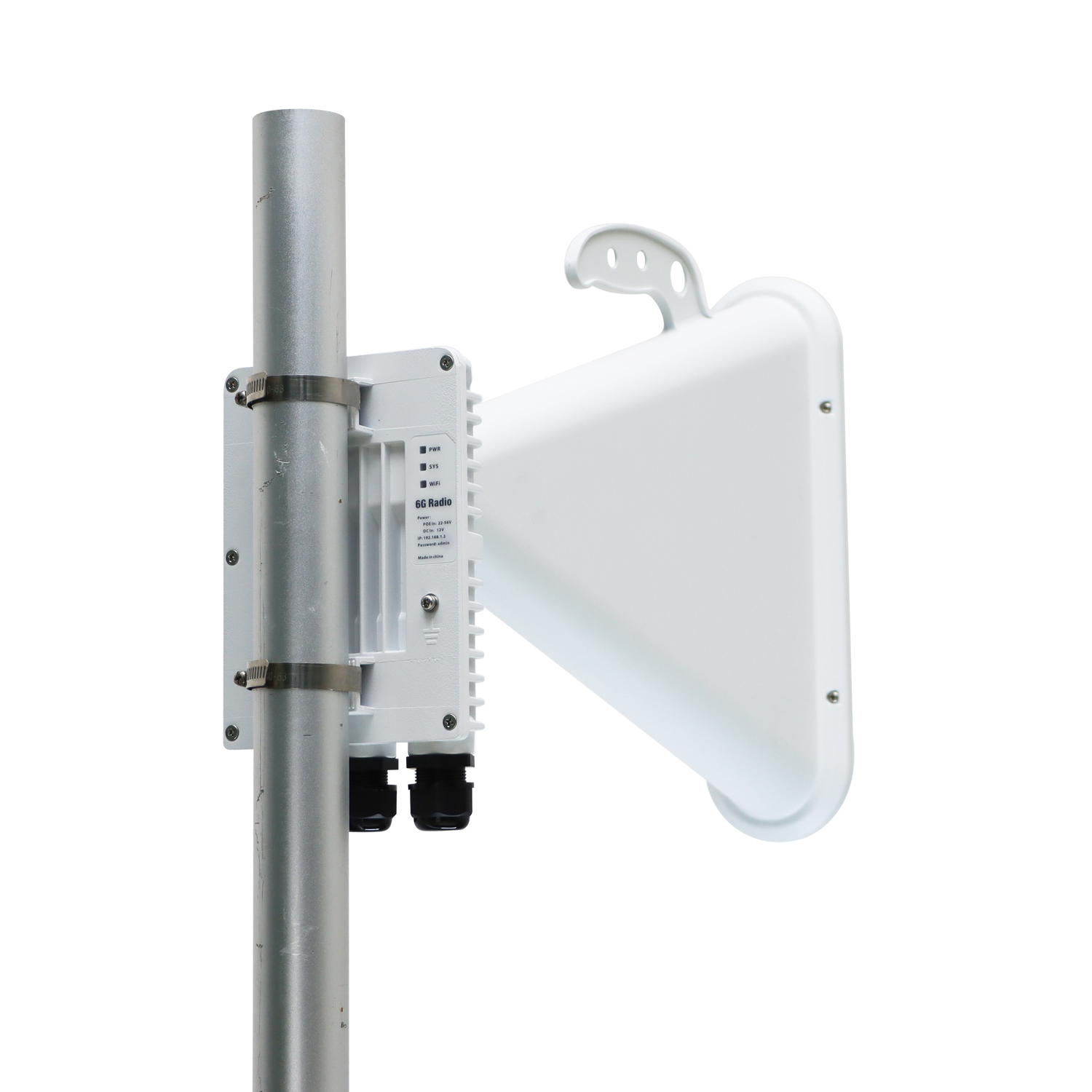

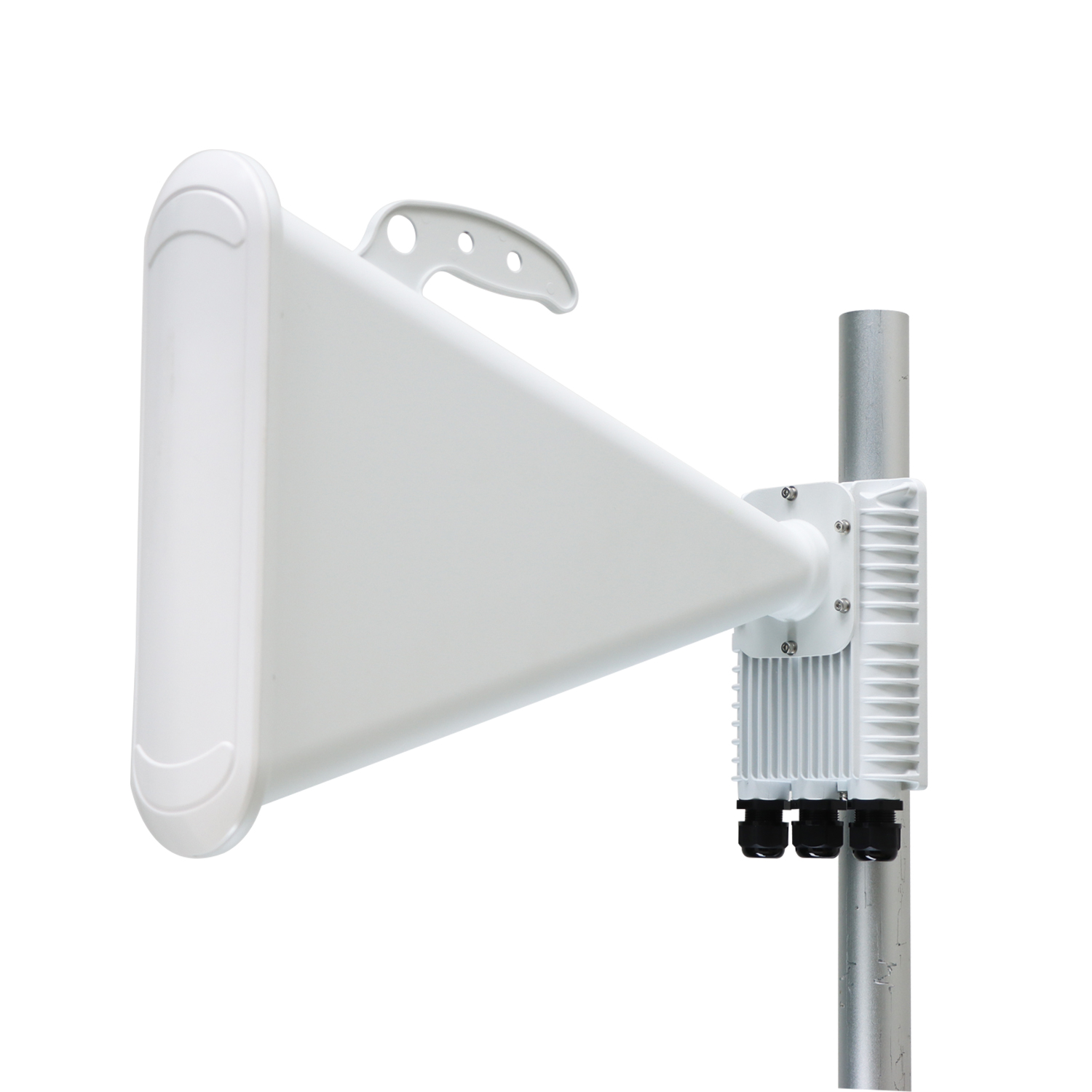

Model |
X6-H18-1pk(AF) |
|
CPU |
Qualcomm Dual A53 @1.0 GHz |
|
Wireless Standards |
Wi-Fi 6e |
|
Channel Width |
20|40|80|160 MHz |
|
Proprietary Physical Layer |
2x2 |
|
Networking interface |
1*2.5Gigabit Ethernet + 1*Gigabit |
|
Transmit Power Range |
Max 29dBm |
|
Antenna Frequency Range |
4.9-7.125GHz |
|
Antenna Gain |
18dBi Dual Linear |
|
Azimuth Beam Width -6 db |
90° |
|
Elevation Beam Width -6 db |
25° |
|
Antenna Materials |
Die-cast aluminum |
|
RF connections |
Internal |
|
LEDs |
1*Power, 1*SYS, 1*Wi-Fi |
|
Power Supply |
PoE 22-56V, or DC 12V |
|
Power Consumption |
<16W |
|
Surge suppression |
8KV |
|
Weatherproof Enclosure |
IP67 |
|
Antenna Size |
50*34*10cm |
|
Weight |
2.5kg |
|
Temperature |
-30°C to 60°C |
|
Working mode |
AP WDS、Client WDS |
|
Network Mode |
Bridge/Router |
|
Firewall |
Port Forwarding ,DMZ,ACL Filtering |
|
Wireless Security |
WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
|
VLAN |
802.1Q |
|
DHCP |
DHCP Server、DHCP Client |
|
SNMP |
√ |
|
TR069 |
√ |
|
PoE |
included |
