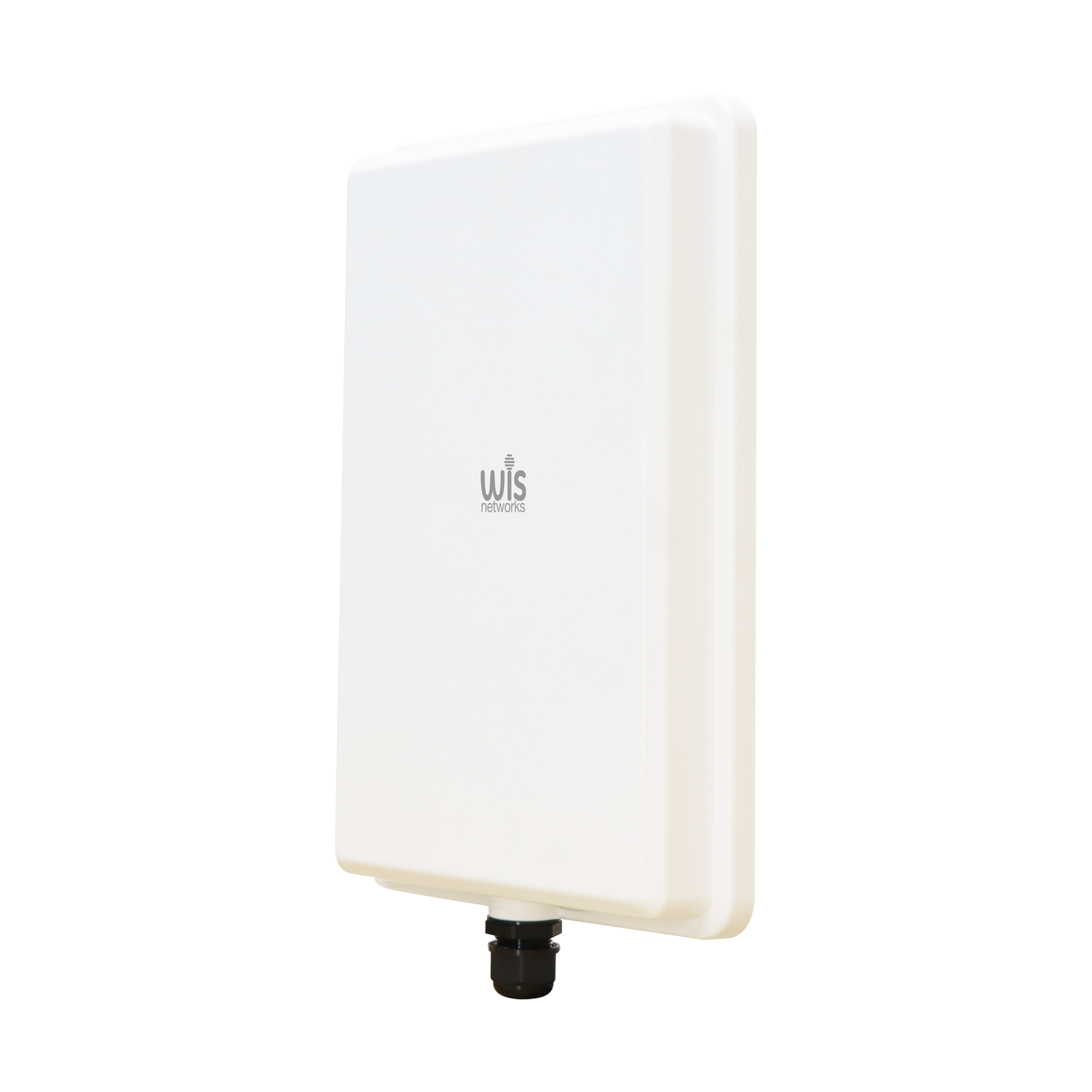

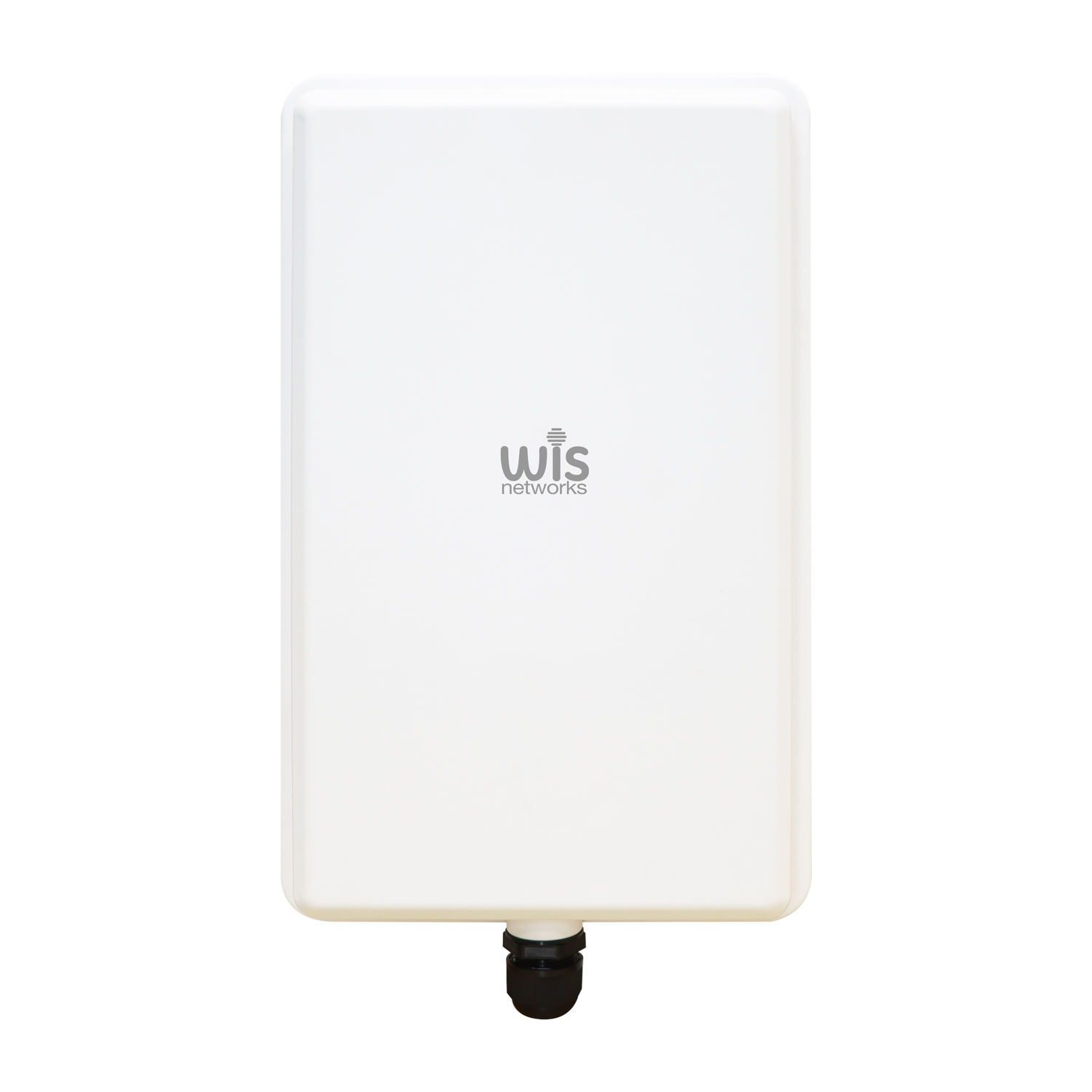

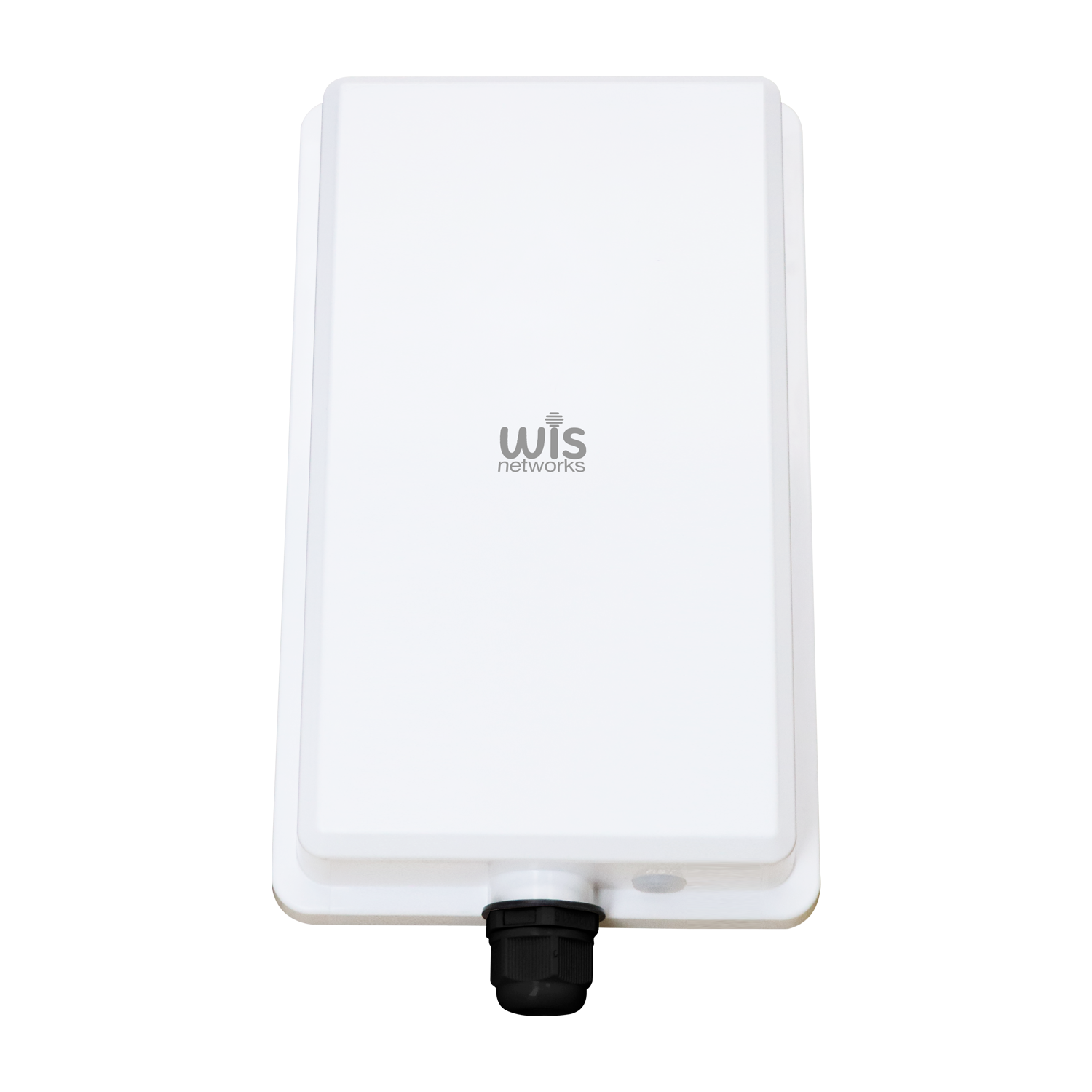

X621

Product Overview

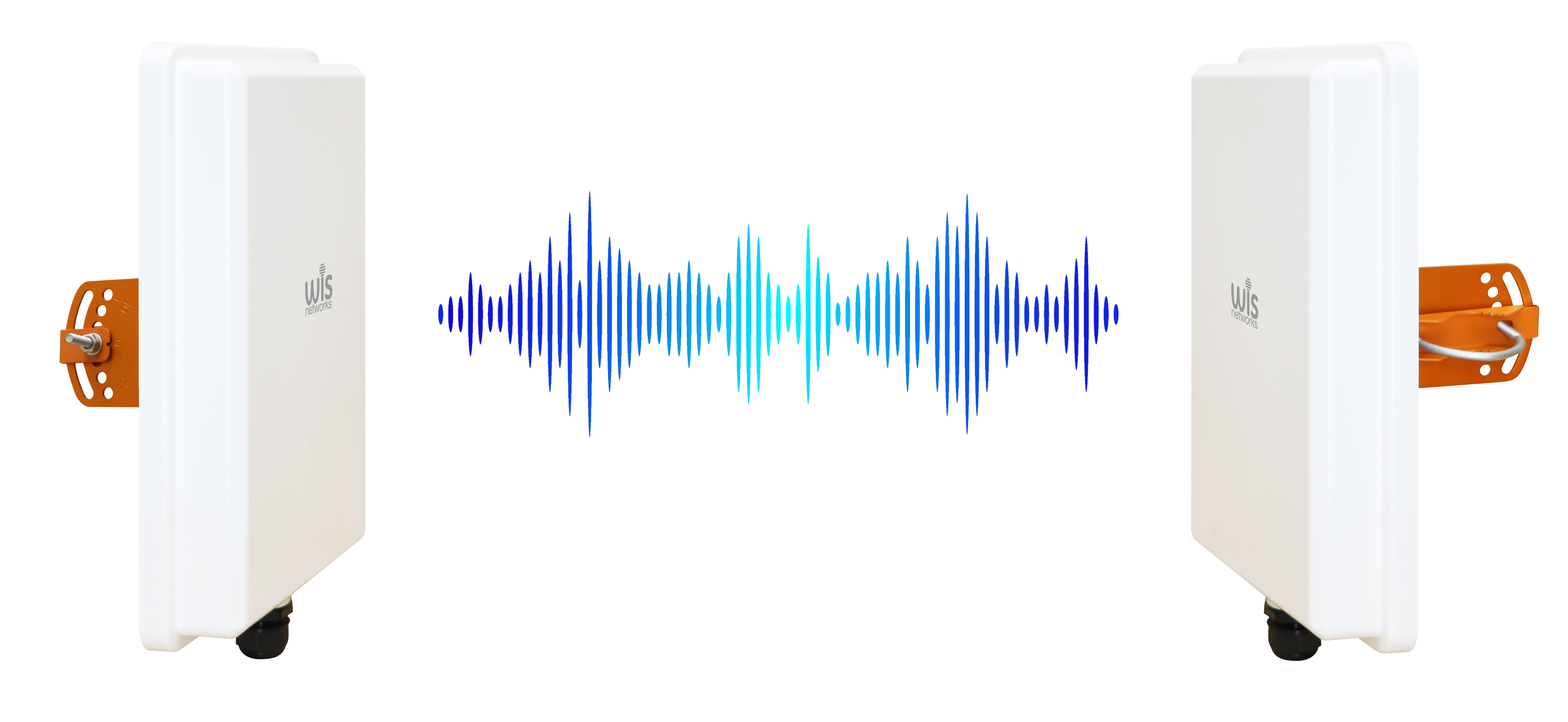

The X621 is dedicated to cost effective solutions for outdoor wireless networking applications. it is flexible and ideal for point-to-point, point-to-multi point and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes X621 an ideal choice for both business and home users.

High performance

● 21dBi dual-polarization directional antenna
● 26dBm output power
● Gigabit network port

Easy to install

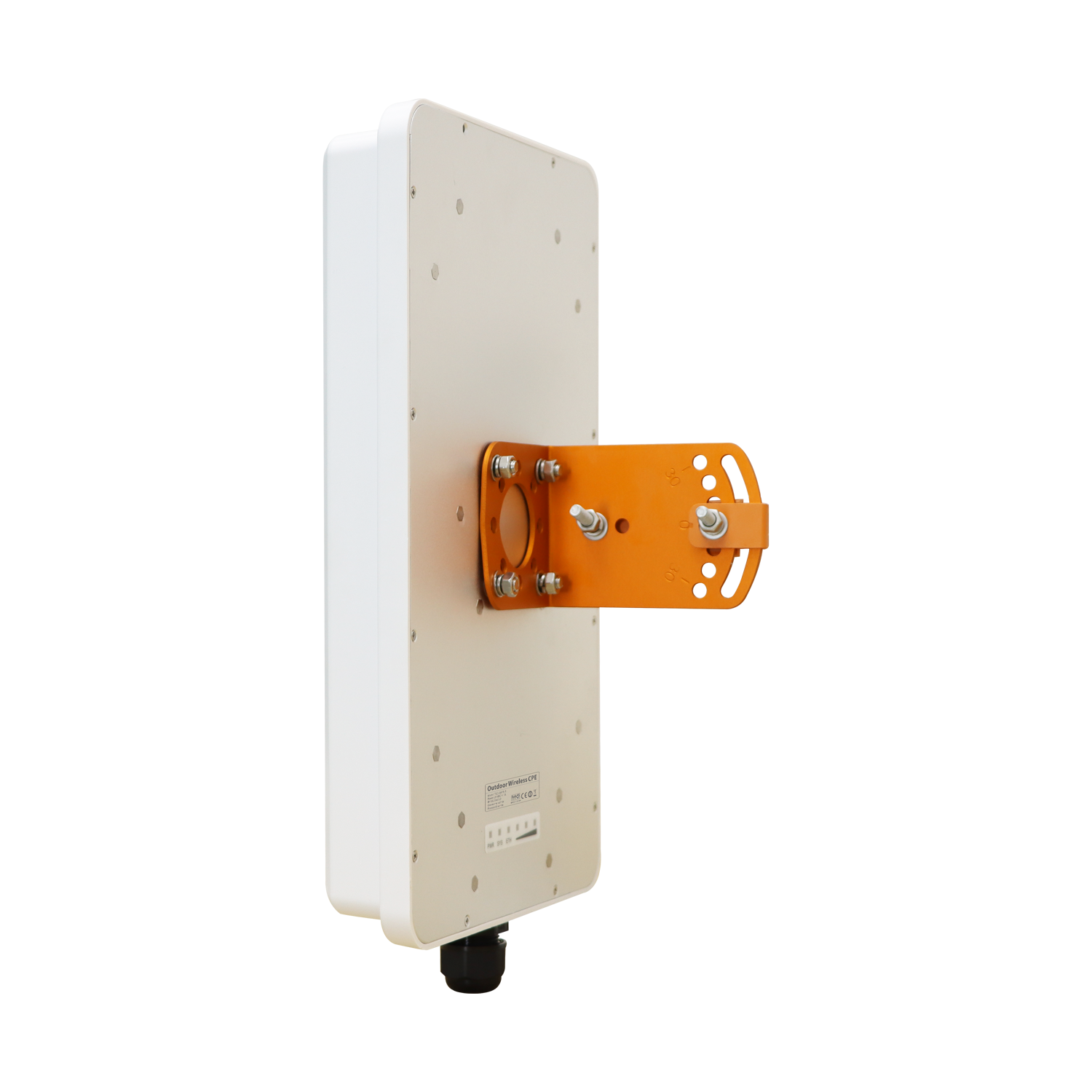

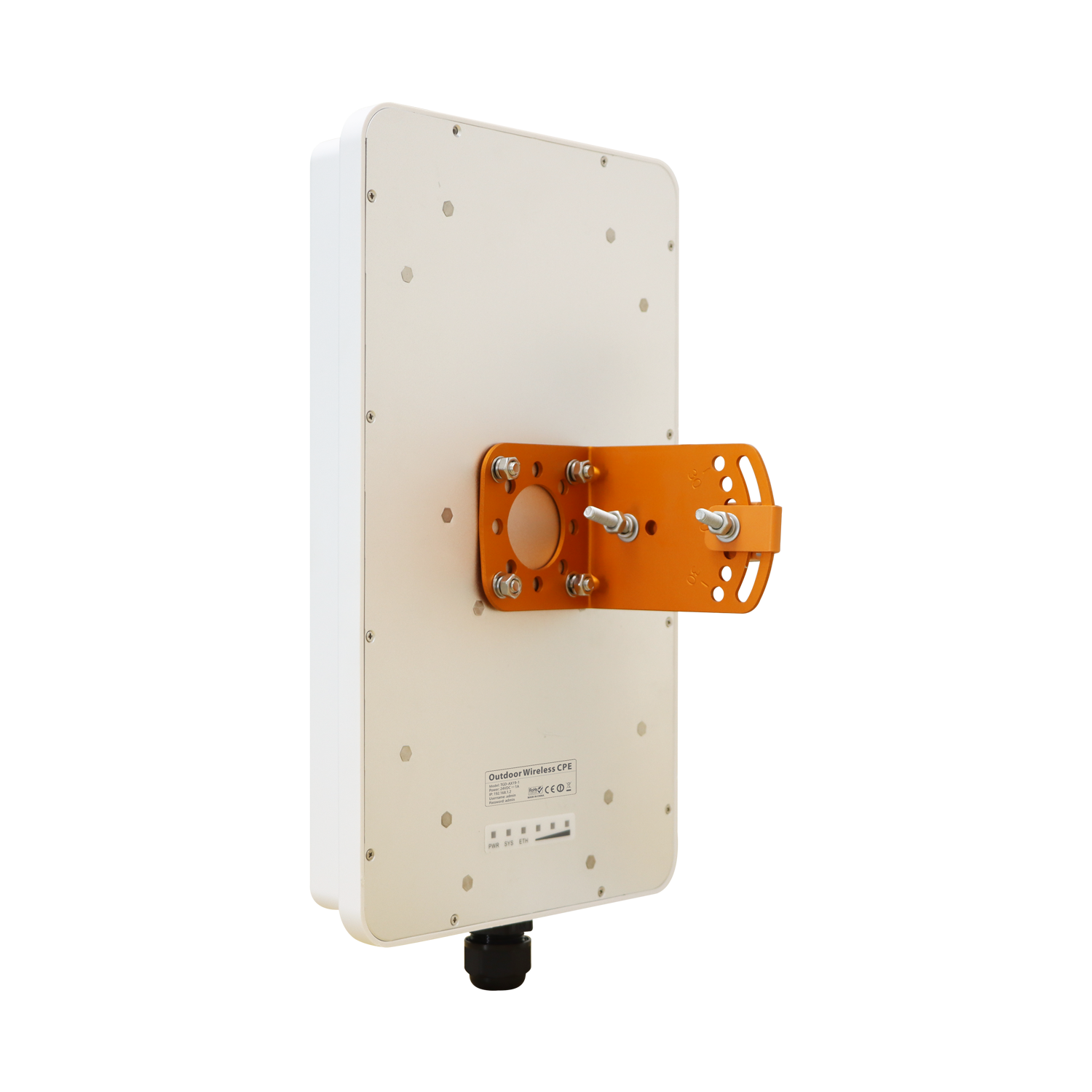

The equipment is equipped with an L-shaped bracket with adjustable Angle, which is fixed on the holding

pole through the U rod, which can easily adjust the Angle, facilitate the climbing operation and improve the construction efficiency.

Manageability

You can install a controller or WIS gateway in the local area network, and let the device connect to the
internet, you can easily understand the device in the line square.

PTP Throughput Test Data

Model	X621
CPU	Qualcomm Dual A53 @1.0 GHz
Operating Frequency	5.925-7.125GHz
Wireless Standards	WIFI 6e
Channel Width	20\|40\|80\|160 MHz
Proprietary Physical Layer	2x2MU-MIMO/OFDMA based on 802.11ax underlying technology
Networking interface	1*Gigabit
Transmit Power Range	Max 29dBm @20MHz , Max 27dBm@40/80MHz, Max26dBm@160MHz
Antenna Frequency Range	5.15-7.125GHz
Antenna Gain	21dBi Dual Linear
Antenna Beam width	E:25°/ H:15° E:25°/ H:15°
LEDs	1Power, 1SYS, 1LAN, 3Wi-Fi
Power Supply	PoE 22-56V
Power Consumption	<15W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Size	35021550mm
Weight	1.5kg
Temperature	-30°C to 55°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE
VLAN	802.1Q with 802.1p priority
DHCP	DHCP Server、DHCP Client
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069
QoS (Quality of Service)	Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority
ARQ	yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @160 MHz Channel	MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)

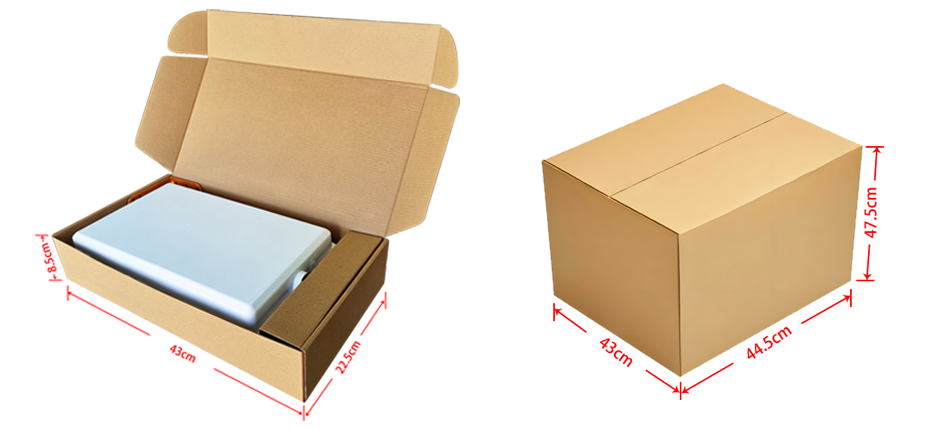

1.5kg 20.6kg

X621

Features

Specification

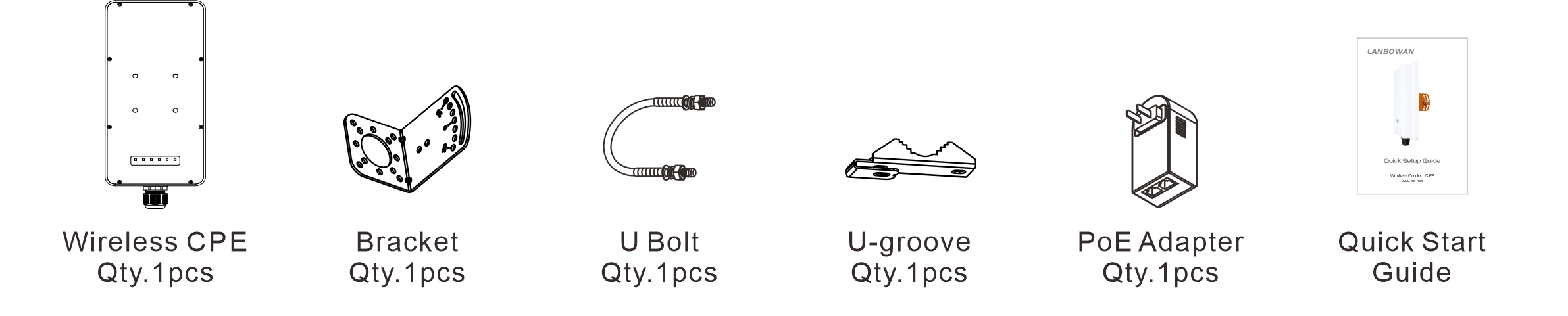

In The Box
